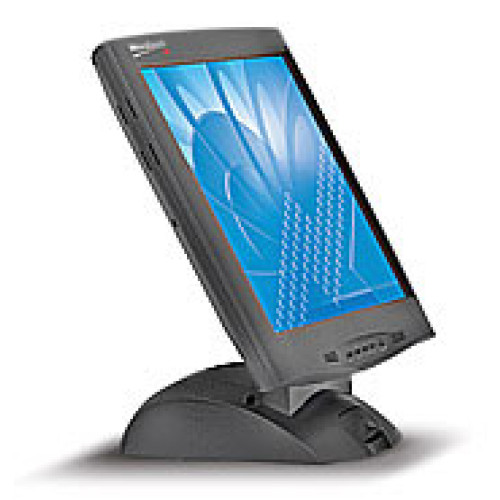

Photo of 3M Touch Systems 11-91378-225 3M Touch Systems logo

3M Touch Systems M170 FPD Touch Monitor

17" LCD, ClearTek II touch screens, with USB controller & multimedia speakers, black.

Touch screen Monitor

Add to cart to view shipping costs

Ships Today


3M Touch Systems M170 FPD Touch screen Monitor

The M170 FPD monitor is offered with proven touch screen technology from 3M Touch Systems. MicroTouch ClearTek capacitive touch technology provides accuracy and sensitivity to the user's touch while offering outstanding durability. ClearTek provides scratch resistance and contaminant-resistance to dirt, liquids, and harsh chemicals. MicroTouch Resistive 5-wire touch technology provides fast, accurate, and reliable touch when input flexibility is the most important consideration. All monitors ship with cable and power supply.

Full specifications (PDF)

Manufacturer part number: 11-91378-225

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: 3M
  • Manufacturer: 3M
  • Product Model: M1700SS

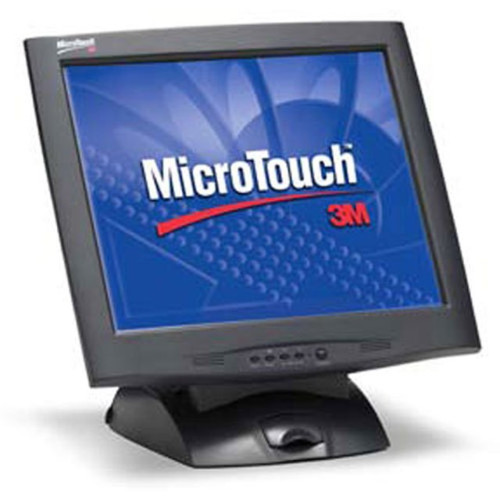

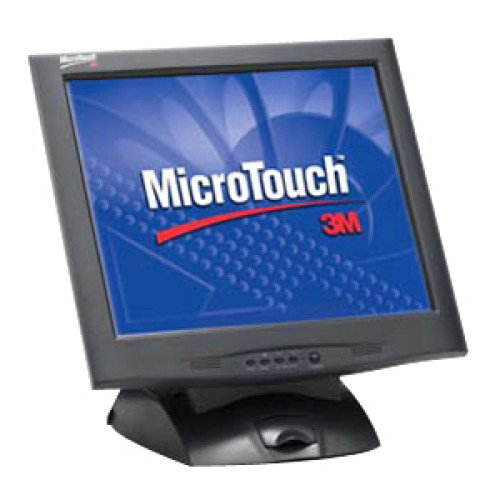

  • Product Name: MicroTouch M1700SS Touchscreen LCD Monitor
  • Product Line: MicroTouch

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: SXGA
  • Mount Type: Wall Mountable
  • Screen Size: 17"
  • Response Time: 9 ms

Physical Characteristics

  • Height: 16.3"
  • Width: 15.9"
  • Depth: 9.7"
  • Color: Black
  • Weight (Approximate): 18.96 lb


  • USB: Yes
  • DVI: Yes
  • VGA: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MicroTouch M1700SS Touchscreen LCD Monitor
    • Video Cable
    • Touch Cable
    • Power Supply
    • MicroTouch M1700SS Touchscreen LCD Monitor
    • Video Cable
    • Touch Cable
    • Power Supply


  • Brightness: 300 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Capacitive

Power Description

  • Input Voltage: 12 V DC


  • Limited Warranty: 3 Year
