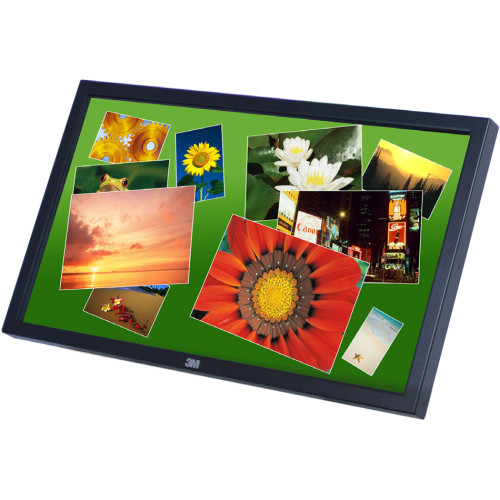

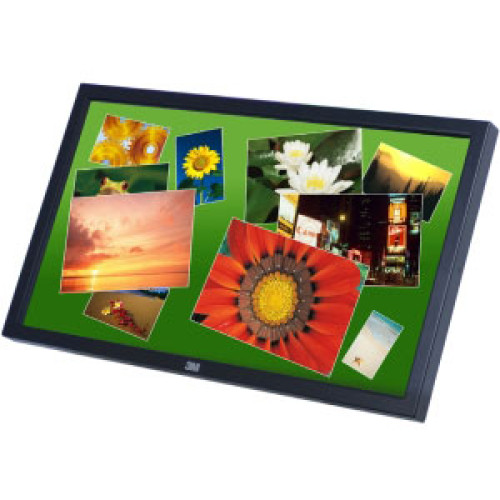

98-0003-3695-2 - 3M Touch Systems C3266PW Touch screen Monitor

The 3M-MicroTouch C3266PW display has been designed from the ground up to meet the unique requirements of a large format multi-touch display. Unlike televisions or digital signs, an interactive multi-touch display draws users in close proximity to the LCD. To maintain sharp image quality at close distances and brilliant content at any angle, the C3266PW display features a full HD 1080p resolution LCD with an ultra-wide 178 degree viewing angle. Even with dynamic content, the display maintains smooth motion transitions with the 120Hz refresh rate, which is two times faster than the industry standard of 60Hz. An advanced thermal management system is designed to keep the touch surface at a comfortable temperature for the user and to promote robust 24/7 performance of critical electronic components.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
98-0003-3695-2 C3266PW, 32" CHASSIS LCD MULTI-TOUCH DISPLAY, C3266PW, CAPACITIVE 40 FINGER MULTI-TOUCH, WINDOWS 7, 1920X1080
Ships in 3-5 Days
$4,475.00
Information:   |  Specifications  |
Accessories:   |  No accessories available  |

98-0003-3695-2 Details

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: 3M
  • Manufacturer: 3M
  • Product Model: C3266PW
  • Product Name: C3266PW Touchscreen LCD Monitor

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Screen Mode: Full HD
  • Screen Size: 32"
  • Response Time: 5 ms

Physical Characteristics

  • Height: 17.9"
  • Width: 29.9"
  • Depth: 2.6"

Interfaces/Ports

  • USB: Yes
  • HDMI: Yes
  • DVI: Yes
  • VGA: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • FCC-B
    • CE
    • TUV
    • CCC
    • FCC-B
    • CE
    • TUV
    • CCC
  • Platform Supported:
    • PC
    • Mac

Video

  • Standard Refresh Rate: 120 Hz
  • Brightness: 450 Nit
  • Color Supported: 1.06 Billion Colors
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1,300:1

Power Description

  • Operating Power Consumption: 100 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Multi-touch Screen: Yes
  • Touchscreen Type: Capacitive

Warranty

  • Limited Warranty: 1 Year

The 3M Touch Systems 98-0003-3695-2 is also known as 3M MicroTouch MCT-98000336952 or 98000336952 .
