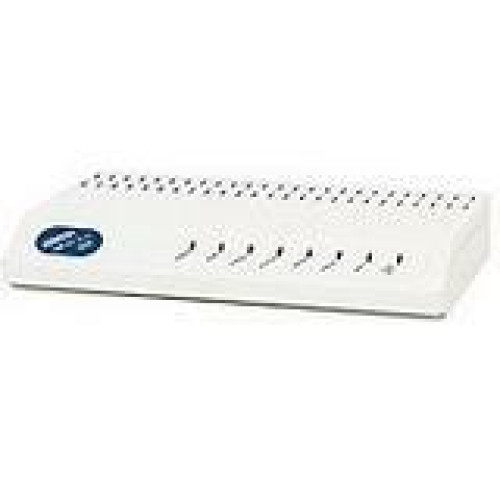

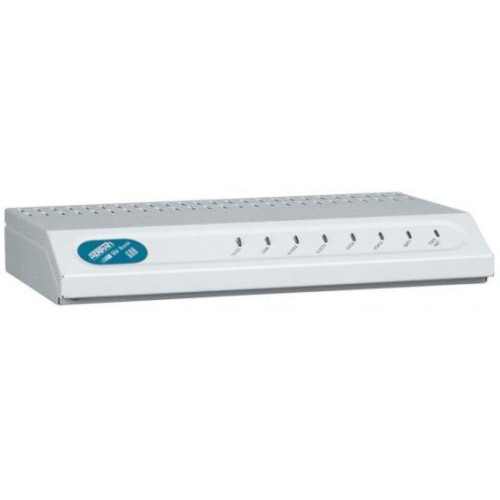

Adtran Total Access 624 Data Networking
Part #: 4203624L1#ATM | SKU: ADT40146

The Total Access 624 (T1 TDM) is a fixed-port Integrated Access Device (IAD) providing a single T1 network interface, 24 analog FXS interfaces, V.35 serial port and 10/100Base-T IP router.

Adtran Total Access 624 Data Networking

Part Details: Total Access 624 T1 ATM
MSRP: $1,650.00 Price: $1,419.04

Additional Information

Manufacturer Adtran
Model Name Total Access 624

General Information

  • Product Type: Router
  • Product Series: 600
  • Brand Name: Adtran
  • Manufacturer: Adtran
  • Product Model: 624
  • Product Name: Total Access 624 T1 ATM Gateway
  • Product Line: Total Access

Physical Characteristics

  • Height: 1.8"
  • Width: 17"
  • Depth: 8.5"
  • Form Factor:
    • Rack-mountable
    • Wall Mountable
    • Desktop
  • Weight (Approximate): 7 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 1
  • Total Number of Ports: 2
  • Management Port: Yes
  • Number of Serial Ports: 1
  • Number of RJ-48 Ports: 1

Other

  • Certifications & Standards:
    • RFC 1483
    • RFC 2364
    • IEEE 802.3
    • IEEE 802.1D
    • G.165
    • G.168
    • G.711
    • G.726
    • Agency Approvals:
    • EN55022
    • EN50082-1
    • EN60950
    • ETSI 300-386-2
    • UL 1950
    • CUL
    • FCC Part 15 (Class A)
    • FCC Part 68
  • Additional Information:
    • Seamless voice and data integration over T1 or packet-based architectures
    • ATM and nextgeneration packet support
    • Integral IP router for data support and Internet access
    • Optional DSX-1 for PBX connectivity
    • Rugged metal case
    • Optional battery backup
    • Multiprotocol over ATM
    • QoS Support: VBR-rt (voice), UBR (data)
    • Echo cancellation, 8ms echo tail
    • Idle channel suppression
    • Copper Mountain CE fragmentation support
    • FRF.5 and FRF.8 support (V.35)
    • Modes: FXS Loop Start, Ground Start
    • Assured Dialtone Lifeline POTS port
    • Ringing: unbalanced, 20 REN, continuous, output ring voltage 105 Vrms, nominal
    • Framing: D4 (SF)/ESF, AT&T 54016, ANSI T1.403
    • Line Code: AMI/B8ZS
    • Voice Codes: PCM, 32k ADPCM

Management & Protocols

  • Security Features:
    • PAP, CHAP, EAP and Radius
    • NAT with multi-point to single-point
    • Future support for NAT multi-point to multi-point
    • PAT with DHCP
    • Filtering (Pattern, IP, Bridge)
    • Password protection

Network & Communication

  • Network Technology:
    • 10/100Base-TX
    • T1

Warranty

  • Limited Warranty: 10 Year

Media & Performance

  • Carrier Supported: T-carrier

Power Description

  • Input Voltage: 110 V AC
