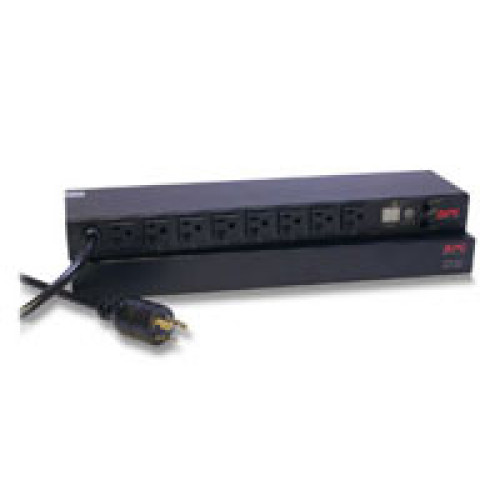

AR3140 - APC Rack PDU Power Device

APC Switched Rack PDU, Input: 200V, 208V, Input Connections: NEMA L6-30P, Cord Length: 10 feet (3.05 meters), Output: 200V, 208V, Output Connections: IEC 320 C13, IEC 320 C19

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
AR3140 NetShelter SX 42U, 750 mm Wide x 1070 mm Deep Enclosure with Sides Ships Today $2,200.31
Information:   |  APC's Rack PDU page  |
Accessories:   |  No accessories available  |

AR3140 Details

General Information

  • Product Type: Rack Cabinet
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: NetShelter SX Networking Enclosure Rack Cabinet
  • Product Line: NetShelter

Physical Characteristics

  • Height: 78.4"
  • Width: 29.5"
  • Depth: 42.1"
  • Color: Black
  • Rack Width: 19"
  • Rack Height: 42U
  • Weight (Approximate): 343.09 lb
  • Rail Material Gauge: 14
  • Door Material Gauge: 16
  • Roof/Top Material Gauge: 18
  • Side Panel Material Gauge: 18
  • Static/Stationary Weight Capacity: 3000 lb
  • Dynamic/Rolling Weight Capacity: 2250 lb
  • Units Per Pallet: 1

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • NetShelter SX Networking Enclosure Rack Cabinet
    • Baying hardware
    • Documentation CD
    • Key(s)
    • Keyed-alike doors and side panels
    • Leveling feet
    • Mounting Hardware
    • Pre-installed casters
    • Side Panels
    • User Manual
    • Vertical cable managers
    • NetShelter SX Networking Enclosure Rack Cabinet
    • Baying hardware
    • Documentation CD
    • Key(s)
    • Keyed-alike doors and side panels
    • Leveling feet
    • Mounting Hardware
    • Pre-installed casters
    • Side Panels
    • User Manual
    • Vertical cable managers
  • Additional Information: Standard Warranty: 5 Year Repair/Replace

Warranty

  • Limited Warranty: 5 Year

The APC AR3140 is also known as American Power Conversion APC-AR3140 .
