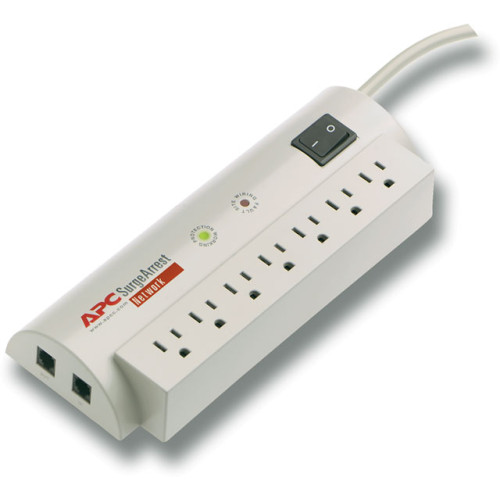

APC Surge Arrest Series Surge Protector
Part #: PH8T3 | SKU: APC27061

Unexpected changes in voltage from lightning and power surges can ruin your electronic equipment and cause loss of work. The Surge Arrest Series is a cost effective solution against voltage spikes and bad power. Suited for the small and home office, the Surge Arrest Series functions with PCs, printers, and modems.

APC Surge Arrest Series Surge Protector

Part Details: Number of Outlets: 8, Nominal Input Voltage: 120V, Surge energy rating: 1750 Joules

Additional Information

Manufacturer APC
Model Name Surge Arrest Series

General Information

  • Product Type: Surge Suppressor/Protector
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: SurgeArrest Home/Office 8 Outlet with Tel2/Splitter Protection
  • Product Line: SurgeArrest

Technical Information

  • Receptacles: 8 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Dataline Protection: RJ-11 Modem/Fax/DSL

Physical Characteristics

  • Height: 11.3"
  • Width: 5.8"
  • Depth: 1.5"
  • Power Cord/Cable: 8 ft
  • Weight (Approximate): 1.89 lb
  • Color: Charcoal

Other

  • Package Contents:
    • SurgeArrest Home/Office PH8T3
    • 6ft High Speed Internet Cable
    • Cord Management Rails
    • User Manual
    • SurgeArrest Home/Office PH8T3
    • 6ft High Speed Internet Cable
    • Cord Management Rails
    • User Manual
  • Certifications & Standards:
    • CSA
    • UL 1363
    • UL 1449 (TVSS Rating 330 V)
  • Additional Information:
    • 180 degree Rotating Cord Retainer
    • Adjustable Cable Management
    • Always on Outlets
    • Catastrophic Event Protection
    • Cord Management
    • Fail Safe Mode
    • IEEE let-through rating and UL 1449 compliance
    • Phone Line Splitter
    • Plug Activated Safety Shutters
    • Receptacle Shock Safety Shutters
    • Resettable circuit breaker
    • Right Angle Plug
    • Transformer Block Spacing

Environmental Conditions

  • Altitude:
    • 0 ft to 10000 ft Operating
    • 0 ft to 50000 ft Storage
  • Humidity:
    • 0% to 95% Relative Humidity Operating
    • 0% to 95% Non-condensing Relative Humidity Storage
  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • 5°F (-15°C) to 113°F (45°C) Storage

Power Description

  • Current: 15 A Line Current/40 kA Surge Current
  • Surge Energy Rating: 1750 J
  • Input Voltage: 120 V AC
  • Output Voltage: 120 V AC
  • Filtering: EMI/RFI Noise rejection (100 kHz to 10 mHz) 70 dB
  • Frequency: 50 Hz or 60 Hz

Controls/Indicators

  • Status Indicators:
    • 1 x Building wiring fault indicator
    • 1 x Protection working indicator

Warranty

  • Limited Warranty: Lifetime
