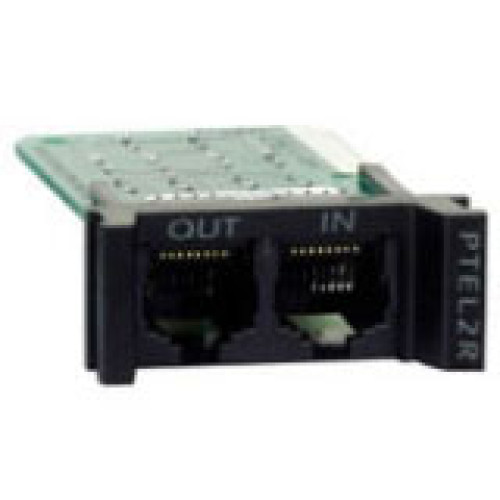

PTEL2R - APC Parts Surge Protector

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
PTEL2R PTEL2R Surge Protection Module, PTEL2R Surge Protestion Module (Replaceable, Rackmount, 1U, 2 2 Line Telco Surge Protection) Ships Today $24.78

PTEL2R Details

General Information

  • Product Type: Surge Suppressor/Protector
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Replaceable, Rackmount, 1U, 2 Line Telco Surge Protection Module
  • Product Line: ProtectNet

Technical Information

  • Dataline Protection:
    • RJ-11 Modem/Fax/DSL
    • RJ-45 Modem/Fax/DSL

Physical Characteristics

  • Height: 1.7"
  • Width: 0.7"
  • Depth: 2.7"
  • Weight (Approximate): 0.71 oz
  • Color: Black
  • Form Factor: 1U Rack-mountable

Other

  • Package Contents:
    • REPLACEABLE, RACKMOUNT, 1U, 2 LINE TELCO SURGE PROTECTION MODULE
    • User Manual
    • REPLACEABLE, RACKMOUNT, 1U, 2 LINE TELCO SURGE PROTECTION MODULE
    • User Manual
  • Certifications & Standards:
    • cUL Recognized
    • CE
    • UL 497A
  • Additional Information:
    • Replaceable surge protection modules
    • Surge Response Time: 1 ns
    • Data Lines Protected (multi-line only):
    • 1-4 (RJ-11)
    • 3-6 (RJ-45)

Environmental Conditions

  • Altitude:
    • 0 ft to 10000 ft Operating
    • 0 ft to 10000 ft Storage
  • Humidity:
    • 0% to 95% Relative Humidity Operating
    • 0% to 95% Non-condensing Relative Humidity Storage
  • Temperature:
    • 5°F (-15°C) to 113°F (45°C) Operating
    • 5°F (-15°C) to 113°F (45°C) Storage

Power Description

  • Current: 250 A Surge Current
  • Filtering: EMI/RFI Noise rejection (100 kHz to 10 mHz) 0 dB

Warranty

  • Limited Warranty: Lifetime
  • Parts Warranty/Labor: Lifetime

The APC PTEL2R is also known as American Power Conversion APC-PTEL2R .
