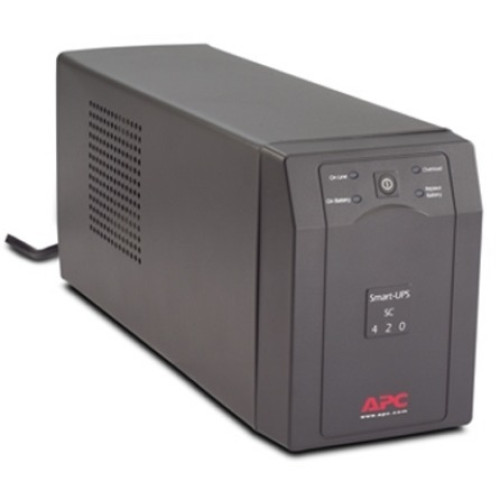

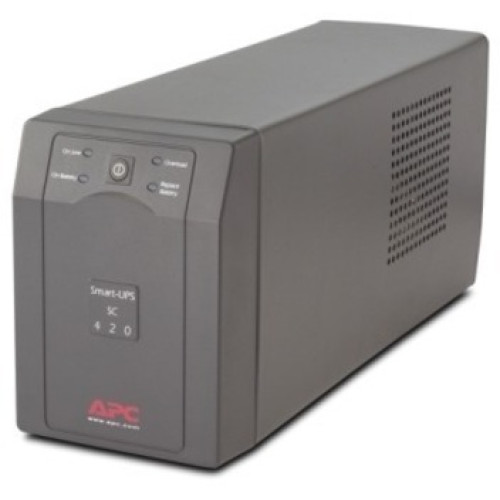

SC420 - APC Smart-UPS UPS

The Smart-UPS lets you keep your data safe even when you're not there! The PowerChute plus software and the uninterruptible power supply (UPS) allow for your data to be properly saved and then your network operation system to be shut before the battery is discharged. A proactive defense against data loss.

Part # Description Availability Price Order
SC420 Smart-UPS, Output Power Capacity: 260 Watts / 420 VA, Nominal Output Voltage: 120V, Typical recharge time: 5 hour (s), Interface Port (s): DB-9 RS-232. Color: gray. Ships Today $139.07
Information:   |  No specifications available  |
Accessories:   |  No accessories available  |

SC420 Details

General Information

  • Product Type: Line-interactive UPS
  • Product Series: SC
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS SC 420VA
  • Product Line: Smart-UPS

Technical Information

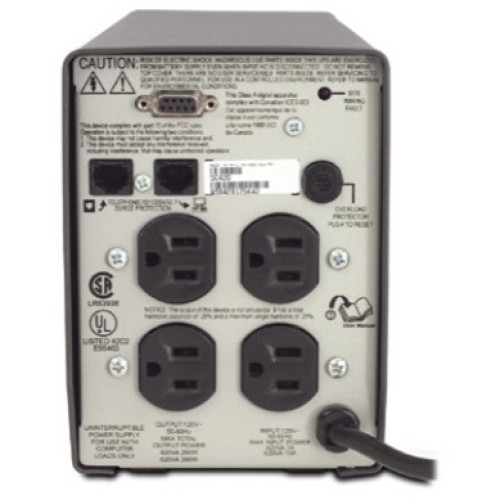

  • Receptacles: 4 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Cord Length: 6 ft
  • Dataline Protection: RJ-45
  • Emergency Power OFF: Optional

Physical Characteristics

  • Height: 7"
  • Width: 5"
  • Depth: 15"
  • Form Factor: Mini-tower
  • Weight (Approximate): 22 lb
  • Color: Gray

Interfaces/Ports

  • Serial Port: Yes

Other

  • Package Contents:
    • Smart-UPS SC 420VA
    • CD with software
    • RS-232 cable
    • User Manual
    • Smart-UPS SC 420VA
    • CD with software
    • RS-232 cable
    • User Manual
  • Certifications & Standards:
    • CSA
    • FCC Part 15 Class B
    • NOM
    • UL 1778
    • UL 1449
  • Additional Information:
    • Automatic restart of loads after UPS shutdown
    • Boost and Trim Automatic Voltage Regulation (AVR)
    • Cold-start capable
    • Generator Compatible

Battery Information

  • Backup/Run Time (Half Load): 13.50 Minute
  • Backup/Run Time (Full Load): 5.50 Minute
  • Battery Characteristics: Spill-proof, Maintenance-free
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Controls/Indicators

  • Status Indicators:
    • On Line
    • On Battery
    • Replace Battery
    • Overload

Management

  • Battery Management: Intelligent Battery Management
  • Alarm:
    • On Battery
    • Low Battery

Power Description

  • Load Capacity (VA): 420 VA
  • Load Capacity (Watt): 260 W
  • Surge Energy Rating: 412 J

Environmental Conditions

  • Temperature: 113°F (45°C)
  • Thermal Dissipation: 50 BTU/h

Warranty

  • Limited Warranty: 2 Year

The APC SC420 is also known as American Power Conversion APC-SC420 .
