APC Back-UPS Series Accessory
Part #: SMT2200RM2U | SKU: APC110946

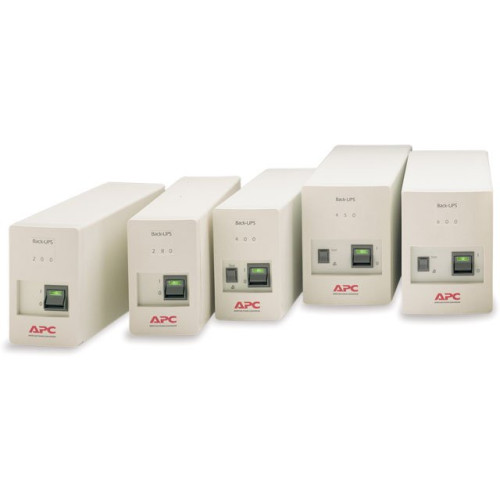

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Accessory

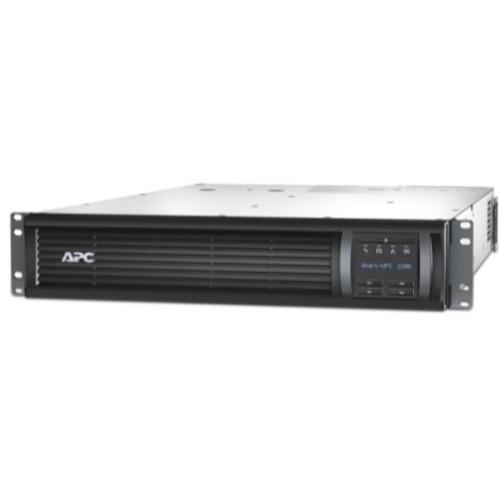

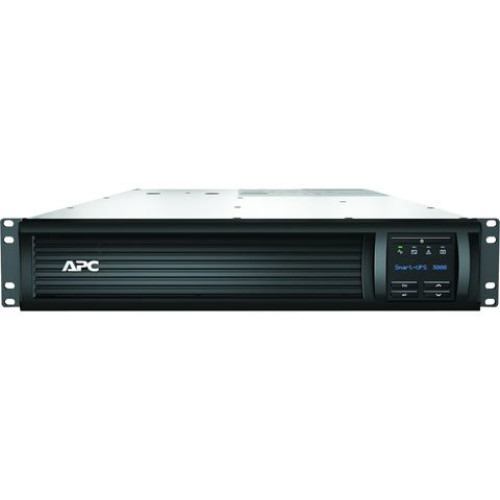

Part Details: APC by Schneider Electric Smart-UPS SMT2200RM2U 2200VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 5 Minute Stand-by - 110 V AC Input - 120 V AC Output - 6 x NEMA 5-15R, 2 x NEMA 5-20R

Additional Information

Manufacturer APC
Model Name Back-UPS Series

General Information

  • Product Type: Line-interactive UPS
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Model: SMT2200RM2U
  • Product Name: Smart-UPS SMT2200RM2U 2200VA Rack-mountable UPS
  • Product Line: Smart-UPS

Technical Information

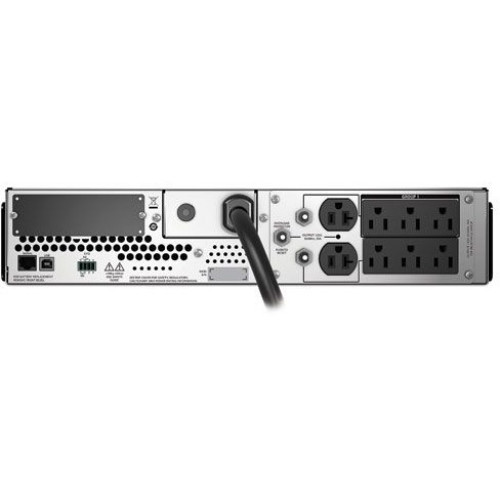

  • Receptacles:
    • 6 x NEMA 5-15R
    • 2 x NEMA 5-20R
  • Plug/Connector Type: NEMA 5-20P

Physical Characteristics

  • Height: 3.4"
  • Width: 18.9"
  • Depth: 26.9"
  • Rack Height: 2U
  • Form Factor: Rack-mountable
  • Weight (Approximate): 93.08 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Total Number of Expansion Slots: 1

Other

  • Package Contents:
    • Smart-UPS SMT2200RM2U 2200VA Rack-mountable UPS
    • CD with Software
    • Documentation CD
    • Installation Guide
    • Rack Mounting Support Rails
    • Smart UPS Signaling RS-232 Cable
    • USB Cable
    • Smart-UPS SMT2200RM2U 2200VA Rack-mountable UPS
    • CD with Software
    • Documentation CD
    • Installation Guide
    • Rack Mounting Support Rails
    • Smart UPS Signaling RS-232 Cable
    • USB Cable
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Certifications & Standards:
    • CSA
    • FCC Part 15 Class A
    • UL 1778

Battery Information

  • Maximum Battery Recharge Time: 3 Hour
  • Backup/Run Time (Half Load): 22 Minute
  • Backup/Run Time (Full Load): 5 Minute
  • Battery Characteristics: Maintenance-free, Sealed, Spill-proof
  • Battery Chemistry: Lead Acid
  • Hot Swappable: Yes

Power Description

  • Load Capacity (VA): 2200 VA
  • Load Capacity (Watt): 1980 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC

Warranty

  • Limited Warranty: 3 Year
