SMX1000 - APC Back-UPS UPS

The Back-UPS provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS automatically switches on and provides high-performance surge protection from electrical noise and power surges.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
SMX1000 Accessories, Smart-UPS x 1000VA Rack/Tower LCD 120V Ships Today $600.58
Information:   |  Specifications  |
Accessories:   |  No accessories available  |

SMX1000 Details

General Information

  • Product Type: Line-interactive UPS
  • Product Series: X
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp

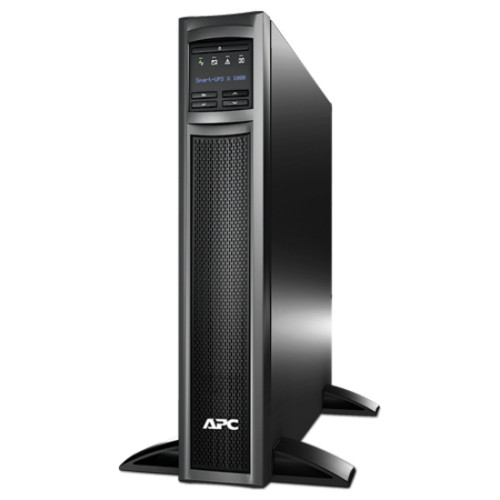

  • Product Name: Smart-UPS X 1000 VA Tower/Rack Mountable UPS
  • Product Line: Smart-UPS

Technical Information

  • Receptacles: 8 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Emergency Power OFF: Yes

Physical Characteristics

  • Height: 17"
  • Width: 3.5"
  • Depth: 19.3"
  • Rack Height: 2U
  • Form Factor: Tower/Rack Mountable
  • Weight (Approximate): 50.30 lb

Interfaces/Ports

  • USB: Yes
  • Total Number of Expansion Slots: 1

Other

  • Package Contents:
    • Smart-UPS X 1000 VA Tower/Rack Mountable UPS
    • CD with Software
    • Documentation CD
    • Installation Guide
    • Rack Mounting Brackets
    • Removable Support Feet
    • USB Cable
    • Smart-UPS X 1000 VA Tower/Rack Mountable UPS
    • CD with Software
    • Documentation CD
    • Installation Guide
    • Rack Mounting Brackets
    • Removable Support Feet
    • USB Cable
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • cUL
    • UL 1449
    • UL 1778

Battery Information

  • Maximum Battery Recharge Time: 3 Hour
  • Backup/Run Time (Half Load): 24.20 Minute
  • Backup/Run Time (Full Load): 8.10 Minute
  • Battery Characteristics: Maintenance-free, Sealed, Spill-proof
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Power Description

  • Load Capacity (VA): 1000 VA
  • Load Capacity (Watt): 800 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Input Current: 12 A

The APC SMX1000 is also known as American Power Conversion APC-SMX1000 .
