APC Products
Part #: SUA1000RM1U | SKU: APC125668

Products and parts from APC.

APC Products

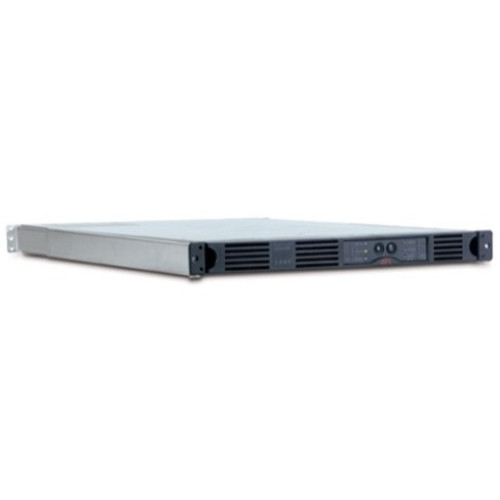

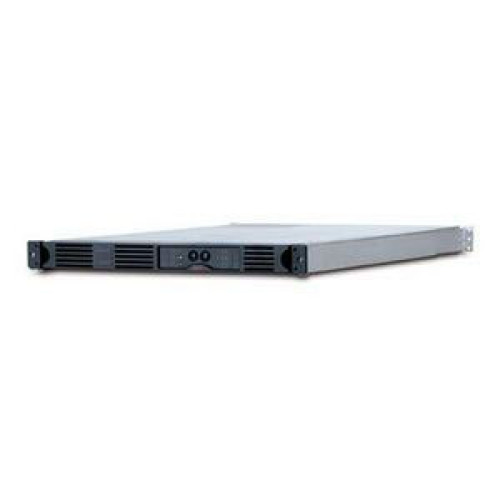

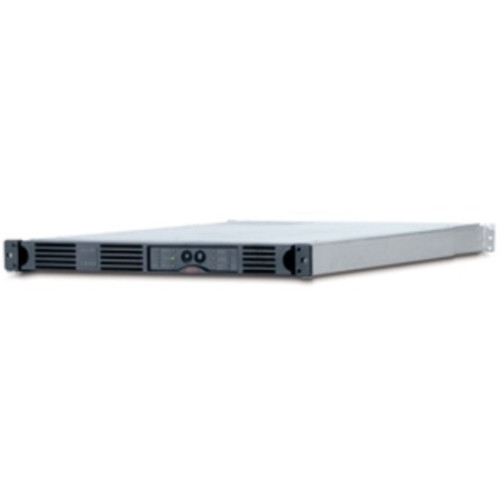

Part Details: APC Smart-UPS 1000VA USB & Serial RM 1U 120V- Not sold in CO, VT and WA - 1000VA - 5.4 Minute Full Load - 4 x NEMA 5-15R
MSRP: $1,355.00 Price: $1,025.84

Additional Information

Manufacturer APC
Model Name Parts

General Information

  • Product Type: Line-interactive UPS
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS 1000VA
  • Product Line: Smart-UPS

Technical Information

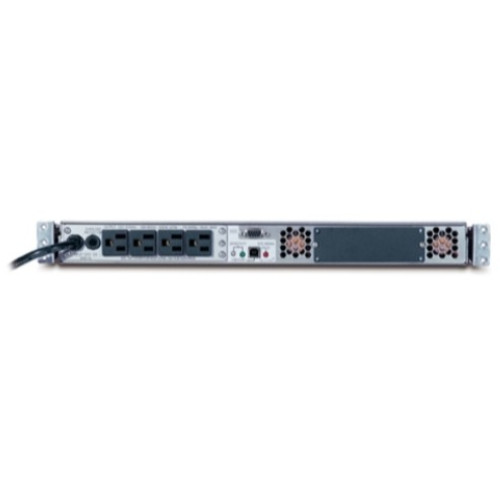

  • Receptacles: 4 x NEMA 5-15R
  • Plug/Connector Type: NEMA 5-15P
  • Cord Length: 8 ft

Physical Characteristics

  • Height: 1.7"
  • Width: 17"
  • Depth: 26"
  • Rack Height: 1U
  • Weight (Approximate): 48 lb
  • Color: Black

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Total Number of Expansion Slots: 1

Other

  • Package Contents:
    • CD with software
    • Rack Mounting support rails
    • Smart UPS signalling RS-232 cable
    • User Manual
    • USB cable
    • CD with software
    • Rack Mounting support rails
    • Smart UPS signalling RS-232 cable
    • User Manual
    • USB cable
  • Certifications & Standards:
    • FCC Part 15 Class A
    • UL 1778
  • Additional Information:
    • Automatic Self Test
    • Automatic Voltage Regulation (AVR)
    • Building wiring fault indicator
    • Load Meter
    • Network-grade line conditioning
    • Overload Indicator
    • Replace Batt Indicator
    • Software
    • USB Connectivity
    • User Replaceable batteries
    • Wide input voltage range

Power Description

  • Load Capacity (VA): 1000 VA
  • Power Consumption: 640 W
  • Input Voltage: 110 V AC
  • Output Voltage: 120 V AC
  • Surge Energy Rating: 480 J
  • Waveform Type: Sine Wave

Battery Information

  • Maximum Battery Recharge Time: 2 Hour
  • Backup/Run Time (Half Load): 14.50 Minute
  • Backup/Run Time (Full Load): 5.40 Minute
  • Battery Characteristics: Maintenance-free
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Management

  • Battery Management: Intelligent Battery Management
  • Alarm:
    • On Battery
    • Low Battery

Environmental Conditions

  • Temperature: 113°F (45°C)
  • Thermal Dissipation: 130 BTU/h
  • Sound Emission: 45 dB(A)

Controls/Indicators

  • Status Indicators: LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Warranty

  • Limited Warranty: 2 Year
