APC Back-UPS Series Accessory
Part #: SUA2200RMXLI3U | SKU: APC59819

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Accessory

Part Details: APC Smart-UPS XL 2200VA Rack Mountable UPS - 2200VA/1980W - 7.3 Minute Full Load - 8 x IEC 320-C13 - Battery/Surge-protected, 1 x IEC 320-C19 - Battery/Surge-protected, 3 x - Battery/Surge-protected

Additional Information

Manufacturer APC
Model Name Back-UPS Series

Technical Information

  • Receptacles:
    • 8 x IEC 320-C13
    • 3 x IEC 320-C19
    • 1
  • Plug/Connector Type:
    • IEC 320-C20
    • SCHUKO CEE 7 EU1-16P
    • British BS1363A
  • Emergency Power OFF: Optional

General Information

  • Product Type: Line-interactive UPS
  • Product Series: XL
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp

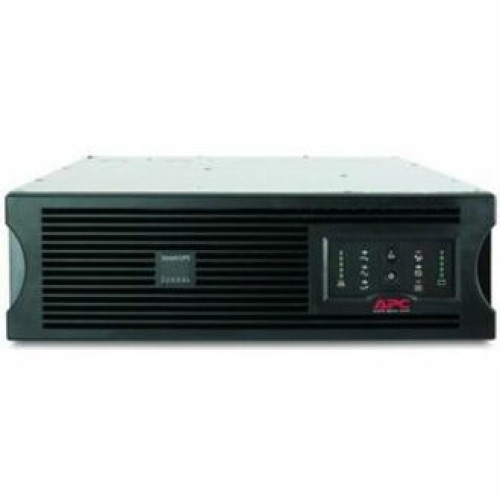

  • Product Name: Smart-UPS XL 2200VA Rack Mountable UPS
  • Product Line: Smart-UPS

Physical Characteristics

  • Height: 5.2"
  • Width: 19"
  • Depth: 26"
  • Rack Height: 3U
  • Weight (Approximate): 124.25 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Total Number of Expansion Slots: 1

Other

  • Package Contents:
    • Smart-UPS XL 2200VA Rack Mountable UPS
    • CD With Software
    • Rack Mounting Brackets
    • Smart UPS Signalling RS-232 Cable
    • USB Cable
    • User Manual
    • Smart-UPS XL 2200VA Rack Mountable UPS
    • CD With Software
    • Rack Mounting Brackets
    • Smart UPS Signalling RS-232 Cable
    • USB Cable
    • User Manual
  • Certifications & Standards:
    • C-tick
    • CE
    • EN 50091-1
    • EN 50091-2
    • GOST
    • VDE
    • UL 1449
  • Software Included: PowerChute Software
  • Additional Information: Generator Compatible

Battery Information

  • Maximum Battery Recharge Time: 3 Hour
  • Backup/Run Time (Half Load): 26.30 Minute
  • Backup/Run Time (Full Load): 7.30 Minute
  • Battery Characteristics: Maintenance-free
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Power Description

  • Load Capacity (VA): 2200 VA
  • Load Capacity (Watt): 1980 W
  • Input Voltage: 220 V AC
  • Output Voltage: 230 V AC

Warranty

  • Limited Warranty: 2 Year
