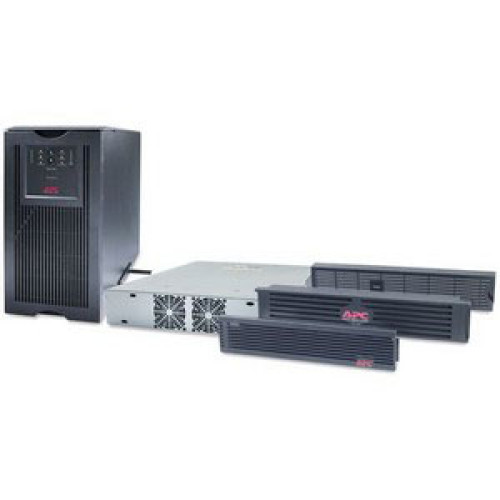

Photo of APC SUA5000R5TXFMR APC logo

APC

(208V Input and 120/208V Output)

$3,545.48

Add to cart to view shipping costs

Ships Today



Manufacturer part number: SUA5000R5TXFMR

Technical Information

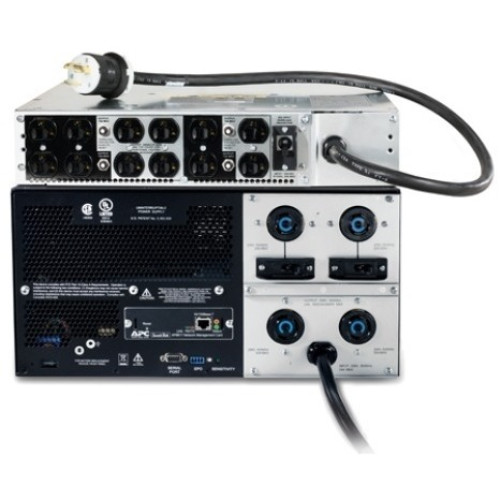

  • Receptacles:
    • 12 x NEMA L6-30R
    • 2 x NEMA L6-20R
    • 1 x NEMA L6-30R
    • 12 x NEMA 5-20R
  • Plug/Connector Type: NEMA L6-30P
  • Dataline Protection: RJ-45
  • Emergency Power OFF: Optional

General Information

  • Product Type: Line-interactive UPS
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS 5000VA Rack-mountable UPS
  • Product Line: Smart-UPS

Physical Characteristics

  • Height: 12.3"
  • Width: 19"
  • Depth: 25"
  • Rack Height: 7U
  • Weight (Approximate): 320 lb

Interfaces/Ports

  • Network (RJ-45): Yes
  • Total Number of Expansion Slots: 1

Other

  • Package Contents:
    • Smart-UPS 5000VA Rack-mountable UPS
    • CD with software
    • Rack Mounting support rails
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Smart-UPS 5000VA Rack-mountable UPS
    • CD with software
    • Rack Mounting support rails
    • Smart UPS signalling RS-232 cable
    • User Manual
  • Certifications & Standards: UL 1449, CSA, FCC Part 15 Class A, UL 1778
  • Software Included: PowerChute Management Software

Power Description

  • Load Capacity (VA): 5000 VA
  • Load Capacity (Watt): 4000 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Output Voltage: 208 V AC

Battery Information

  • Maximum Battery Recharge Time: 3 Hour
  • Backup/Run Time (Half Load): 26.70 Minute
  • Backup/Run Time (Full Load): 9.40 Minute
  • Battery Characteristics: Spill-proof, Maintenance-free
  • Battery Chemistry: Sealed Lead Acid

Management

  • Network Management: SNMP Manageable

Warranty

  • Limited Warranty: 2 Year
