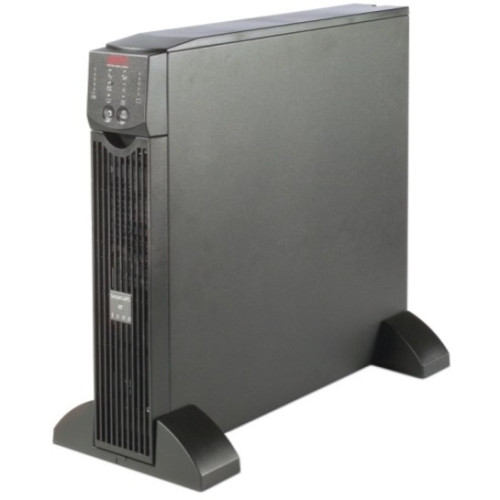

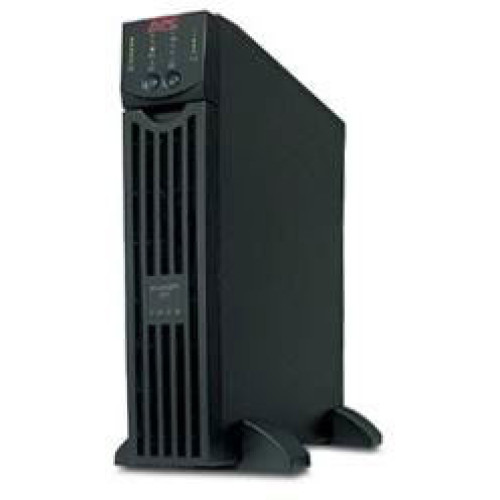

APC Back-UPS Series Accessory
Part #: SURT1000XLI | SKU: APC47061

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Accessory

Part Details: Accessory, Smart-UPS RT 1000VA 230V
MSRP: $2,565.00 Price: $2,181.82

Additional Information

Manufacturer APC
Model Name Back-UPS Series

Technical Information

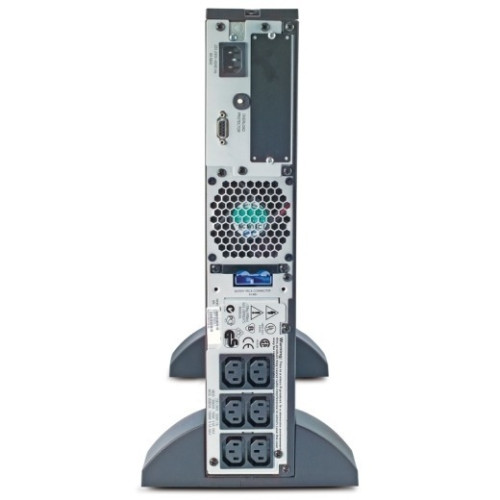

  • Receptacles:
    • 6 x IEC 320-C13
    • 2
  • Plug/Connector Type: IEC 320-C14
  • Bypass Switch: Automatic
  • Emergency Power OFF: Optional

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS RT 1000VA
  • Product Line: Smart-UPS

Physical Characteristics

  • Height: 3.4"
  • Width: 17"
  • Depth: 19"
  • Form Factor: Tower
  • Weight (Approximate): 50.60 lb
  • Color: Black

Interfaces/Ports

  • Serial Port: Yes
  • Total Number of Expansion Slots: 1

Other

  • Package Contents:
    • CD with software (PowerChute Business Edition Basic)
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Smart-UPS RT
    • CD with software (PowerChute Business Edition Basic)
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Smart-UPS RT
  • Certifications & Standards:
    • C-tick
    • CE
    • EN 50091-1
    • EN 50091-2
    • EN 55022 Class A
    • EN 60950
    • EN 61000-3-2
    • GOST
    • PCBC
    • VDE
    • UL 1449
  • Additional Information:
    • Automatic Self Test
    • Automatic Shutdown
    • Automatic Voltage Regulation (AVR)
    • Built-in automatic bypass
    • Cold-start
    • Compact and Lightweight
    • Designed and manufactured under ISO9001 / ISO14001 certification
    • Downloadable Firmware
    • Early-warning Problem Notification
    • Faster Recharge Time
    • Generator Compatible
    • Input Power Factor Correction
    • Lightning and Surge Protection
    • Load Meter
    • Multi-colored Flashing LED
    • Network-grade line conditioning
    • Overload Handling Capacity
    • Programmable Frequency
    • Scalable Run Time
    • Surge Protection
    • Temperature Compensated Battery Charging
    • Terminal Mode Programmability
    • Unattended Safe & Graceful Shutdown
    • Up to 90% efficiency
    • Web Management
    • Wide input voltage range
    • Multiple Output Voltages
    • Configurable for 220 : 230 or 240 nominal output voltage

Power Description

  • Load Capacity (VA): 1000 VA
  • Load Capacity (Watt): 700 W
  • Input Voltage: 220 V AC
  • Output Voltage: 230 V AC
  • Surge Energy Rating: 420 J
  • Waveform Type: Sine Wave

Battery Information

  • Maximum Battery Recharge Time: 3 Hour
  • Backup/Run Time (Half Load): 24.40 Minute
  • Backup/Run Time (Full Load): 10.20 Minute
  • Battery Characteristics: Spill-proof, Maintenance-free
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Management

  • Battery Management: Intelligent Battery Management
  • Alarm:
    • On Battery
    • Low Battery
    • Overload

Environmental Conditions

  • Temperature: 122°F (50°C)
  • Thermal Dissipation: 239 BTU/h
  • Sound Emission: 50 dB(A)

Controls/Indicators

  • Status Indicators: LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery, Overload and Bypass Indicators.

Warranty

  • Limited Warranty: 2 Year
Extended Details
