APC Back-UPS Series Accessory
Part #: SURT20KRMXLT | SKU: APC84353

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Accessory

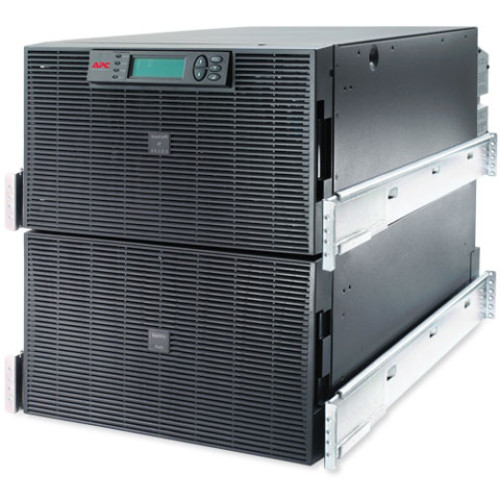

Part Details: APC Smart-UPS RT 20000VA Tower/Rack Mountable UPS - 20000VA/16000W - 4.9 Minute Full Load - 1 x Hard Wire 3-wire (2PH + G), 4 x NEMA L6-20R, 2 x NEMA L6-30R
MSRP: $29,430.00 Price: $24,994.43

Additional Information

Manufacturer APC
Model Name Back-UPS Series

Technical Information

  • Receptacles:
    • 2 x NEMA L6-20R
    • 4 x NEMA L6-30R
    • 1 x Hard Wire 3-wire (2PH + G)
  • Plug/Connector Type: Hard Wire 3-wire (2PH + G)
  • Bypass Switch:
    • Static
    • Internal
    • Automatic & Manual
    • External (Optional)
  • Emergency Power OFF: Yes

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS RT 20000VA Tower/Rack Mountable UPS
  • Product Line: Smart-UPS

Physical Characteristics

  • Height: 21"
  • Width: 17"
  • Depth: 30.4"
  • Rack Height: 12U
  • Form Factor: Tower/Rack Mountable
  • Weight (Approximate): 546.15 lb

Interfaces/Ports

  • Network (RJ-45): Yes
  • Serial Port: Yes

Other

  • Package Contents:
    • Smart-UPS RT 20000VA Tower/Rack Mountable UPS
    • CD with software
    • Rack Mounting support rails
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS RT 20000VA Tower/Rack Mountable UPS
    • CD with software
    • Rack Mounting support rails
    • Smart UPS signalling RS-232 cable
    • User Manual
    • Web/SNMP Management Card
  • Certifications & Standards:
    • UL 1449
    • UL 1778
    • UL
    • FCC
    • CE
    • C-Tick
  • Software Included: PowerChute Management Software

Battery Information

  • Maximum Battery Recharge Time: 2.50 Hour
  • Number of Batteries: 4
  • Backup/Run Time (Half Load): 15.30 Minute
  • Backup/Run Time (Full Load): 4.90 Minute
  • Battery Characteristics: Spill-proof, Maintenance-free
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Power Description

  • Load Capacity (VA): 20 kVA
  • Load Capacity (Watt): 16 kW
  • Input Voltage: 220 V AC
  • Output Voltage: 208 V AC
  • Input Current: 114 A

Management

  • Network Management: SNMP Manageable

Warranty

  • Limited Warranty: 2 Year
