APC Back-UPS Series Accessory
Part #: SURTD5000RMXLT3U | SKU: APC72303

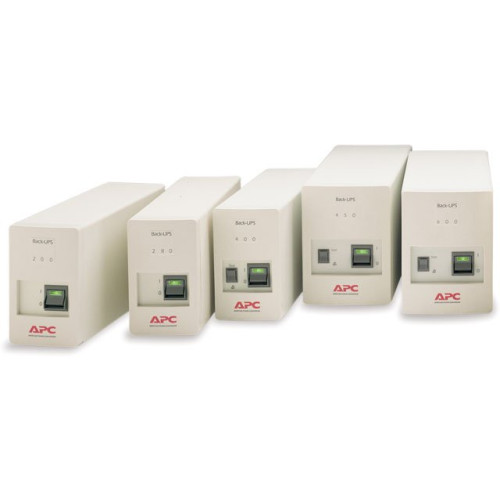

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Accessory

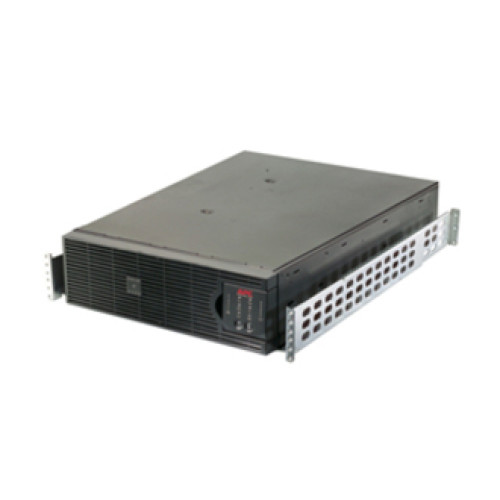

Part Details: APC Smart-UPS RT 5000VA Tower/Rack-mountable UPS - 5000VA/3500W - 6.3 Minute Full Load - 2 x NEMA L6-20R, 2 x NEMA L6-30R

Additional Information

Manufacturer APC
Model Name Back-UPS Series

Technical Information

  • Receptacles:
    • 2 x NEMA L6-20R
    • 2 x NEMA L6-30R
  • Plug/Connector Type: NEMA L6-30P
  • Bypass Switch:
    • Automatic
    • Manual
  • Emergency Power OFF: Yes

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: RT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS RT 5000VA Tower/Rack-mountable UPS
  • Product Line: Smart-UPS

Physical Characteristics

  • Height: 5.1"
  • Width: 17"
  • Depth: 26"
  • Rack Height: 3U
  • Form Factor: Tower/Rack Mountable
  • Weight (Approximate): 128.26 lb

Other

  • Package Contents:
    • Smart-UPS RT 5000VA Tower/Rack-mountable UPS
    • CD with Software
    • Rack Mounting Support Rails
    • Smart UPS Signaling RS-232 Cable
    • User Manual
    • 2 x Battery Modules
    • Smart-UPS RT 5000VA Tower/Rack-mountable UPS
    • CD with Software
    • Rack Mounting Support Rails
    • Smart UPS Signaling RS-232 Cable
    • User Manual
    • 2 x Battery Modules
  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • CSA
    • FCC Part 15 Class A
    • UL 1778
    • CE
    • C-Tick
    • UL 1449

Power Description

  • Load Capacity (VA): 5000 VA
  • Load Capacity (Watt): 3500 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Output Voltage: 240 V AC

Battery Information

  • Maximum Battery Recharge Time: 2.50 Hour
  • Backup/Run Time (Half Load): 18 Minute
  • Backup/Run Time (Full Load): 6.30 Minute
  • Battery Characteristics: Maintenance-free, Sealed, Spill-proof
  • Battery Chemistry: Sealed Lead Acid
  • Hot Swappable: Yes

Warranty

  • Limited Warranty: 2 Year
