APC Back-UPS Series UPS
Part #: SUVTP30KF3B4S | SKU: APC175569

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series UPS

Part Details: Smart-UPS VT 30kVA 208V w/ 3 Batt Mod Exp to 4 START UP
MSRP: $21,885.00 Price: $18,404.45

Additional Information

Manufacturer APC
Model Name Back-UPS Series

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: VT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp

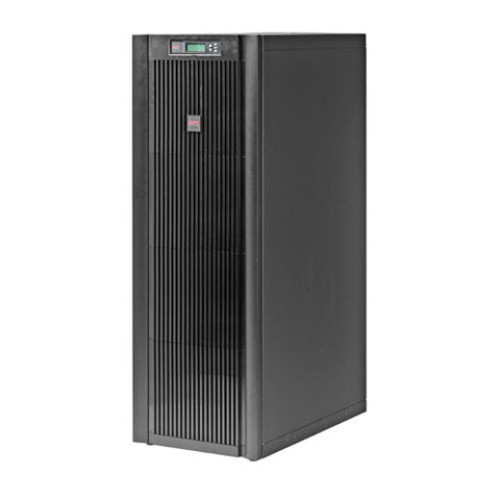

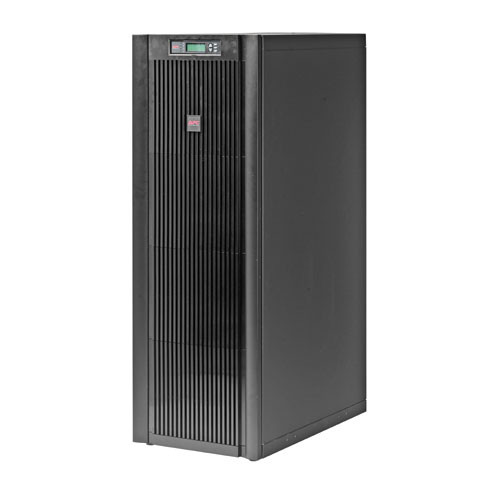

  • Product Name: Smart-UPS VT 30 kVA Tower UPS
  • Product Line: Smart-UPS

Technical Information

  • Receptacles:
    • 1 x Hard Wire 5-wire 3PH + N + G
    • 1 x Screw Terminal
  • Plug/Connector Type: Hard Wire 5-wire 3PH + N + G
  • Interfaces/Ports: DB-9 RS-232 Serial

Physical Characteristics

  • Height: 59"
  • Width: 20.6"
  • Depth: 32"
  • Form Factor: Tower
  • Weight (Approximate): 1181 lb

Interfaces/Ports

  • Modular Slots:
    • 1 x Battery
    • SmartSlot
  • Interfaces/Ports: DB-9 RS-232 Serial

Other

  • Package Contents:
    • Smart-UPS VT 30 kVA Tower UPS
    • 3 x Battery Modules ship installed
    • Bolt Down Brackets
    • CD with Software
    • Installation Guide
    • Power Modules ship installed
    • Smart UPS Signalling RS-232 Cable
    • Start Up Service
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS VT 30 kVA Tower UPS
    • 3 x Battery Modules ship installed
    • Bolt Down Brackets
    • CD with Software
    • Installation Guide
    • Power Modules ship installed
    • Smart UPS Signalling RS-232 Cable
    • Start Up Service
    • User Manual
    • Web/SNMP Management Card

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 165 V AC to 240 V AC Mains Operation
  • Load Capacity: 30 kVA/24 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
    • 208 V AC 3-phase Nominal
  • Current: 80 A Maximum Input Current
  • Frequency:
    • 40 to 70 Hz Input
    • 57 to 63 Hz Output
  • Input Current: 80 A

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Automatic
    • Internal
    • Manual
    • Maintenance
    • Static
  • Emergency Power OFF: Yes

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.09 Hour 24 kW Full Load
    • 0.31 Hour 12 kW Half Load
  • Battery Recharge Time: 3 Hour Typical

Scalability

  • Modules: 3 x Battery Module

Warranty

  • Limited Warranty: 1 Year
Extended Details
