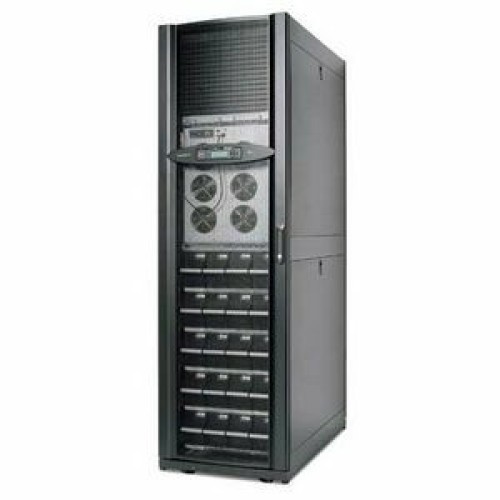

APC Smart-UPS UPS
Part #: SUVTR30KF5B5S | SKU: APC229301

Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

APC Smart-UPS UPS

Part Details: APC SMART-UPS VT RACK MOUNTED 30KVA 208V W/5 BATT MOD,W/PDU
MSRP: $27,165.00 Price: $22,849.73

Additional Information

Manufacturer APC
Model Name Smart-UPS

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: VT
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Smart-UPS VT 30kVA Rack-mountable UPS
  • Product Line: Smart-UPS

Technical Information

  • Receptacles:
    • 1 x Hard Wire 5-wire 3PH + N + G - Backup/Surge-protected
    • 5 x NEMA L21-20 - Backup/Surge-protected
  • Plug/Connector Type: Hard Wire 5-wire 3PH + N + G

Physical Characteristics

  • Height: 78.5"
  • Width: 23.6"
  • Depth: 42"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 1844 lb

Other

  • Package Contents:
    • Smart-UPS VT 30kVA Rack-mountable UPS
    • CD with software
    • Installation Guide
    • Power modules ship installed
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card
    • Smart-UPS VT 30kVA Rack-mountable UPS
    • CD with software
    • Installation Guide
    • Power modules ship installed
    • Smart UPS signalling RS-232 cable
    • Start up included
    • User Manual
    • Web/SNMP Management Card

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 165 V AC to 240 V AC Mains Operation
  • Load Capacity: 30 kVA/24 kW
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC 3-phase Nominal
  • Current: 80 A Maximum Input Current
  • Frequency:
    • 57 to 63 Hz Output
    • 40 to 70 Hz Input
  • Input Current: 80 A

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Maintenance
    • Static
  • Emergency Power OFF: Yes
  • Overload Protection: Resettable circuit breakers

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA)
  • Backup/Run Time:
    • 0.23 Hour 24 kW Full Load
    • 0.61 Hour 12 kW Half Load
  • Battery Recharge Time: 3 Hour Typical

Warranty

  • Limited Warranty: 1 Year
  • Parts Warranty/Labor: 1 Year

Scalability

  • Modules: 5 x Battery Module
Extended Details
