APC Back-UPS Series UPS
Part #: SY30K40F | SKU: APC125680

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series UPS

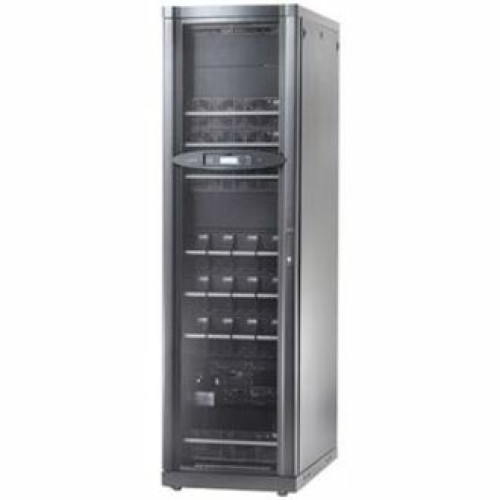

Part Details: APC Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS - 4.1 Minute Full Load - 40kVA - SNMP Manageable
MSRP: $52,880.00 Price: $44,474.95

Additional Information

Manufacturer APC
Model Name Back-UPS Series

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: PX
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS
  • Product Line: Symmetra

Technical Information

  • Receptacles:
    • 1 x Hard Wire 5-wire 3PH + N + G - Surge-protected
    • 1 x Screw Terminal - Surge-protected
  • Plug/Connector Type: Hardwired 3PH + N + G
  • Interfaces/Ports: RJ-45

Physical Characteristics

  • Height: 82"
  • Width: 24"
  • Depth: 36"
  • Form Factor: 42U Rack-mountable
  • Weight (Approximate): 1438.01 lb

Interfaces/Ports

  • Modular Slots: 2 x SmartSlot
  • Interfaces/Ports: RJ-45

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 177 V AC to 240 V AC 3-phase Mains Operation
  • Load Capacity: 40 kVA/40 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC
    • 208 V AC 3-phase
  • Frequency:
    • 57 to 63 Hz Output
    • 50 Hz Input
    • 60 Hz Input

Other

  • Package Contents:
    • Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS
    • Start up
    • User Manual
    • Web/SNMP Management Card
    • Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS
    • Start up
    • User Manual
    • Web/SNMP Management Card

Battery Information

  • Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.07 Hour 30 kW Full Load
    • 0.25 Hour 15 kW Half Load
  • Battery Recharge Time: 2 Hour Typical

Management

  • Network Management: SNMP Manageable Optional
  • Bypass Switch: Static
  • Emergency Power OFF: Yes

Scalability

  • Modules: 3 x Battery Module
  • Power Range: 30 kVA to 40 kVA /

Warranty

  • Limited Warranty: 2 Year
  • Parts Warranty/Labor: 2 Year
