SY60K100F - APC Back-UPS UPS

The Back-UPS provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS automatically switches on and provides high-performance surge protection from electrical noise and power surges.

Part # Description Availability Price Order
SY60K100F Symmetra PX 60kW Scalable to 100kW, 208V with Startup Ships Today $56,200.00
Information:   |  Specifications  |
Accessories:   |  No accessories available  |

SY60K100F Details

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: PX
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Model: SY60K100F

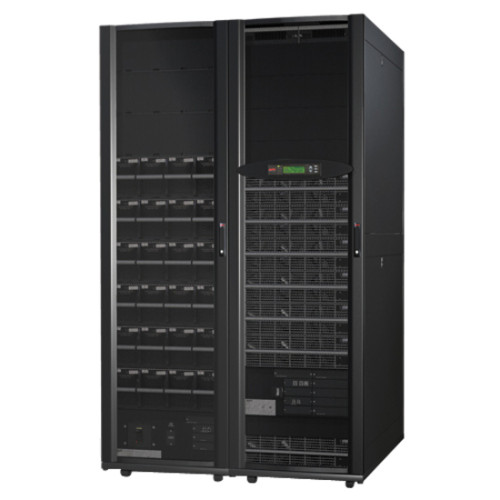

  • Product Name: Symmetra PX SY60K100F 60kVA Tower UPS
  • Product Line: Symmetra

Technical Information

  • Receptacles: 1 x Hard Wire 5-wire 3PH + N + G

Physical Characteristics

  • Height: 79.2"
  • Width: 47.2"
  • Depth: 42.1"
  • Form Factor: Tower
  • Weight (Approximate): 3113.72 lb

Interfaces/Ports

  • Modular Slots:
    • 2 x SmartSlot
    • 3 x Battery

Power Description

  • Input Voltage Range:
    • 208 V AC 3-phase Nominal
    • 177 V AC to 239 V AC Mains Operation
  • Load Capacity: 60 kVA/60 kW
  • Input Voltage: 220 V AC
  • Output Voltage: 208 V AC 3-phase Nominal
  • Current: 332 A Maximum Input Current
  • Frequency:
    • 57 Hz to 63 Hz Output
    • 40 Hz to 70 Hz Input
  • Input Current: 332 A

Other

  • Package Contents:
    • Symmetra PX SY60K100F 60kVA Tower UPS
    • Installation Guide
    • Network Management Card
    • User Manual
    • 6 x Battery Modules
    • Symmetra PX SY60K100F 60kVA Tower UPS
    • Installation Guide
    • Network Management Card
    • User Manual
    • 6 x Battery Modules

Management

  • Network Management: SNMP Manageable Included
  • Bypass Switch:
    • Static
    • Automatic
    • Internal

Battery Information

  • Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
  • Backup/Run Time: 0.10 Hour 60 kW Full Load
  • Battery Recharge Time: 2 Hour Typical

Scalability

  • Modules: 6 x Battery Module
  • Power Range: 60 kVA to 100 kVA / 60 kW to 100 kW

Warranty

  • Limited Warranty: 1 Year

The APC SY60K100F is also known as American Power Conversion APC-SY60K100F .
