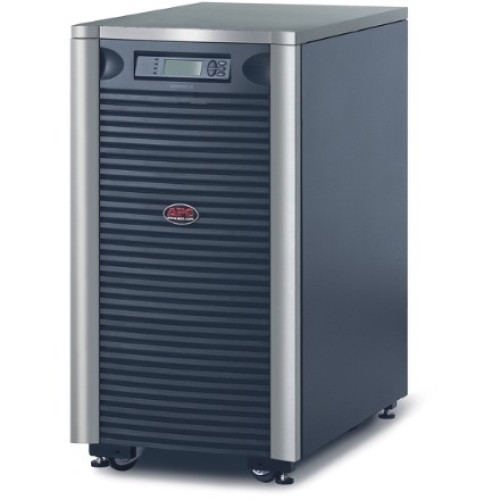

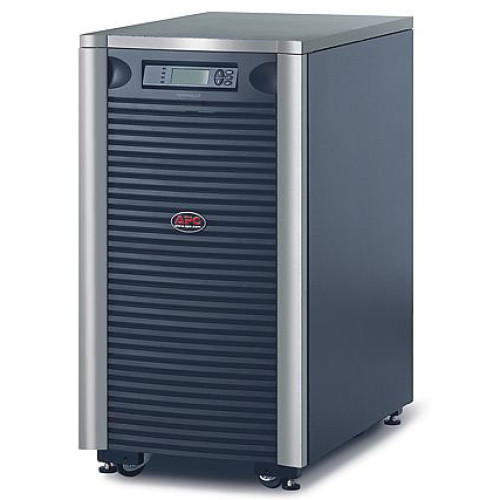

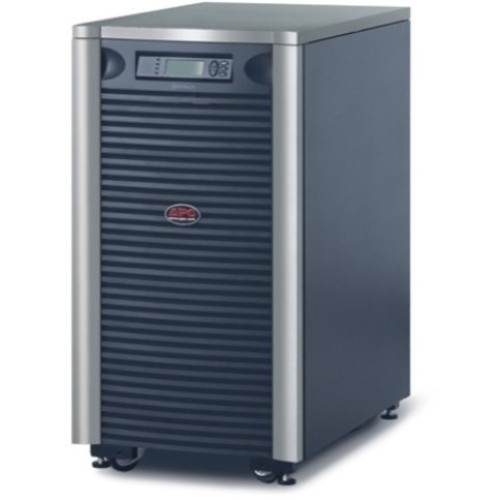

APC Back-UPS Series Power Device
Part #: SYA12K16I | SKU: APC206806

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Power Device

Part Details: APC Symmetra LX 12kVA Scalable to 16kVA N+1 Tower UPS - 7.5 Minute Full Load - 12kVA - SNMP Manageable
MSRP: $22,535.00 Price: $16,896.10

Additional Information

Manufacturer APC
Model Name Back-UPS Series

General Information

  • Product Type: Dual Conversion Online UPS
  • Product Series: LX
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Symmetra LX 12kVA Scalable to 16kVA N+1 Tower UPS
  • Product Line: Symmetra

Technical Information

  • Receptacles: 1 x Hard Wire 3-wire H N + G
  • Plug/Connector Type:
    • Hard Wire 3-wire PH + N + G
    • Hard Wire 5-wire 3PH + N + G

Physical Characteristics

  • Height: 37"
  • Width: 19"
  • Depth: 29"
  • Form Factor: Tower
  • Weight (Approximate): 580 lb
  • Color:
    • Black
    • Silver

Interfaces/Ports

  • Modular Slots: 1 x SmartSlot

Other

  • Package Contents:
    • Symmetra LX 12kVA Scalable to 16kVA N+1 Tower
    • CD with software
    • Documentation CD
    • Installation Guide
    • User Manual
    • Web/SNMP Management Card
    • Symmetra LX 12kVA Scalable to 16kVA N+1 Tower
    • CD with software
    • Documentation CD
    • Installation Guide
    • User Manual
    • Web/SNMP Management Card
  • Certifications & Standards:
    • C-tick
    • CE
    • EN 50091-1
    • EN 50091-2
    • EN 55022 Class A
    • EN 55024
    • EN 60950
    • GOST
    • IEC 60950
    • VDE
  • Additional Information:
    • Automatic restart of loads after UPS shutdown
    • Audible and visible alarms prioritized by severity
    • InfraStruXure Manager Compatible
    • Plug-and-Play external batteries
    • Configurable for 220, 230 or 240 nominal output voltage

Power Description

  • Input Voltage Range:
    • 230 V AC Nominal
    • 400 V AC Nominal
    • 290 V AC to 480 V AC Mains Operation
    • 155 V AC to 276 V AC Mains Operation
  • Load Capacity: 12 kVA/8.40 kW
  • Input Voltage: 440 V AC
  • Output Voltage: 230 V AC Nominal
  • Frequency:
    • 45 to 65 Hz Input
    • 47 to 63 Hz Output
  • Waveform Type: Sine Wave

Environmental Conditions

  • Altitude:
    • 0 ft to 10000 ft Operating
    • 0 ft to 15000 ft Storage
  • Humidity:
    • 0 to 95% Relative Humidity Operating
    • 0 to 95% Relative Humidity Storage
  • Temperature:
    • 32°F (0°C) to 104°F (40°C) Operating
    • 5°F (-15°C) to 113°F (45°C) Storage
  • Thermal Dissipation: 3707 BTU/h

Management

  • Network Management: SNMP Manageable
  • Battery Management: Intelligent Battery Management
  • Bypass Switch:
    • Automatic
    • Manual
  • Emergency Power OFF: Yes
  • Overload Protection: Resettable circuit breakers

Battery Information

  • Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.13 Hour 8.40 kW Full Load
    • 0.34 Hour 4.20 kW Half Load

Warranty

  • Limited Warranty: 2 Year
  • Parts Warranty/Labor: 2 Year

Controls/Indicators

  • Control Panel: Multi-function LCD status and control console

Scalability

  • Power Range: 12 kVA to 16 kVA / 8.40 kW to 11.20 kW
