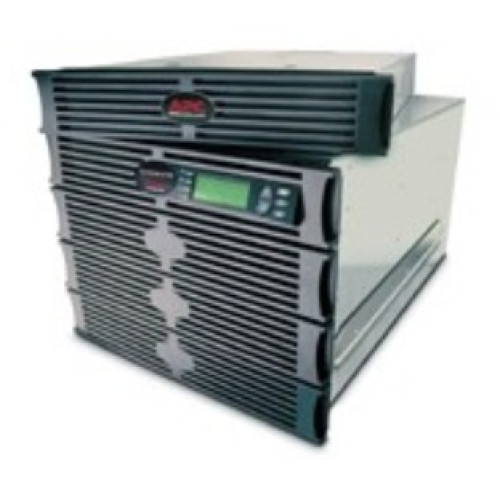

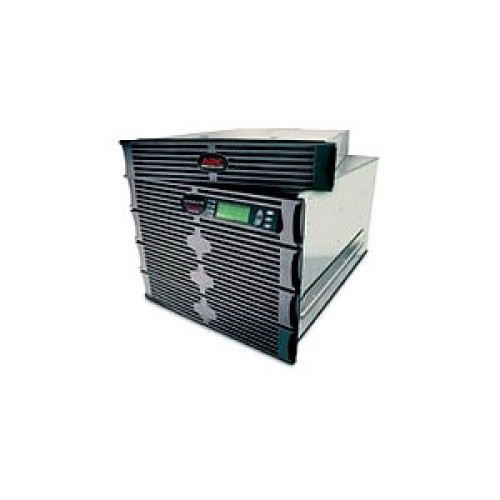

Photo of APC SYH2K6RMT-TF3 APC logo

APC

Scalable to 6kVA N+1 208/240V with 208 to 120V Step-Down Transformer 4 L5-20R

$3,500.00

Add to cart to view shipping costs

Ships Today



Manufacturer part number: SYH2K6RMT-TF3

Technical Information

  • Receptacles:
    • 4 x NEMA L5-20R - Backup/Surge-protected
    • 2 x NEMA L6-20R - Backup/Surge-protected
  • Plug/Connector Type:
    • Hard Wire 3-wire PH + PH + G
    • NEMA L6-30P

General Information

  • Product Type: Dual Conversion Online UPS
  • Brand Name: APC
  • Manufacturer: American Power Conversion Corp
  • Product Name: Symmetra 2kVA Scalable to 6kVA Rack-mountable with Step-Down Transformer
  • Product Line: Symmetra

Physical Characteristics

  • Height: 17.5"
  • Width: 19"
  • Depth: 29"
  • Form Factor: 10U Rack-mountable
  • Weight (Approximate): 259 lb
  • Color: Black
  • Power Cord/Cable: 6 ft

Interfaces/Ports

  • Modular Slots: 1 x SmartSlot

Other

  • Package Contents:
    • Symmetra 2kVA Scalable to 6kVA Rack-mountable with Step-Down Transformer
    • CD with software
    • Rack Mounting Brackets
    • Rack Mounting support rails
    • User Manual
    • Symmetra 2kVA Scalable to 6kVA Rack-mountable with Step-Down Transformer
    • CD with software
    • Rack Mounting Brackets
    • Rack Mounting support rails
    • User Manual
  • Certifications & Standards:
    • CSA
    • FCC Part 15 Class A
    • UL 1778
  • Additional Information:
    • Output Voltage Distortion: Less than 5% at full load
    • Crest Factor: Up to 5 : 1
    • Battery Slots Empty: 4
    • Automatic restart of loads after UPS shutdown
    • Automatic self-test
    • Configurable for N+1 internal redundancy
    • Generator compatible
    • Predictive failure notification

Power Description

  • Input Voltage Range:
    • 208 V AC Nominal
    • 155 V AC to 276 V AC Mains Operation
  • Load Capacity: 6 kVA/4.20 kW
  • Input Voltage: 220 V AC
  • Output Voltage:
    • 120 V AC Nominal
    • 208 V AC Nominal
    • 240 V AC Nominal
  • Frequency:
    • 50 Hz Input
    • 60 Hz Input
    • 57 to 63 Hz Output
  • Waveform Type: Sine Wave

Environmental Conditions

  • Altitude:
    • 0 ft to 10000 ft Operating
    • 0 ft to 50000 ft Storage
  • Humidity:
    • 0 to 95% Relative Humidity Operating
    • 0 to 95% Relative Humidity Storage
  • Temperature:
    • 32F (0C) to 104F (40C) Operating
    • 5F (-15C) to 113F (45C) Storage
  • Thermal Dissipation: 843 BTU/h

Management

  • Network Management: SNMP Manageable
  • Battery Management: Intelligent Battery Management
  • Alarm:
    • On Battery
    • Low Battery
    • Configurable Delay
  • Bypass Switch: Automatic & Manual
  • Emergency Power OFF: Yes
  • Overload Protection: Resettable circuit breakers

Battery Information

  • Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
  • Backup/Run Time:
    • 0.20 Hour 1.40 kW Full Load
    • 0.46 Hour 700 W Half Load

Warranty

  • Limited Warranty: 2 Year
  • Parts Warranty/Labor: 2 Year

Scalability

  • Modules: 1 x Battery Module
  • Power Range: 2 kVA to 6 kVA / 1.40 kW to 4.20 kW

Controls/Indicators

  • Control Panel: Multi-function LCD status and control console.
