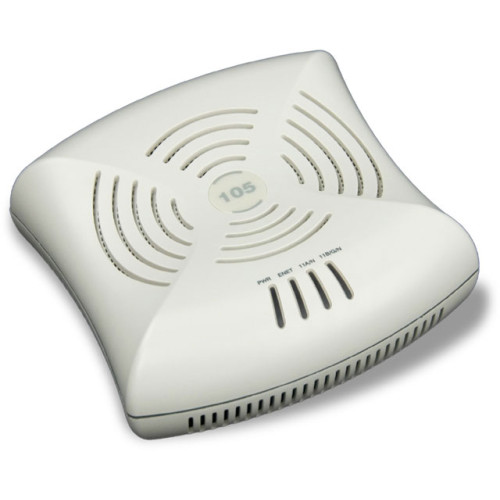

IAP-105-US - Aruba AP105 Access Point

The Aruba AP105 is a value-priced, indoor 802.11n dual-radio, dual-band 105 access point designed for high-density deployments. Working with Aruba's line of centralized Mobility Controllers, the AP105 delivers secure, high-speed network services that move users to a "wireless where possible, wired where necessary" network access model. The network can then be rightsized by eliminating unused Ethernet switch ports and thereby reducing operating costs. 802.11n enables the use of wireless as a primary connection with speed and reliability comparable to a wired LAN. It also increases performance by utilizing techniques such as channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases range and reliability.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
IAP-105-US AP-105, Instant Access Point, 802.11a/b/g-n, US Only
Information:   |  Specifications  |  Aruba's AP105 page  |
Accessories:   |  Accessories/Options  |  Aruba AP105 service contract  |

IAP-105-US Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Gain:
    • 2.5 dBi
    • 4 dBi
  • Antenna Type: Omnidirectional Antenna
  • Total Number of Antennas: 4
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security: IEEE 802.1x

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Aruba Networks
  • Manufacturer: Aruba Networks, Inc
  • Product Model: AP-105
  • Product Name: Instant AP-105 Wireless Access Point
  • Product Line: Instant

Physical Characteristics

  • Height: 5.3"
  • Width: 5.2"
  • Depth: 1.8"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
    • Desktop
  • Weight (Approximate): 10.58 oz

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • FCC/Industry of Canada
    • CE Marked
    • R&TTE Directive 1995/5/EC
    • Low Voltage Directive 72/23/EEC
    • EN 300 328
    • EN 301 489
    • EN 301 893
    • UL/IEC/EN 60950
    • CB Scheme Safety
    • cTUVus
    • Japan MIC/VCCI
    • Korea KCC
    • Brazil ANATEL
    • Mexico NOM/COFETEL
    • China SRRC/CCC
    • UL2043 Compliant

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Warranty

  • Limited Warranty: Lifetime

Management & Protocols

  • Management: Adaptive Radio Management (ARM)

The Aruba IAP-105-US is also known as ARU-IAP-105-US or IAP105US .
