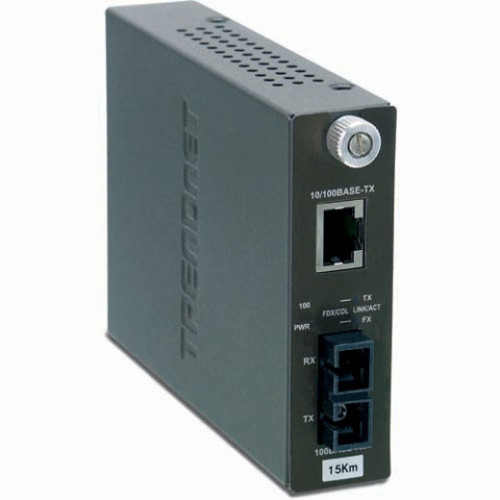

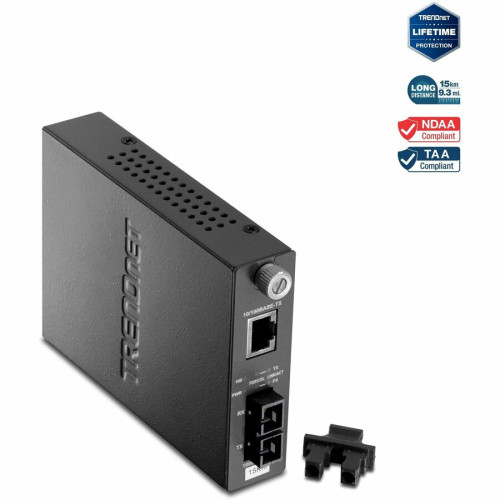

Product Name: TFC-110S15 10/100Base-TX to
100Base-FX Single-Mode Fiber Converter
Physical Characteristics
Height: 1"
Width: 1"
Depth: 3.5"
Form Factor:
Wall Mountable
Rack-mountable
Weight (Approximate): 12.49 oz
Interfaces/Ports
Number of Network (RJ-45) Ports: 1
Network (RJ-45): Yes
Number of SC Ports: 1
Total Number of Ports: 2
Other
Certifications & Standards:
IEEE 802.3: 10Base-T
IEEE 802.3u: 100Base-TX and 100Base-FX
FCC
CE
VCCI
Additional Information:
Wavelength: 1300nm
Protocol: CSMA/CD
Supported Frame Size: Standard Ethernet up to 1522-Byte
The fiber connection can be multi-mode SC, MT-RJ
Optional 19" system chassis with redundant power supply
(TFC-1600), holds up to 16 TFC series Media Converters
Used with TFC1600. TFC-1600 is a 19" system chassis. holds up
to 16 TFC series Media Converters TFC-110MSC, TFC-110MST,
TFC110S15, TFC-110S30 and TFC-1000MSC
