Photo of Bogen CS1EZ Bogen logo

Bogen CS1EZ Ceiling Speaker

1 watt RMS, 8" cone speaker, 70V matching transformer, 50 Hz to 12 kHz4900 ohms Impedance, White


Free Shipping

Ships Today


Bogen CS1EZ Ceiling Speaker

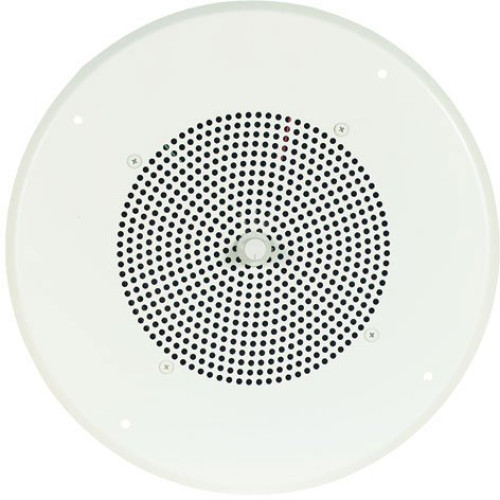

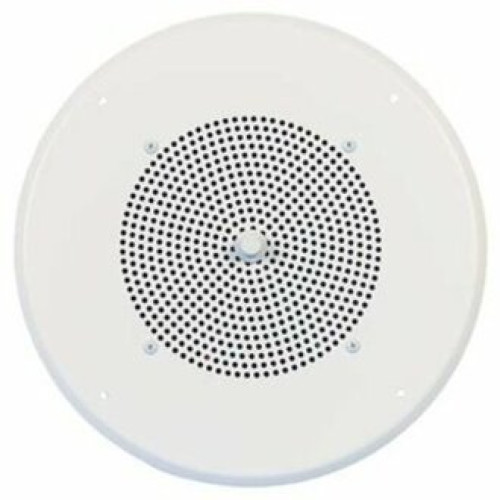

CS1EZ Ceiling Speaker from Bogen incorporates an 8" cone speaker with 4900 ohms impedance and a frequency range of 50Hz to 12kHz. It features 1-watt single-tap design to work with 70V amplifier outputs. The unit includes a volume control knob, 13" diameter steel ceiling grille with white enamel finish and a rear-mounted screw terminal board for fast and easy installation.

Full specifications (PDF)

Manufacturer part number: CS1EZ

General Information

Technical Information

  • Minimum Frequency Response: 50 Hz
  • Maximum Frequency Response: 12 kHz
  • RMS Output Power: 1 W
  • Impedance: 4.9 Kilo Ohm
  • Sound Pressure Level: 95 dB

Physical Characteristics

  • Diameter: 13"
  • Depth: 3.3"
  • Color: White
  • Form Factor: Ceiling Mountable
  • Material: Steel
  • Weight (Approximate): 3 lb


  • Additional Information:
    • Screw terminal connections for fast installation
    • Works with 70V amplifier outputs
    • Heavy duty, wire wound volume control with knob
