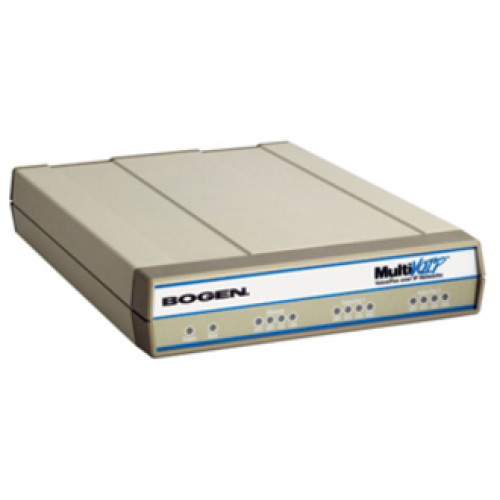

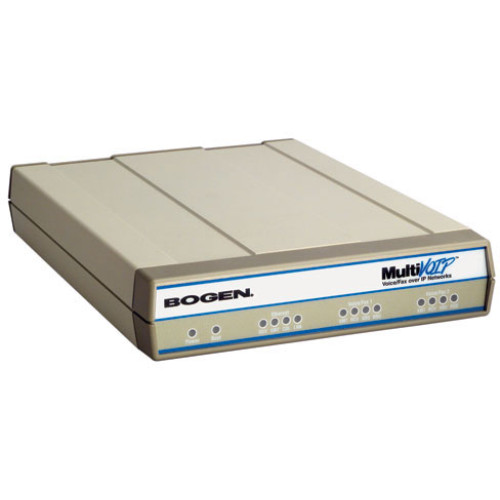

Photo of Bogen MVP210BG Bogen logo

Bogen VOIP Gateway

2 analog ports, Ethernet, Single or multi-zone paging, FXS/FXO connectors, H.323/SIP protocols, Single Port Protocol, Voice compression, T.38 real-time fax relay, H.450 supplementary service support

$1,011.67

Free Shipping

Ships in 24-48 hours



Bogen VOIP Gateway

Bogen's VOIP Gateway allows paging communications to be sent over the Internet or Intranet. FXS pass through expands the paging capabilities by providing a continuous connection between buildings using a Local or Wide Area Network. Equipment is easily managed locally using a Windows-based software or remotely with a web browser or SNMP. VOIP Gateway can also be used for toll-free voice or fax communications when connected to phones, fax machines, key systems, PSTN lines or a PBX to provide real-time, toll-quality voice connections to any office over a network. It utilizes the H.323 or SIP protocols to provide complete interoperability with other Internet telephony solutions.

Full specifications (PDF)

Manufacturer part number: MVP210BG

General Information

Physical Characteristics

  • Height: 1.5"
  • Width: 15.9"
  • Depth: 9"
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 1
  • Management Port: Yes

Management & Protocols

  • Voice Codec:
    • G.723
    • G.729
    • G.711
    • G.726
    • G.727
    • G.165
    • G.168

Other

  • Package Contents:
    • MVP210BG VoIP Gateway for Paging
    • RJ45-DB-9 Cable
    • MVP210BG VoIP Gateway for Paging
    • RJ45-DB-9 Cable
  • Additional Information: Single port protocol supported

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet Technology: Fast Ethernet
  • Network Standard: 10/100Base-TX
