Photo of Bogen SPT30A Bogen logo

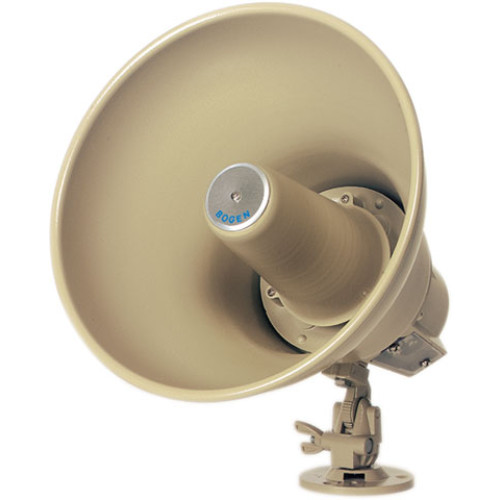

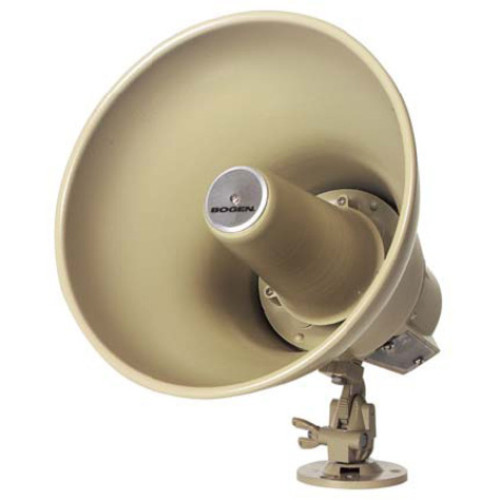

Bogen SPT30A Horn Loudspeaker

15W, 25/70V, Variable-tap impedance selector, Weatherproof, Optional Beam clamp

$96.21

Free Shipping

Ships in 24-48 hours



Bogen SPT30A Horn Loudspeaker

The Bogen SPT30A Horn Loudspeaker horn speaker: compact, highly intelligible, 30 watt reentrant type loudspeakers designed for one-way or two-way sound and communication systems. Features a variable impedance selector switch to match the speaker power requirement to 25/75V constant voltage line. Engineered for simple, fast installation with uniquely designed all-purpose mounting brackets, self aligning field replaceable diaphragm and screw terminals. The speaker and mounting bracket are handsomely finished in textured mocha enamel. Its sturdy, weatherproof, all metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction-sites, transportation terminals and recreational areas.

Full specifications (PDF)

Manufacturer part number: SPT30A

General Information

Technical Information

  • Amplifier: 30 W
  • Features: Weather Proof

Physical Characteristics

  • Material: Metal
  • Weight (Approximate): 6 lb

Other

  • Additional Information:
    • Power Rating (RMS): 30 watts continuous, 40 watts equalized
    • Frequency Response: 225 Hz to 14 kHz
    • Sound Pressure Level: 125 dB @ four feet on axis with 30-watt
    • input @ 1000 Hz
    • Dispersion: 100
    • Sensitivity as Microphone: -22 dBm [Ref: 10 dynes/cm2]
    • Dimensions: 11" Diameter x 10-1/2" D
    • 25V or 70V constant voltage line
    • Impedance Selector Switch Settings:
    • 25V @ 15, 7.5, 3.7, 1.8 watts
    • 70V @ 30, 15, 7.5, 3.7, 1.8 watts

Warranty

  • Limited Warranty: Lifetime

Controls/Indicators

  • Controls: Variable impedance selector switch
