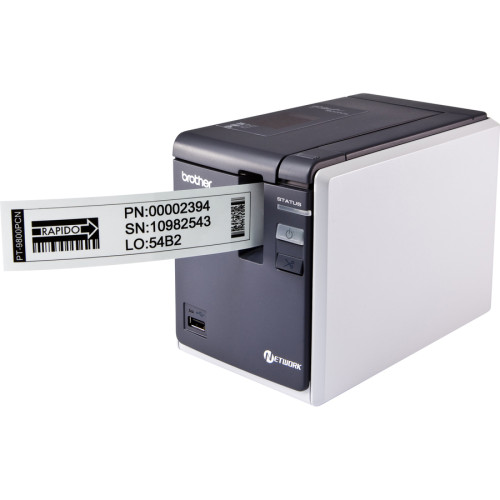

PT9800PCN - Brother PT9800PCN Bar code Printer

The Brother PT9800PCN printer uses thermal transfer technology and self-contained cassettes that include the adhesive-backed label and the lamination all in one. This drop-in cassette makes it easy to change consumables - there are no transfer ribbons to install and align, no need to remove wrinkles from a transfer ribbon, and no need to perform density calibrations at any time. The PT9800PCN has a continuous label cassettes that gives you the flexibility to print labels of any length with a half-cut feature that allows multiple labels to be printed on a single strip and peeled off as needed.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
PT9800PCN PT9800PCN, Network Barcode and Label Printer
Information:   |  Specifications  |  Brother's PT9800PCN page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |
Supplies:   |  Brother PT9800PCN Label  |

PT9800PCN Details

Technical Information

  • Maximum Mono Print Speed: 3.15 in/s
  • Maximum Print Resolution: 360 x 720 dpi
  • Print Color: Monochrome
  • Recommended Use: Label Print
  • Features:
    • Cutter
    • Auto Numbering
    • Horizontal Printing
    • Vertical Printing
    • Mirror Printing
    • Rotate Printing
  • Barcode Symbology Supported:
    • Code 39
    • ITF
    • Interleaved 2 of 5
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • Codabar
    • NW-7
    • Code 128
    • UCC/EAN 128
    • POSTNET
    • ISBN-2
    • ISBN-5
    • GS1 DataBar
    • RSS
    • PDF-417
    • QR Code
    • Micro QR
    • Data Matrix
    • Maxi Code

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: Brother
  • Manufacturer: Brother Industries, Ltd
  • Product Model: PT-9800PCN
  • Product Name: P-Touch PT-9800PCN Thermal Label Printer
  • Product Line: P-touch

Physical Characteristics

  • Form Factor: Desktop
  • Color:
    • White
    • Gray

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported:
    • PC
    • Mac
  • Package Contents:
    • P-Touch PT-9700PC Thermal Label Printer
    • AC Adapter
    • Power Cord
    • USB Cable
    • CD
    • HG-251 Tape
    • User Guide
    • P-Touch PT-9700PC Thermal Label Printer
    • AC Adapter
    • Power Cord
    • USB Cable
    • CD
    • HG-251 Tape
    • User Guide

Media Types & Handling

  • Media Type:
    • High Grade Tape
    • Adhesive Tape
    • Iron-on Fabric
  • Media Size:
    • 1.42" x TZ Tape
    • 0.14" x TZ Tape
    • 0.24" x TZ Tape
    • 0.35" x TZ Tape
    • 0.47" x TZ Tape
    • 0.71" x TZ Tape
    • 0.94" x TZ Tape
    • 26.25 ft - TZ Tape

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Power Description

  • Input Voltage: 110 V AC

Cutter

  • Cutting Method: Automatic

Memory

  • Standard Memory: 7 MB

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: ESC/P
