AIR-ANT5135DW-R= - Cisco Accessories Misc

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
AIR-ANT5135DW-R= 5 GHz 3.5 dBi SWIVEL DIPOLE ANTENNA WHITE, RP-TNC Ships Free Today $24.62
Information:   |  No specifications available  |

AIR-ANT5135DW-R= Details

General Information

  • Product Type: Antenna
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Model: AIR-ANT5135DW-R
  • Product Name: Aironet 3.5-dBi Articulated Dipole Antenna
  • Product Line: Aironet

Technical Information

  • Antenna Gain: 3.5 dBi
  • Directivity: Omni-directional
  • Frequency Band Type: SHF
  • Frequency: 5.15 GHz to 5.85 GHz
  • Polarization: Linear Vertical/Vertical

Physical Characteristics

  • Width: 0.6"

Interfaces/Ports

  • Connector Type: RP-TNC

Other

  • Application/Usage: Wireless Data Network
  • Additional Information:

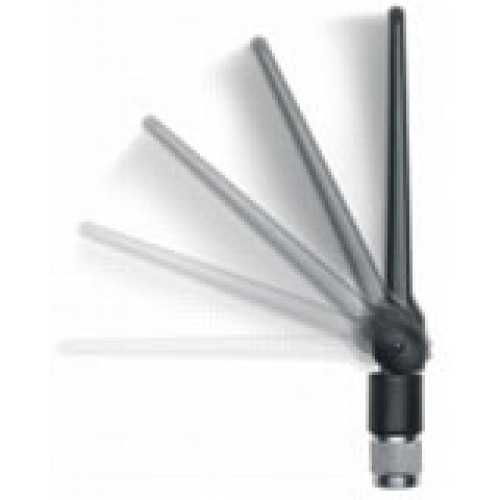

    • The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its knuckle with detents at 45 and 90 degrees
    • Environment:
    • Indoor
    • Office

Warranty

  • Limited Warranty: 90

The Cisco AIR-ANT5135DW-R= is also known as CSC-AIRANT5135DWR= or AIRANT5135DWR= .
