Cisco Accessories Products

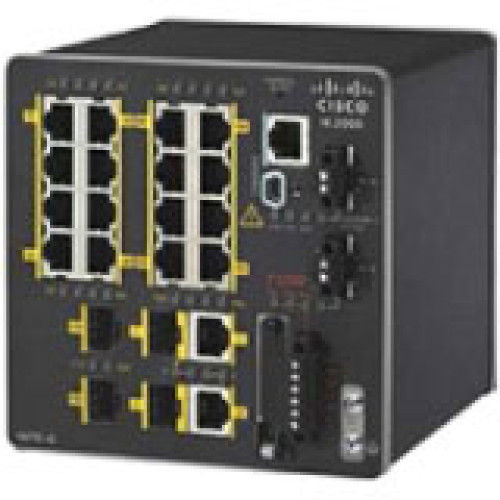

Part #: IE-2000-16TC-G-E | SKU: CIS208925

Cisco Accessories Products

Part Details: IE 16 10/100,2 FE SFP+2 T/SFP, Base with 1588
MSRP: $3,844.38 Price: $2,945.69
In Stock

Additional Information

Manufacturer Cisco
Model Name Accessories

General Information

  • Product Type: Ethernet Switch
  • Product Series: IE-2000
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Model: IE-2000-16TC-G-E
  • Product Name: IE-2000-16TC-G-E Ethernet Switch

Physical Characteristics

  • Height: 5.1"
  • Width: 5"
  • Depth: 5.3"
  • Form Factor:
    • Desktop
    • Rail-mountable
  • Weight (Approximate): 4.35 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 16
  • Stack Port: No
  • Total Number of Network Ports: 20
  • Token Ring Port: No
  • LRE Port: No
  • USB: Yes
  • Modular: No
  • Management Port: Yes
  • Uplink Port: Yes
  • Bypass: No

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • Safety:
    • UL/CSA 60950-1
    • EN 60950-1
    • CB to IEC 60950-1 (with country deviations)
    • NOM to NOM-019-SCF1 (through partners and distributors)
    • CE Marking
    • Hazard:
    • ANSI/ISA 12.12.01 (Class 1, Div 2 A-D)
    • EN 60079-0, -15 ATEX certification (Class I, Zone 2 A-D)
    • EMC Emission and Community:
    • FCC 47 CFR Part 15 Class A
    • EN 55022A Class A
    • VCCI Class A
    • AS/NZS CISPR 22 Class A, AS/NZS CISPR 24
    • CISPR11 Class A, CISPR22 Class A
    • ICES 003 Class A
    • KCC -Korea
    • CE Marking
    • C-Tick (Australia)
    • Russia certification
    • Brazil certification
    • IEC/EN61000-4-2 (Electro Static Discharge), 15kV Air/8kV Contact
    • IEC/EN 61000-4-3 (Radiated Immunity, 10 and 20V/m)
    • IEC/EN 61000-4-4 (Fast Transients - 4kV power line, 4kV data line
    • IEC/EN 61000-4-5 (Surge 2 kV/1 kV)
    • IEC/EN 61000-4-6 (Conducted Immunity, 10V/emf)
    • IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
    • IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
    • IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
    • IEC/EN 61000-4-11 (AC power Voltage Immunity)
    • IEC/EN 61000-4-29 (Voltage Dips Immunity)
    • IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)
    • IEC/EN 61000-6-4 Class A
    • EN 61326
    • Shock and Vibration:
    • IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine)
    • IEC 60068-2-27 (Non-Operational Shock 55-70G, trapezoidal)
    • IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration 2g@10-500Hz)
    • IEC 60068-2-6, IEC 60068-2-64 (Non-operational Vibration)
    • Industry:
    • UL 508
    • CSA C22.2 No. 142
    • EN 61131-2 (Programmable Controllers)
    • Protective Coating
    • Substation (IEEE 1613, IEC 61850-3) KEMA
    • Lloyd's Register Type Approval - ENV2 or ENV3
    • British, German Lloyds
    • Marine (LR, BV, GL, DnV, Rina ABS, KR)
    • RA 156-165 Mhz 24 dBuV/M - Class A is 50 dBuV/M - Marine Band
    • Railway EN 50155
    • NEMA TS-2
    • IP30
    • ODVA Industrial EtherNet/IP
    • PROFINETv2
    • Corrosive Testing:
    • ISO-12944-6
    • IEC-60068-2-60
    • Humidity:
    • IEC 60068-52-2 (Salt Fog Mist, Test Kb) Marine environments
    • IEC 60068 -2-3
    • IEC 60068-2-30

Management & Protocols

  • Manageable: Yes
  • Management:
    • Telnet
    • HTTPS
    • SNMPv3
    • CNA
    • VLAN
    • QoS
    • DHCP
    • SSH
    • CiscoWorks LAN Management Solution (LMS)
    • Web Base Management

Media & Performance

  • Ethernet Technology:
    • Fast Ethernet
    • Gigabit Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology:
    • 10/100Base-TX
    • 10/100/1000Base-T
  • Twisted Pair Cable Standard: Category 5

Memory

  • Memory Card Supported: Secure Digital (SD) Card
  • Memory Technology: DRAM
  • Flash Memory: 64 MB
  • Maximum Memory: 1 GB
  • Standard Memory: 256 MB

I/O Expansions

  • Number of Total Expansion Slots: 4
  • Expansion Slot Type: SFP
  • Number of SFP Slots: 4
  • Shared SFP Slot: Yes

Power Description

  • PoE (RJ-45) Port: No
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

Network & Communication

  • Layer Supported: 2

Warranty

  • Limited Warranty: 1 Year
Extended Details
