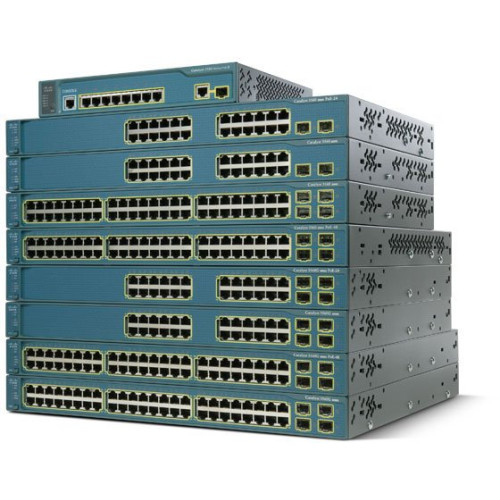

Cisco Catalyst 3560 Series Switch Data Networking
Part #: WS-C3560G-24PS-S | SKU: CIS40671

The Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, they help you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

Cisco Catalyst 3560 Series Switch Data Networking

Part Details: Catalyst 3560 Series Switch, (24 Ethernet 10/100/1000 Ports and 4 SFP-Based Gigabit Ethernet Ports)

Additional Information

Manufacturer Cisco
Model Name Catalyst 3560 Series Switch

General Information

  • Product Type: Layer 3 Switch
  • Product Series: 3560
  • Brand Name: Cisco-IMSourcing
  • Manufacturer: Cisco-IMSourcing
  • Product Model: 3560G-24PS
  • Product Name: Catalyst 3560G-24PS Layer 3 Switch
  • Product Line: Catalyst

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.7"
  • Width: 17.5"
  • Depth: 14.9"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 13.50 lb

Interfaces/Ports

  • Number of PoE (RJ-45) Ports: 24
  • Total Number of Network Ports: 24
  • Token Ring Port: No
  • LRE Port: No
  • Management Port: Yes
  • Bypass: No

Other

  • Certifications & Standards:
    • IEEE Standards:
    • 802.1s
    • 802.1w
    • 802.1x
    • 802.3ad
    • 802.3af
    • 802.3x
    • 802.1D
    • 802.1p
    • 802.1Q
    • 802.3
    • 802.3u
    • 802.3ab
    • 802.3z
    • Safety Certifications:
    • UL 60950-1, First Edition
    • CUL to CAN/CSA 22.2 No. 60950-1, First Edition
    • TUV/GS to EN 60950-1, First Edition
    • CB to IEC 60950-1 with all country deviations
    • AS/NZS 60950-1, First Edition
    • NOM
    • CE Marking
    • Electromagnetic Emissions Certifications:
    • FCC Part 15 Class A
    • EN 55022 Class A (CISPR22)
    • EN 55024 (CISPR24)
    • AS/NZS CISPR22 Class A
    • CE
    • CNS 13438 Class A
    • MIC
    • GOST
    • China EMC Certifications

Management & Protocols

  • Manageable: Yes
  • Management:
    • CiscoWorks LAN Management
    • Web-based Management
    • SNMP v1, v2c, v3
    • Telnet
    • CLI
    • QoS
    • DHCP
    • VLAN
    • Syslog
    • RMON 1, 2, 3, 9

Warranty

  • Additional Warranty Information:
    • Product does not ship from original manufacturer
    • Product may not be eligible for original manufacturer warranty, rebates or programs
    • Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
    • Product ships from IMSourcing facility within 2-3 days or from stock
    • Product may ship in non-standard packaging
    • All returns processed directly from IMSourcing
    • Product condition subject to availability
    • Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
    • Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Power Description

  • PoE (RJ-45) Port: Yes
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

Media & Performance

  • Ethernet Technology: Gigabit Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology: 10/100/1000Base-T
  • Twisted Pair Cable Standard: Category 5

I/O Expansions

  • Number of Total Expansion Slots: 4
  • Expansion Slot Type: SFP
  • Number of SFP Slots: 4
  • Shared SFP Slot: No

Memory

  • Memory Technology: DRAM
  • Flash Memory: 32 MB
  • Standard Memory: 128 MB

Network & Communication

  • Layer Supported: 3

Reliability

  • MTBF: 186300 Hour
Extended Details
