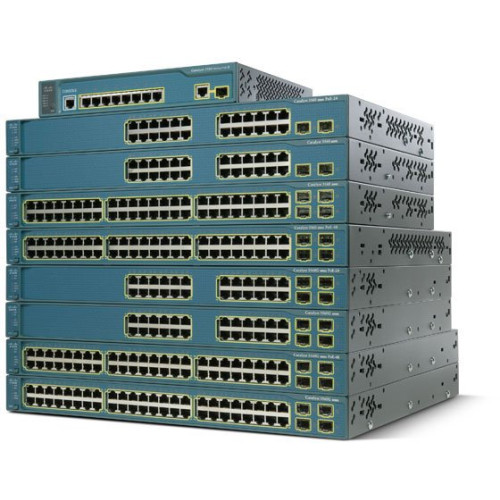

Cisco Catalyst 3560 Series Switch Data Networking
Part #: WS-C3560X-24T-E | SKU: CIS206110

The Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco pre-standard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. These are ideal access layer switches for small enterprise LAN access or branch-office environments. Combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection, they help you deploy new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

Cisco Catalyst 3560 Series Switch Data Networking

Part Details: Catalyst 3560X 24 Port Data IP Services
MSRP: $9,500.00 Price: $7,525.97

Additional Information

Manufacturer Cisco
Model Name Catalyst 3560 Series Switch

General Information

  • Product Type: Ethernet Switch
  • Product Series: 3560-X
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Name: Catalyst Ethernet Switch
  • Product Line: Catalyst

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.8"
  • Width: 17.5"
  • Depth: 18"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 15.40 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 24
  • Total Number of Network Ports: 24
  • Token Ring Port: No
  • LRE Port: No
  • USB: Yes
  • Modular: No
  • Management Port: Yes
  • Uplink Port: No
  • Bypass: No

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3z
    • IEEE 802.1D
    • IEEE 802.1Q
    • IEEE 802.3ab
    • IEEE 802.1p
    • IEEE 802.3x
    • IEEE 802.3ad (LACP)
    • IEEE 802.1w
    • IEEE 802.1x
    • IEEE 802.1s
    • IEEE 802.1ae
    • EMI and EMC Compliance:
    • FCC Part 15 (CFR 47) Class A
    • ICES-003 Class A
    • EN 55022 Class A
    • CISPR 22 Class A
    • AS/NZS 3548 Class A
    • BSMI Class A
    • VCCI Class A
    • EN 55024
    • EN300386
    • EN 50082-1
    • EN 61000-3-2
    • EN 61000-3-3
    • EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5
    • EN61000-4-6
    • EN 61000-6-1
    • Safety Compliance:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • CCC

Management & Protocols

  • Manageable: Yes
  • Management:
    • Web-Based Management
    • Command Line Interface
    • SNMP v1, v2c, v3
    • RMON 1, 2, 3, 9
    • Syslog
    • Telnet
    • DHCP
    • VLAN
    • QoS
    • MIB

Power Description

  • PoE (RJ-45) Port: No
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

Memory

  • Memory Technology: DRAM
  • Flash Memory: 64 MB
  • Standard Memory: 256 MB

Media & Performance

  • Ethernet Technology: Gigabit Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology: 10/100/1000Base-T

I/O Expansions

  • Number of Total Expansion Slots: 1
  • Shared SFP Slot: No

Network & Communication

  • Layer Supported: 2

Warranty

  • Limited Warranty: Lifetime

Reliability

  • MTBF: 208218 Hour
Extended Details
