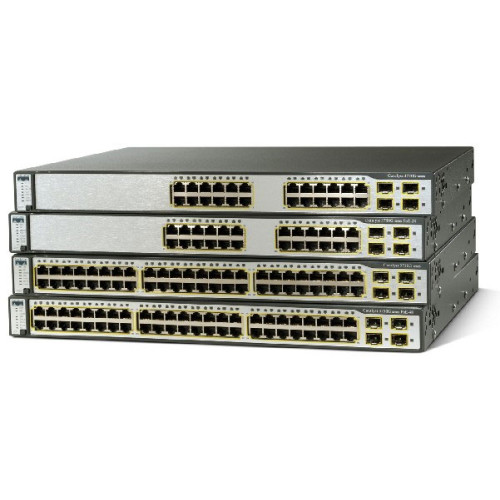

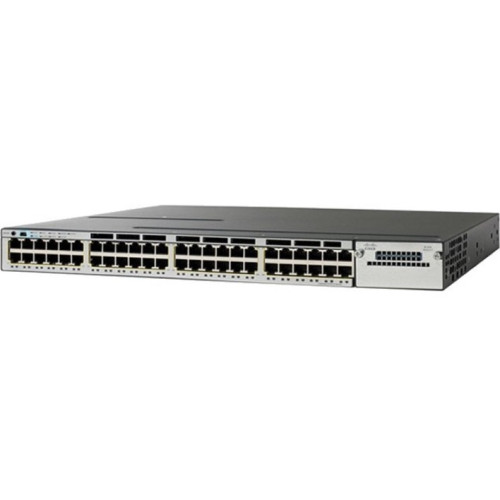

WS-C3750X-48PF-S - Cisco Catalyst 3750 Series Switch Data Networking Device

The Cisco Catalyst 3750 Series Switch is an innovative product for midsize organizations and enterprise branch offices. Featuring Cisco StackWise technology, the switch improves LAN operating efficiency by combining ease of use and the highest resiliency available for stackable switches.

Part # Description Availability Price Order
WS-C3750X-48PF-S Catalyst 3750 Series Switch, Catalyst 3750X Switch (48 Port Full PoE IP Base) Ships Free Today $10,588.56
Retail $16100
Save 34%
Information:   |  Specifications  |  Cisco's Catalyst 3750 Series Switch page  |
Accessories:   |  No accessories available  |  Cisco Catalyst 3750 Series Switch service contract  |

WS-C3750X-48PF-S Details

General Information

  • Product Type: Layer 3 Switch
  • Product Series: 3750-X
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Model: 3750X-48PF-S
  • Product Name: Catalyst 3750X-48PF-S Stackable Layer 3 Switch
  • Product Line: Catalyst

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.8"
  • Width: 17.5"
  • Depth: 19.5"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 16.76 lb

Interfaces/Ports

  • Number of PoE (RJ-45) Ports: 48
  • Total Number of Network Ports: 48
  • Port/Expansion Slot Details: 48 x Gigabit Ethernet Network
  • USB: Yes

Management & Protocols

  • Manageable: Yes
  • Management:
    • Command-line interface (CLI)
    • DHCP
    • VLAN
    • QoS
    • SNMP v1,2c,3
    • RMON

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS-5
  • Package Contents:
    • Catalyst WS-C3750X-48PF-S Stackable Layer 3 Switch
    • 1100W AC Power Supply
    • Catalyst WS-C3750X-48PF-S Stackable Layer 3 Switch
    • 1100W AC Power Supply

Power Description

  • PoE (RJ-45) Port: Yes
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

Media & Performance

  • Ethernet Technology:
    • Gigabit Ethernet
    • Fast Ethernet
  • Network Technology: 10/100/1000Base-T

Memory

  • Memory Technology: DRAM
  • Flash Memory: 128 MB
  • Standard Memory: 256 MB

Warranty

  • Limited Warranty: Lifetime

Network & Communication

  • Layer Supported: 3

I/O Expansions

  • Number of Total Expansion Slots: 1

The Cisco WS-C3750X-48PF-S is also known as CSC-WSC3750X48PFS or WSC3750X48PFS .
