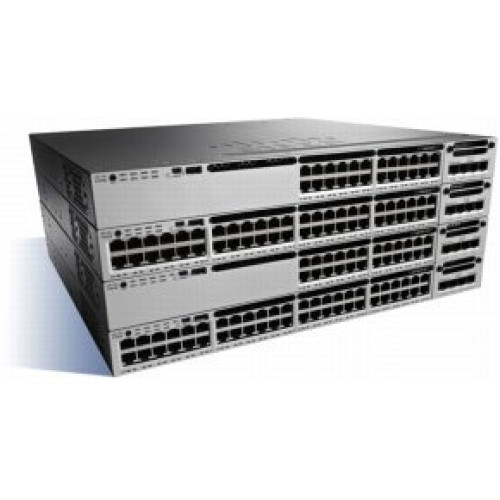

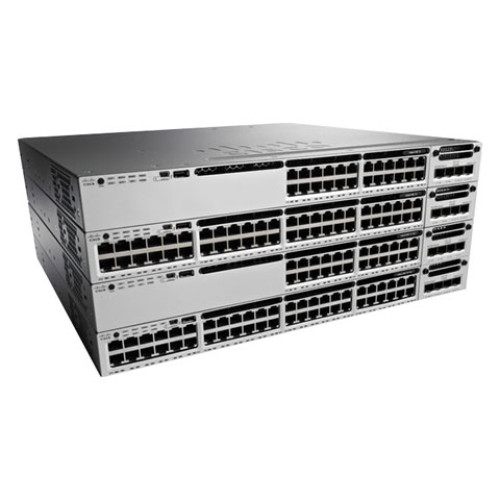

WS-C3850-24T-L - Cisco Catalyst 3850 Ethernet Switch

The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
WS-C3850-24T-L Catalyst 3850, Catalyst 3850 24 Port Data LAN Base Ships Free Today $3,369.04
Retail $5200
Save 35%
Information:   |  Specifications  |  Cisco's Catalyst 3850 page  |
Accessories:   |  No accessories available  |

WS-C3850-24T-L Details

General Information

  • Product Type: Ethernet Switch
  • Product Series: 3850
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Model: WS-C3850-24T-L
  • Product Name: Catalyst WS-C3850-24T-L Ethernet Switch
  • Product Line: Catalyst

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.8"
  • Width: 17.5"
  • Depth: 17.7"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 15.90 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 24
  • Stack Port: Yes
  • Total Number of Network Ports: 24
  • Token Ring Port: No
  • LRE Port: No
  • USB: Yes
  • Modular: Yes
  • Management Port: Yes
  • Bypass: No

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS-5
  • Package Contents:
    • Catalyst WS-C3850-24T Ethernet Switch
    • 350W AC Power Supply
    • Catalyst WS-C3850-24T Ethernet Switch
    • 350W AC Power Supply
  • Certifications & Standards:
    • IEEE Standards:
    • 802.1w
    • 802.1x
    • 802.1x-Rev
    • 802.3ad
    • 802.3af
    • 802.3at
    • 802.3x
    • 802.1D
    • 802.1p
    • 802.1Q
    • 802.3
    • 802.3u
    • 802.3ab
    • 802.3z
    • 802.1s
    • Safety Certifications:
    • UL 60950-1 Second Edition
    • CAN/CSA-C22.2 No. 60950-1 Second Edition
    • EN 60950-1 Second Edition
    • IEC 60950-1 Second Edition
    • GOST
    • NOM
    • Electromagnetic Emissions Certifications:
    • FCC Part 15 (CFR 47) Class A
    • ICES-003 Class A
    • EN 55022 Class A
    • CISPR 22 Class A
    • AS/NZS 3548 Class A
    • BSMI Class A (AC input models only)
    • VCCI Class A
    • EN 55024
    • EN300386
    • EN 50082-1
    • EN 61000-3-2
    • EN 61000-3-3
    • EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5
    • EN61000-4-6
    • EN 61000-6-1

Management & Protocols

  • Manageable: Yes
  • Management:
    • MIB
    • RMON I and II
    • SNMPv1, v2c, v3
    • QOS
    • VLAN
    • DHCP

Power Description

  • PoE (RJ-45) Port: No
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

Media & Performance

  • Ethernet Technology: Gigabit Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology: 10/100/1000Base-T
  • Twisted Pair Cable Standard: Category 5e

Memory

  • Memory Technology: DRAM
  • Flash Memory: 2 GB
  • Standard Memory: 4 GB

Warranty

  • Limited Warranty: 90 Day

Network & Communication

  • Layer Supported: 2

I/O Expansions

  • Number of Total Expansion Slots: 1

Reliability

  • MTBF: 303230 Hour

The Cisco WS-C3850-24T-L is also known as CSC-WSC385024TL or WSC385024TL .
