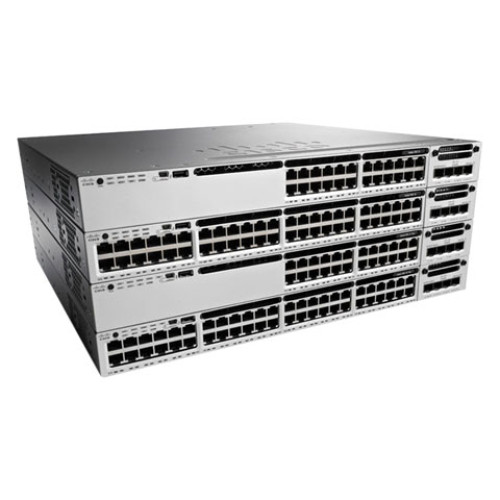

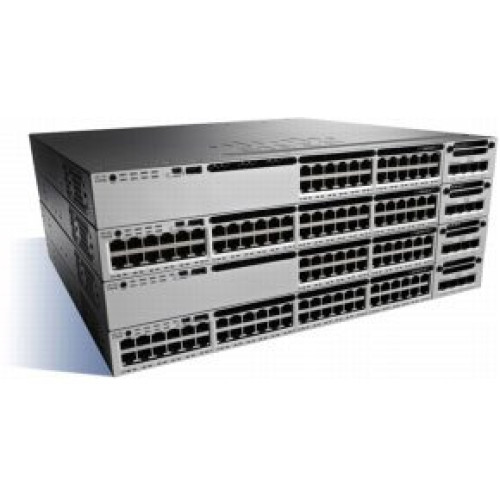

WS-C3850-24T-S - Cisco Catalyst 3850 Ethernet Switch

The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
WS-C3850-24T-S Catalyst 3850, Catalyst 3850 24 Port Data IP Base Ships Free Today $4,014.01
Retail $6500
Save 38%
Information:   |  Specifications  |  Cisco's Catalyst 3850 page  |
Accessories:   |  No accessories available  |

WS-C3850-24T-S Details

General Information

  • Product Type: Layer 3 Switch
  • Product Series: 3850
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Model: WS-C3850-24T-S
  • Product Name: Catalyst WS-C3850-24T-S Layer 3 Switch
  • Product Line: Catalyst

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Height: 1.8"
  • Width: 17.5"
  • Depth: 17.7"
  • Form Factor: Rack-mountable
  • Weight (Approximate): 15.90 lb

Interfaces/Ports

  • Number of Network (RJ-45) Ports: 24
  • Stack Port: Yes
  • Total Number of Network Ports: 24
  • Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
  • Token Ring Port: No
  • LRE Port: No
  • USB: Yes
  • Modular: Yes
  • Management Port: Yes
  • Bypass: No

Management & Protocols

  • Manageable: Yes
  • Management:
    • MIB
    • RMON I and II
    • SNMPv1, v2c, v3
    • QOS
    • VLAN
    • DHCP

Power Description

  • PoE (RJ-45) Port: No
  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Redundant Power Supply: Yes
  • Power Source: Power Supply

Media & Performance

  • Ethernet Technology: Gigabit Ethernet
  • Media Type Supported: Twisted Pair
  • Network Technology: 10/100/1000Base-T
  • Twisted Pair Cable Standard: Category 5e

Memory

  • Memory Technology: DRAM
  • Flash Memory: 2 GB
  • Standard Memory: 4 GB

I/O Expansions

  • Number of Total Expansion Slots: 1

Network & Communication

  • Layer Supported: 3

Warranty

  • Limited Warranty: Lifetime

Reliability

  • MTBF: 303230 Hour

The Cisco WS-C3850-24T-S is also known as CSC-WSC385024TS or WSC385024TS .
