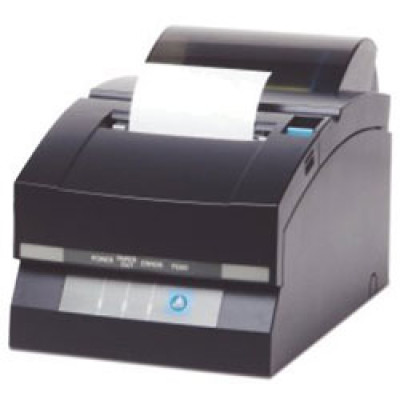

Photo of Citizen CDS500
Citizen logo

Citizen CDS500 Printer

The Citizen CDS500 is tabletop or wall mountable with an internal or external power supply. The CDS500 includes built in non-volatile memory, which retains data if the power source is removed. The CDS500 is designed to accommodate several printing applications including receipts, coupons, tickets, daily reports, kitchen slips and delivery slips. It features a logic seeking print head, is ESC/POS compatible and features a built-in buzzer. The CDS500 also features two-color printing capability.
Questions?
1-888-875-7170
We respond to every email

Model

Print Method ?

Interface

Print Width ?

Print Speed ?

Color

Form Factor

Magstripe Option ?

Cutter Option ?

Column Capacity ?

CDS500 Options
Part # DescriptionAvailabilityPriceOrder
CD-S500AUBU-WH CDS500, Impact Printer, 76 mm, 5 lps, 40 column, USB interface with tear bar. Color: White
Ships Free in 3-5 Days
$196.80
Retail $328
Save 40%
CD-S501APAU-BK CDS501, Impact Printer, 76 mm, 5 lps, 40 column, parallel interface with cutter. Color: Black
Ships Free in 3-5 Days
$212.23
Retail $329.72
Save 35%
CD-S501APAU-WH CDS501, Impact Printer, 76 mm, 5 lps, 40 column, parallel interface with cutter. Color: White
Ships Free in 3-5 Days
$200.85
Retail $329.72
Save 39%
CD-S501ARSU-BK CDS501, Impact Printer, 76mm, 5 lps, 40 column, serial interface with cutter. Color: Black Ships Free Today $197.83
Retail $329.72
Save 40%
CD-S501ARSU-WH CDS501, Impact Printer, 76 mm, 5 lps, 40 column, serial interface with cutter. Color: White
Ships Free in 3-5 Days
$197.83
Retail $329.72
Save 40%
CD-S501AUBU-BK CDS501, Impact Printer, 76mm, 5 lps, 40 column, USB interface with cutter. Color: Black
Ships Free in 3-5 Days
$247.00
Retail $383.74
Save 35%
CD-S501AUBU-WH CDS501, Impact Printer, 76 mm, 5 lps, 40 column, USB interface with cutter. Color: White
Ships Free in 3-5 Days
$233.75
Retail $383.74
Save 39%
CD-S503ARSU-BK CDS500, Impact Printer, 76 mm, 5 lps, 40 column, serial interface, cutter with Take-Up. Color: Black Ships Free Today $225.44
Retail $375.74
Save 40%
CD-S503AUBU-BK CDS500, Impact Printer, 76 mm, 5 lps, 40 column, USB interface, cutter with Take-Up. Color: Black
Ships Free in 3-5 Days
$252.00
Retail $420
Save 40%
CD-S500-AENU-BK CDS500, Impact Printer, 76 mm, 5 lps, 40 column, Ethernet interface with tear bar. Color: Black
Ships Free in 3-5 Days
$260.40
Retail $434
Save 40%
CD-S503AENU-BK CDS500, Dot Matrix Impact Printer (76 mm, 5.0 lps, 40 Column, Ethernet Interface, Cutter and Take-Up) - Color: Black
Ships Free in 3-5 Days
$309.00
Retail $515
Save 40%
CD-S501AESU-BK CDS501, Impact Printer, 76 mm, 5 lps, 40 column, Ethernet interface with cutter. Color: Black
Ships Free in 3-5 Days
$347.99
Retail $571.26
Save 39%
CD-S501AENU-BK CD-S501, Impact Printer, 76 mm, 5.0 lps, 40 Column, Ethernet Interface with Cutter, Color: Black
Ships Free in 3-5 Days
$308.97
Retail $480
Save 35%
CD-S501AENU-WH CD-S501, Impact Printer, 76 mm, 5 lps, 40 column, Ethernet interface with cutter. Color: White
Ships Free in 3-5 Days
$308.97
Retail $480
Save 35%
CDS500SUBEWH CD-S500, Impact Printer, 76 mm, 5 lps, 40 column, USB interface with tear bar. Color: White Check Availability Call for Details
CD-S503AUBU-WH CDS500, Impact Printer, 76 mm, 5 lps, 40 column, USB interface, cutter with Take-Up. Color: White Check Availability Call for Details
CD-S503ARSU-WH CDS500, Impact Printer, 76 mm, 5 lps, 40 column, serial interface, cutter with Take-Up. Color: White Check Availability Call for Details
CD-S503APAU-WH CDS500, Impact Printer, 76 mm, 5 lps, 40 column, parallel interface, cutter with Take-Up. Color: White Check Availability Call for Details
CD-S503APAU-BK CDS500, Impact Printer, 76 mm, 5 lps, 40 column, parallel interface, cutter with Take-Up. Color: Black Check Availability Call for Details
CD-S501-AENU-WH CDS501, Impact Printer, 76 mm, 5 lps, 40 column, Ethernet interface with cutter. Color: White Check Availability Call for Details
CD-S501-AENU-BK CDS501, Impact Printer, 76 mm, 5.0 lps, 40 Column, Ethernet Interface with Cutter, Color: Black. Check Availability Call for Details
CD-S500AUBU-BK CDS500, Impact Printer, 76 mm, 5 lps, 40 column, USB interface with tear bar. Color: Black Check Availability Call for Details
CD-S500ARSU-WH CDS500, Impact Printer, 76mm, 5 lps, 40 column, serial interface with tear bar. Color: White Check Availability Call for Details
CD-S500ARSU-BK CDS500, Impact Printer, 76mm, 5 lps, 40 column, serial interface with tear bar. Color: Black Check Availability Call for Details
CD-S500APAU-WH CDS500, Impact Printer, 76mm, 5 lps, 40 column, parallel interface with tear bar. Color: White Check Availability Call for Details
CD-S500APAU-BK CDS500, Impact Printer, 76mm, 5 lps, 40 column, parallel interface with tear bar. Color: Black Check Availability Call for Details
CD-S500-AENU-CW CDS500, Impact Printer, 76 mm, 5 lps, 40 column, Ethernet interface with tear bar. Color: White Check Availability Call for Details
CD-503AENU-CW CDS500, Impact Printer, 76 mm, 5 lps, 40 column, Ethernet interface with cutter and take-up. Color: White Check Availability Call for Details

Citizen CDS500 Details

Drop-in Paper Loading, Dot Matrix Impact Printer
  • High-speed printing
  • Drop-in paper handling
  • Logic-seeking control
  • Selectable paper width
  • Two color printing
  • ESC/POS* compatibility
  • Built-in buzzer
  • Built-in NV memory
  • Multiple interface options
  • Memory switches

Specifications

Printing Method Serial dot impact (Logic-seeking control)
Printing Direction Bi-directional
Font 7x 9/9x9 matrix
Number of Columns 40/33 or 42/35 columns
Printing width 76/69.5/57.5mm
Printing Speed 5.0 lines/sec. (40 columns)
Character size (wxh) 1.25x3.12mm (7x9 dots), 1.57x3.12mm (9x9dots)
Character set Alphanumeric, International, 9-Code page versions
Line Spacing 1/144inch
Line feed speed 40 lines/sec
Paper feed method Friction
Paper 76/69.5/57.5mm +/- 0.5mm x Æ 83mm, plus one copy
Interface Centronics Parallel, Serial, USB, 10/100 base T
Input buffer 4k/40 bytes
NV bit map data area 128k
Drawer kick-out 2 drawers
Ink ribbon Red/black, Black, Purple Cassette
Power supply DC24V +/- 7%
AC adaptor Input: AC 100-230V, 1.3A Output: DC24V +/- 5%
Weight 2.8kg standard, 3.2kg with winder
Dimensions (wxdxh) 156 x 258.7 x 174.4mm (standard)

156 x 258.7 x 131.9mm (w/o AC adapter)

156 x 288.7 x 197.8mm (w/winder)

156 x 288.7 x 155.3mm (w/o AC adapter)

Operating environment 0-50°C, 10-90% RH
Storage environment -20-70°C, 5-90%RH
Reliabilty Printer:MCBF 7.5 million lines; Cutter 1 million cuts
Safety standards UL, C-UL, FCC Class A, TUV-GS, CE Marking
The Citizen CDS500 is also known as the Citizen America CDS500 .
