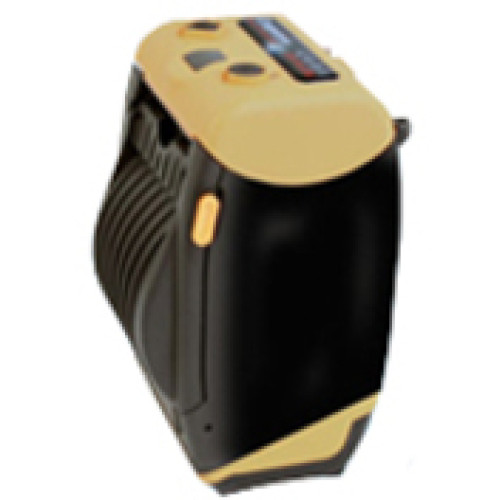

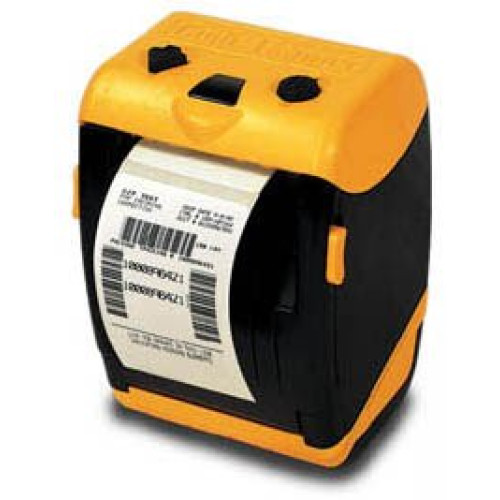

Cognitive Code Ranger Portable Barcode Printer
Part #: RD232014-0N1 | SKU: 9818

The Code Ranger is a versatile light-weight portable printer designed for high efficiency printing in any environment. With a weatherproof carrying case and a long lasting NiMH battery the Code Ranger is capable of printing in the field with ease. The modern design complements a variety of applications from retail to the warehouse floor.

Cognitive Code Ranger Portable Barcode Printer

Part Details: Code Ranger Portable Printer, Serial Interface, (203 dpi, 1.89 in. Print Width, 4 ips Print Speed, 256KB SRAM, 1MB Flash, NiMH Battery, Swivel Belt CLip, Software, and Quick-Start Guide - Battery Charger Sold Separately)

Additional Information

Manufacturer No
Model Name Code Ranger
Print Resolution No

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 1.89"
  • Recommended Use: Label Print
  • Features: Belt Clip
  • Barcode Symbology Supported:
    • UPC
    • Code 39
    • Code 128
    • Plessey
    • MSI
    • MSI1
    • Code 16K
    • EAN 128
    • Codabar
    • Maxi Code
    • PDF-417
    • Code 93
    • Industrial 2 of 5

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: RD23
  • Product Name: Code Ranger RD23 Portable Thermal Label Printer
  • Product Line: Code Ranger

Physical Characteristics

  • Height: 6.8"
  • Width: 3.6"
  • Depth: 4"
  • Form Factor: Portable

Interfaces/Ports

  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 2.20"
  • Maximum Label Length: 19"
  • Media Type:
    • Label
    • Black Bar
    • Notched
    • Receipt
    • Tag Stock
    • Roll Paper
  • Media Sensor: Reflective Media Sensor
  • Maximum Roll Diameter: 3.13"

Other

  • Platform Supported: PC
  • Package Contents:
    • Code Ranger RD23 Portable Label Printer
    • Companion CD-ROM
    • Code Ranger RD23 Portable Label Printer
    • Companion CD-ROM
  • Additional Information:
    • Very light weight
    • Withstands a six foot drop test
    • Modular design for long product life and easy upgrade ability
    • Largest media capacity, 3x capacity of other portable printers

Memory

  • Standard Memory: 256 KB
  • Flash Memory: 1 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 1 Year

Battery Information

  • Battery Chemistry: Nickel Metal Hydride (NiMH)
Extended Details
