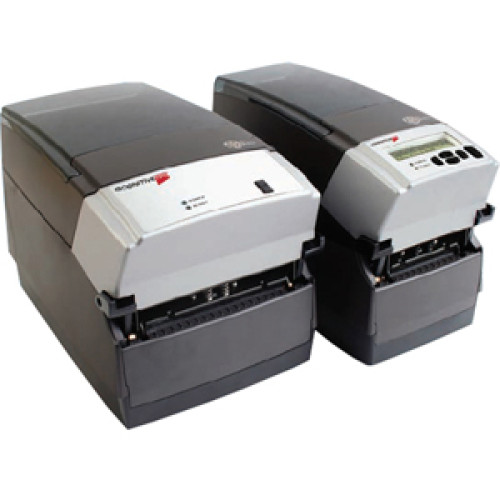

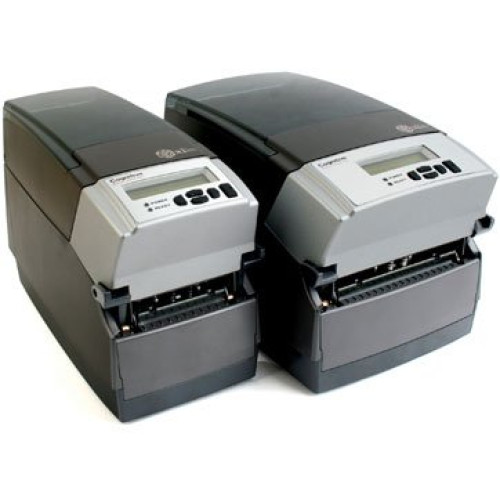

CXD2-1330-RX - CognitiveTPG Cxi Bar code Printer

The CognitiveTPG Cxi printer is the next generation of high performance thermal label printer, bridging the gap between mid-range and desktop models. With thermal label roll capacities at 7.7 inches (OD) with a 1.5" core, the Cxi equals the media capacities of all mid-range printers while maintaining a small footprint. A wide variety of connectivity options allows the Cxi to fit in any application.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
CXD2-1330-RX Cxi, C Series Direct thermal Printer (300 dpi, 2 inch Print width, 8 ips Print speed and RX)
Ships Free in 3-5 Days
$643.65
Retail $974
Save 33%
Information:   |  Download CognitiveTPG Cxi driver  |  Specifications  |  CognitiveTPG's Cxi page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |  CognitiveTPG Cxi service contract  |
Supplies:   |  CognitiveTPG Cxi Label  |  CognitiveTPG Cxi Ribbon  |

CXD2-1330-RX Details

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.12"
  • Recommended Use: Label Print
  • Features:
    • LCD Display
    • Real Time Clock
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-A+2
    • EAN-8
    • Code 128-C
    • UPC-E
    • UPC-E+5
    • EAN-13
    • Code 128
    • UPC-E1
    • Code 39
    • Plessey
    • EAN 128
    • POSTNET
    • Interleaved 2 of 5
    • Code 128-A
    • Codabar
    • Code 93
    • Code 128-B
    • MSI
    • UPC-A+
    • MSI1
    • S2 of 5
    • D2 of 5
    • Maxi Code
    • PDF-417
    • Data Matrix
    • QR Code
    • Aztec Code
    • RSS-14

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: CXD2-1330
  • Product Name: CXD2-1330 Network Thermal Label Printer

Physical Characteristics

  • Height: 7.1"
  • Width: 5"
  • Depth: 10"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Platform Supported: PC
  • Package Contents:
    • CXD2-1330 Network Thermal Label Printer
    • USB Cable
    • Core Adapter Kit
    • CXD2-1330 Network Thermal Label Printer
    • USB Cable
    • Core Adapter Kit
  • Additional Information:
    • Best performance to size ratio
    • User Replaceable Printhead Assembly & Platen
    • Fast 32 bit 200 MIPS Processor
    • Full Communication Suite
    • Large Roll Capacity for high volume applications
    • Metal main frame for extended printer life

Media Types & Handling

  • Maximum Label Width: 2.84"
  • Maximum Label Length: 26.83 ft
  • Media Type:
    • Direct Thermal Label
    • Tag
    • Wristband
    • Label
    • Fanfold
    • Receipt
    • Continuous Form
    • Gap
    • Black Bar
    • Black Mark
    • Notch
  • Media Thickness: 10 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Maximum Roll Diameter: 8"

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Warranty

  • Limited Warranty: 2 Year

Fonts & Emulation

  • Language Emulation: EcPL

The CognitiveTPG CXD2-1330-RX is also known as Cognitive-TPG COG-CXD2-1330-RX or CXD21330RX .
