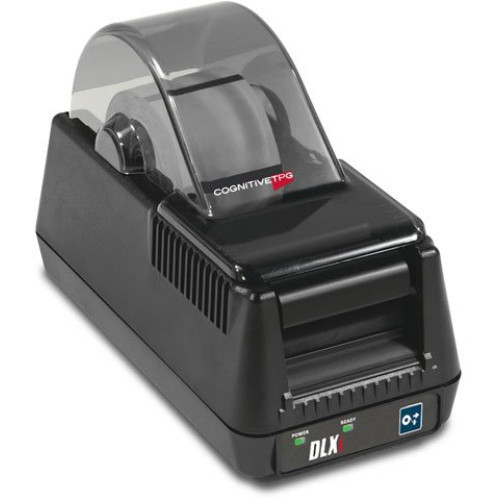

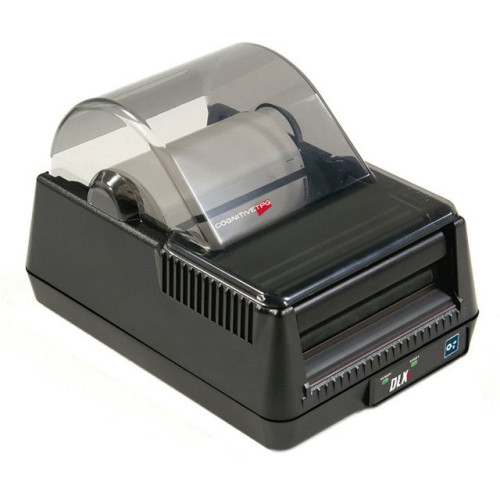

DBD42-2485-G1S - CognitiveTPG DLX i Bar code Printer

Robust and rugged are the hallmarks of our thermal label printers. The DLXi combines this legendary reliability with the latest communication interfaces and performance.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
DBD42-2485-G1S DLX i, Direct thermal Printer, 4.2", 203 dpi, Peeler, 8MB, 5 ips, 100-240 VAC Power supply, USB, USB-A, Serial, Parallel, US Power cord
Information:   |  Download CognitiveTPG DLX i driver  |  Specifications  |  CognitiveTPG's DLX i page  |
Accessories:   |  Accessories/Options  |  Bar code Software  |
Supplies:   |  CognitiveTPG DLX i Label  |  CognitiveTPG DLX i Ribbon  |

DBD42-2485-G1S Details

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.20"
  • Recommended Use: Label Print
  • Features: Peel Facility
  • Barcode Symbology Supported:
    • Add2
    • Add5
    • Codabar
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • D2 of 5
    • I-2/5
    • S2 of 5
    • EAN-13
    • EAN-13+
    • EAN-8
    • EAN-8+
    • EAN 128
    • Maxi Code
    • MSI
    • MSI1
    • PDF-417
    • Plessey
    • POSTNET
    • UPC-A
    • UPC-A+
    • UPC-E
    • UPC-E1
    • Data Matrix
    • Aztec Code
    • QR Code
    • RSS

General Information

  • Product Type: Direct Thermal Printer
  • Brand Name: CognitiveTPG
  • Manufacturer: Cognitive TPG
  • Product Model: DBD42-2485-G1S
  • Product Name: DLXi DBD42-2485-G1S Label Printer
  • Product Line: DLXi

Physical Characteristics

  • Height: 6.1"
  • Width: 6.8"
  • Depth: 9.4"
  • Form Factor: Desktop
  • Weight (Approximate): 3.90 lb

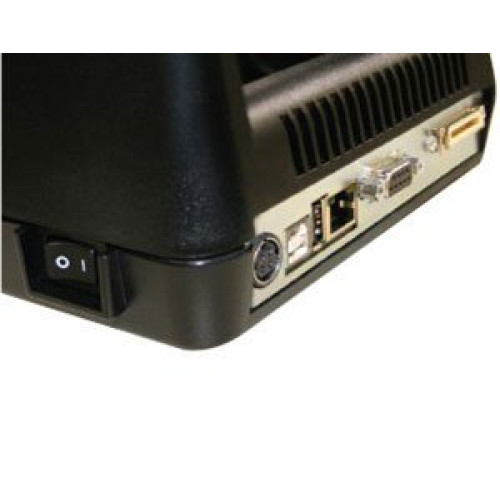

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Media Type:
    • Black Bar
    • Gap
    • Notch
  • Maximum Roll Diameter: 4.70"

Fonts & Emulation

  • Language Emulation:
    • CPL
    • ZcPL
    • EcPL

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Other

  • Platform Supported: PC

Power Description

  • Power Source: Power Adapter
Part # Description Availability Price Order
TSP-US-DLP-2 BCI Service Contracts, True Support contract 2-year - Desktop Label Printers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $54 per year for 2 years, billed annually.
Ships Free in 3-5 Days
$54.00
EXT-WARR-1YEAR-ADVANTA CognitiveTPG Service Contract - 1 Year, Extended Warranty For Advantage Series Printers
Ships Free in 3-5 Days
$44.10
Retail $62
Save 28%

The CognitiveTPG DBD42-2485-G1S is also known as Cognitive-TPG COG-DBD422485G1S or DBD422485G1S .
