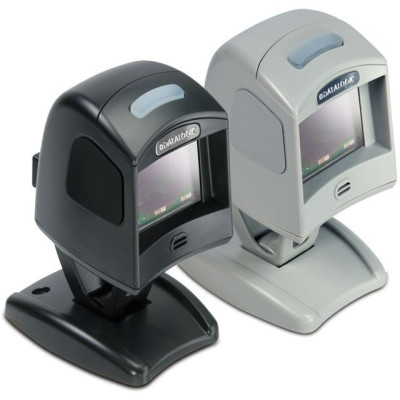

Datalogic Magellan 1100i Scanner

The Datalogic Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. The Magellan 1100i uses {mfg}'s latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.

Information:	Specifications \| Cable example images \| Ask a question \| Request a quote \|
Accessories:	Accessories/Options \|

Part #	Description	Availability	Price
MG113041-002-411	Magellan 1100i, EZKit, with Button, 1D only, USB, 12 ft. POT Cable and Stand. Color: Gray	In Stock	$306.00 Retail $778.00 Save 60%
MG112041-001-412B	Magellan 1100i, USB Kit, Button with Targeting Green Spot, 2D Decoding, Riser Stand, USB 2 m Cable, Black (Kit includes Scanner, Stand and cable.)	In Stock	$345.80 Retail $883.00 Save 60%
MG110010-000	Magellan 1100i, Multi-Interface, No Button, 1D only, Black, RS-232 Config. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 11-0387).	In Stock	$277.20 Retail $705.00 Save 60%
MG110010-000B	Magellan 1100i, Multi-Interface, No Button, 2D Decoding, Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 11-0387).	In Stock	$324.40 Retail $825.00 Save 60%
MG112010-000B	Magellan 1100i, Multi-Interface, Button with Targeting Green Spot, 2D Decoding, Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 11-0387).	In Stock	$325.10 Retail $845.00 Save 61%
MG112010-101-106	Magellan 1100i, RS-232 Kit, Button with Targeting Green Spot, 1D only, Riser Stand, Power supply (US), RS-232 DB-9 2 m Cable, Black (Kit includes Scanner, Stand, Power supply and Cable.)	In Stock	$307.90 Retail $783.00 Save 60%
MG112010-101-106B	Magellan 1100i, RS-232 Kit, Button with Targeting Green Spot, 2D Decoding, Riser Stand, Power supply (US), RS-232 DB-9 2 m Cable, Black (Kit includes Scanner, Stand, Power supply and Cable.)	In Stock	$353.70 Retail $903.00 Save 60%
MG112015-001-119	Magellan 1100i, with Green Spot, 1D only and RS-232 VeriFone Ruby Kit. Color: Black	In Stock	$326.60 Retail $823.00 Save 60%
MG112015-001-119B	Magellan 1100i, with Green Spot, RS-232 VeriFone Ruby Kit and 2D. Color: Black	In Stock	$370.10 Retail $943.00 Save 60%
MG112040-001-401	Magellan 1100i, 5V with Button, 1D only, IBM USB Cable, Stand and No Power supply. Color: Black	In Stock	$306.00 Retail $778.00 Save 60%
MG112041-001-412	Magellan 1100i, USB Kit, Button with Targeting Green Spot, 1D only, Riser Stand, USB 2 m Cable, Black (Kit includes Scanner, Stand and cable.)	In Stock	$300.10 Retail $763.00 Save 60%
MG110041-003-412	Magellan 1100i, 5V, 1D only, USB B Series POT Cable, No Power supply and No Button.Color: Black	In Stock	$291.40 Retail $741.00 Save 60%
MG112041-001-411B	Magellan 1100i, 5V, 2D, Button, USB HID Keyboard wedge POT 12 feet BCL and Stand. Color: Black	In Stock	$347.50 Retail $898.00 Save 61%
MG110041-001-412B	Magellan 1100i, USB A POT, 6 Foot, Stand, 2D Decode, No Power supply and No Button. Color: Black	In Stock	$339.40 Retail $863.00 Save 60%
MG110041-001-412	Magellan 1100i, Stand, 1D only, USB Series A POT, No Button and No Power supply.Color: Black	In Stock	$292.20 Retail $743.00 Save 60%
MG111040-002-401	Magellan 1100i, USB POT 12 ft. Cable, 1D only, Stand, No Trigger and No Power supply.Color: Gray	In Stock	$300.70 Retail $758.00 Save 60%
MG113041-002-412B	Magellan 1100i, Trigger, USB HID KB, Series A POT Cable, 2D Decode.	In Stock	$345.80 Retail $883.00 Save 60%
MG112041-000-411	Magellan 1100i, with Button, 1D only, USB HID HI-Speed 12 ft. and No Power supply.Color: Black	In Stock	$298.90 Retail $760.00 Save 60%
MG110010-101-106	Magellan 1100i, No Button, 1D only, RS-232, Power supply, Stand and cable.	In Stock	$300.10 Retail $763.00 Save 60%
MG110041-000-411	Magellan 1100i, No Trigger, 1D only, USB, POT 12 ft. Cable, Stand and No Power supply.Color: Black	In Stock	$291.00 Retail $740.00 Save 60%
MG110041-001-414	Magellan 1100i, No Button, 1D only, STD, USB HID KB Cable and No Power supply.Color: Black	In Stock	$300.70 Retail $758.00 Save 60%
MG112020-101-201	Magellan 1100i, Button, 1D only, Keyboard wedge 6MDIN, Power supply, POT 2 Meter Cable and Stand.	In Stock	$309.90 Retail $788.00 Save 60%
MG112041-001-411	Magellan 1100i, Button, 1D only, USB HID POT 12 ft. Cable, Stand and No Power supply.	In Stock	$306.00 Retail $778.00 Save 60%
MG110041-001-411	Magellan 1100i, (No Button, No Power supply, STD, USB Cable 8-0734-16) - Color: Black	In Stock	$289.00 Retail $758.00 Save 61%
MG110041-001-413	Magellan 1100i, (No Trigger, No Power supply, Stand, USB POT 12 ft. 8073408) - Color: Black	In Stock	$292.20 Retail $743.00 Save 60%
MG112010-001-119	Magellan 1100i, (with Button, RS-232 STD KI, No Power supply with VRFN GEMI POT 8074331)	In Stock	$326.60 Retail $823.00 Save 60%
MG113010-000B	Magellan 1100i, (Button with Green Spot, Multi Interface, 2D, No Cable and No Power supply)	In Stock	$325.10 Retail $845.00 Save 61%
MG112010-000	Magellan 1100i, (5V with Button, RS-232). Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 11-0387).	In Stock	$277.20 Retail $725.00 Save 61%
MG112010-101-106A	Magellan 1100i, (RS-232 Kit, Button with Green Spot, Riser, Power supply and Cable)	In Stock	$312.70 Retail $833.00 Save 62%
MG112031-001-306B	Magellan 1100i, (with Button, IBM46XX9B, 12 ft. Coil Cable, Stand, 2-D, No Power supply) - Color: Black	In Stock	$349.40 Retail $893.00 Save 60%
MG118041-000-412B	Magellan 1100i, (OEM Module, USB HID KB 2D, Series A 2 Meter POT Cable)	In Stock	$382.80 Retail $845.00 Save 54%
MG118010-000	Magellan 1100i, (OEM Module, Multi Interface, RS-232 Default, No Cable, No Power supply)	In Stock	$315.10 Retail $705.00 Save 55%
MG112010-001-105B	Magellan 1100i, (with Button, RS-232, 2D, 12 ft. Cable and Stand)	In Stock	$347.50 Retail $898.00 Save 61%

View 23 More Configurations

Datalogic Magellan 1100i Details

Decoding Capability

1D / Linear Codes
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
2D Codes
- Aztec Code
- Data Matrix
- MaxiCode
- QR Code
Stacked Codes
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MicroPDF417
- PDF417

Electrical

Current
- Operating (Typical)
  - < 400 mA
- Standby/Idle (Typical)
  - < 300 mA
Input Voltage
- 4.5 - 14.0 VDC

Environmental

Ambient Light
- Indoor
  0 to 6,000 lux
- Outdoor
  0 to 86,100 lux
Drop Resistance
- Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
ESD Protection (Air Discharge)
- 25 kV
Humidity (Non-Condensing)
- 5 - 95%
Particulate and Water Sealing
- IP52
Temperature
- Operating
  - 0 to 40 �C / 32 to 104 �F
- Storage/Transport
  - -40 to 70 �C / -40 to 158 �F

Interfaces

IBM 46xx
Keyboard Wedge
OEM (IBM) USB
RS-232
USB

Optional Features

EAS Features
- Checkpoint Systems
  - Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models
- Sensormatic
  - Good Read Acknowledgement
Value Added Features
- Diagnostic Reporting
- Host Download
- Productivity Index Reporting� (PIR)

Physical Characteristics

Colors Available
- Black
- Grey
- Other colors and custom logo options are available for minimum quantity purchase.
Dimensions
- Riser Stand
  5.8 x 7.4 x 9.7 cm / 2.3 x 2.9 x 3.8 in
- Scanner
  8.4 x 7.1 x 9.4 cm / 3.3 x 2.8 x 3.7 in
Weight
- Riser Stand
  187.1 g / 6.6 oz
- Scanner
  198.5 g / 7.0 oz

Reading Performance

Image Capture
- Optional
  752 x 480 pixels
- Graphic Formats
  - JPEG
Print Contrast Ratio (Minimum)
- 25%
Read Rate (Maximum)
- 1,768 digital scan lines/sec.
Reading Angle
- Pitch
  - +/- 65�
- Roll (Tilt)
  - 0 - 360�
- Skew (Yaw)
  - +/- 75�
Reading Indicators
- Beeper (Adjustable Tone and Volume)
- Datalogic 'Green Spot' Good Read Feedback
- Good Read LED
Resolution (Maximum)
- 0.130 mm / 5 mils
Scan Lines
- Digital
  136

Reading Ranges - Typical Depth of Field

Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
5 mils
- 1.3 to 4.6 cm / 0.5 to 1.8 in
7.5 mils
- 0.63 to 5.71 cm / 0.25 to 2.25 in
10 mils
- 0 to 12.7 cm / 0 to 5.0 in
13 mils
- 0 to 17.7 cm / 0 to 7.0 in
20 mils
- 0 to 17.7 cm / 0 to 7.0 in

Safety & Regulatory

Agency Approvals
- The product meets necessary safety and regulatory approvals for its intended use.
- The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance
- Complies to EU RoHS
LED Classification
- IEC 60825 Class 1 LED

Utilities

OPOS / JavaPOS
- JavaPOS Utilities are available for download at no charge
- OPOS Utilities are available for download at no charge
Remote Host Download
- Lowers service costs and improves operations

Warranty

2-Year Factory Warranty
