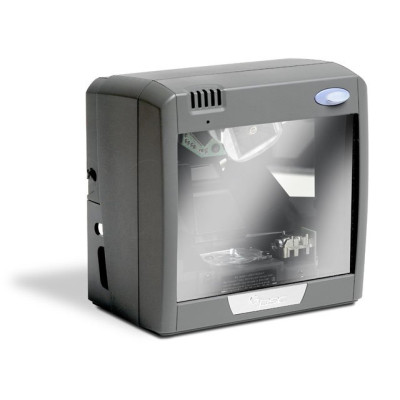

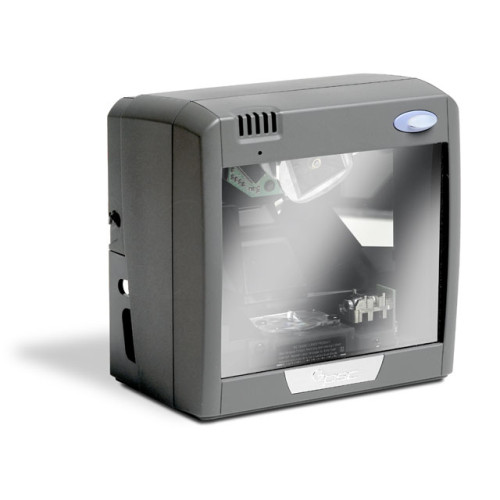

Datalogic Magellan 2200 VS Scanner

Features	Benefits
Best-In-Class Vertical Scan Volume	8% or better throughput performance than the competition Increases productivity by increasing First-Pass-Read-Rates, throughput, and ergonomics The scan pattern is optimized for both sweep and presentation scanning
Leverages Magellan Platform	New electronics provide faster data acquisition and processing Magellan 8000 series Value Added Software Features are available to improve POS productivity Symbologies, features, and operating software can easily be upgraded in Flash memory
FirstStrike Decoding Software	Faster throughput on industrial symbologies Higher read rate with truncated and poor quality labels All popular retail and supply chain symbologies are supported including RSS decoding Autodiscriminates all supported symbologies
Productivity Index Reporting	Helps identify poorly printed labels May lead to improved read rate and throughput Detects poor performing scanners and cashiers
Flash Memory	Scanner operating software is easily upgraded Memory can be accessed via the host port (through USB or RS232) or the aux port New features, symbologies, or updates for existing symbologies are easily added
New Speaker Design	Speaker design is heard even when ambient noise levels at the POS reach their loudest The four volume increments and three tone settings can easily be adjusted to each cashier’s preference at the touch of a button
RSS Decoding	Improved inventory management of produce and meat Reduces the need for cashier training by eliminating manual sku number entry
Host Diagnostic Reporting	Early warning of possible impending failures Reduces downtime Improved preventative maintenance

Magellan 2200 VS Specifications

Mechanical

Height

• 6.0” / 15.2 cm

Width

• 6.0” / 15.2 cm

Depth

• 3.41” / 8.66 cm

Weight

• 2.5 lbs. / 1.1 kg

Optical

• Scan lines: 20
• Rate: 6,000 RPM
• Depth-of-field: 8.0” / 23.3 cm
• Read height: 6.0" / 15.2 cm

Environmental

Temperature rating

• Operating: 50° to 104° F / 10° to 40° C
• Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

• Operating: 5 to 95% NC
• Storage/transport: 5 to 95% NC

Electrical

AC Power requirements

• 90-265 VAC, 47-63 Hz
• 4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)

Decoding Capability

The Magellan 2200 VS autodiscriminates between all of the following supported symbologies

• UPC Versions A&E
• UPC Supplementals (Bookland & Coupon Code)
• UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
• Reduced Space Symbology (RSS-14, expanded and stacked)
• EAN 8, 13
• JAN 8, 13
• EAN/JAN two label
• UCC/EAN 128
• Code 39 (with full ASCII)
• Code 128
• Code 93
• Interleaved 2 of 5
• Standard 2 of 5
• Italian Pharmacode
• Codabar/NW7
• MSI/Plessey

Communications

Host

• Standard RS232, IBM 46XX, IBM USB, USB Keyboard

Other

• Powered RS232 auxiliary port

Safety and Regulatory

Electrical

• EN60 950 (TÜV Europe)
• PSE-Mark (Japan)
• UL 60950 (USA)
• CSA 60950 (Canada)

Emissions

• CISPR22-B (World)
• FCC part 15 Class B (USA)
• VCCI-B (Japan)
• EN 55022-B (Europe)
• NOM (Mexico)

Laser Safety

• CDRH Class IIa (USA/Canada)
• EN 60825-1 Class 1 (Europe)
• IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation – do not stare into beam)
• IEC 60825 Class 1 (Europe)

Other

• EAS compatibility
  • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from Checkpoint Systems
• Good read acknowledgement with Sensormatic
• OPOS and JPOS Compatible
