Datalogic Magellan 2300 HS Scanner

The Datalogic Magellan 2300 HS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use horizontal scanners in the industry. The Magellan 2300 HS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2300 HS supports all popular bar code symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2300 HS will be a productive part of any enterprise for years to come.

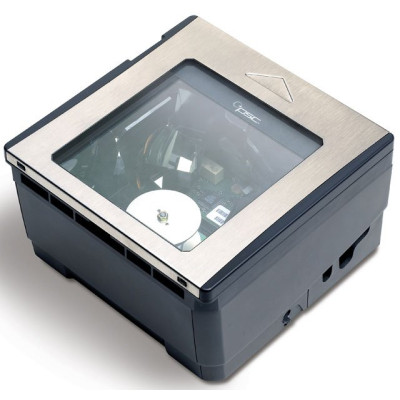

Photo of Datalogic Magellan 2300 HS
Datalogic logo
Information:  Specifications | Cable example images | Ask a question | Request a quote |
Accessories:  Accessories/Options |
Part # Description Availability Price Order
M2301-00111-0104A Magellan 2300 HS, RS-232, LLT Top, Manual, US power supply 4 $686.00
Retail $1685.00
Save 59%
M2300-00111-0104 Magellan 2300 HS, RS-232 interface cable (8-0227-04), US power supply, Standard mount 4 $534.80
Retail $1385.00
Save 61%
M2303-00111-0104A Magellan 2300 HS, Horizontal Scanner, RS-232, Tin Oxide, US Power supply, Standard Mount and Cable 8-0227-04 4 $534.80
Retail $1385.00
Save 61%
M2301-00511-0701A Magellan 2300 HS, DL Scan, Keyboard wedge Interface. Includes LLT US Power supply, Keyboard wedge Cable # 8-0735-0. 4 $661.10
Retail $1700.00
Save 61%
M2301-00111-0104 Magellan 2300 HS, LLT Top, RS-232, US Power supply, STDMOUNT and Cable 4 $663.70
Retail $1685.00
Save 60%
M2302-0111-0604AR Magellan 2300 HS, SM, Includes US Power supply 4 $616.50
Retail $1580.00
Save 60%
M2301-00111-0302A Magellan 2300 HS, Horizontal Scanner (IBM, LLT, US Power supply and IBM Cable #8022402) 4 $653.00
Retail $1680.00
Save 61%
M2301-00111-0604A Magellan 2300 HS, Horizontal Scanner (LLT, US Power supply, Standard Mount, USB Cable and RSS Enabled) 4 $644.90
Retail $1695.00
Save 61%
M2301-00112-0100A Magellan 2300 HS, Horizontal Scanner (RS-232, LLT, US Power supply, HS1250 Fill Kit and No Cable) 4 $666.80
Retail $1665.00
Save 59%
M2301-00112-0104A Magellan 2300 HS, Horizontal Scanner (RS-232, LLT, US Power supply, HS1250 Fill Kit and 8-0227-04) 4 $682.90
Retail $1695.00
Save 59%
M23-011R Magellan 2300 HS, Horizontal Scanner (LLT Sapphire Glass and RoHS) 8 $658.10
Retail $1635.00
Save 59%
M2302-00101-0308H Magellan 2300 HS, Horizontal Scanner (46XX, DLC, US, STD and 9B) 4 $624.20
Retail $1560.00
Save 59%
M2302-00110-0104A Magellan 2300 HS, Horizontal Scanner (RS-232, DLC, US Power supply, Cable #8-0227-04 and RSS Enabled) 4 $602.80
Retail $1550.00
Save 61%
M2302-00111-0701A Magellan 2300 HS, Horizontal Scanner (DLC Glass, US Power supply, Standard Mount, Keyboard wedge and RSS Active) 4 $634.10
Retail $1590.00
Save 60%
M2311-20111-0604A Magellan 2300 HS, Horizontal Scanner (USB/K, P/E, LLT, US, STD and 15, A) 4 $695.70
Retail $1745.00
Save 60%
M2360-21000-0404BR Magellan 2300 HS, Horizontal Scanner (IBM/U, MTR, N, E, MTR, N, E, MTR, N, N, 15, B and R) 4 $670.90
Retail $1545.00
Save 56%
MG23-021 Magellan 2300 HS, Horizontal Scanner (Multi Interface, DLC Top, STD Counter Mount, No Cable and No Power supply) 4 $614.20
Retail $1535.00
Save 59%
M2360-21100-0400BR Magellan 2300 HS, Horizontal Scanner (Mettler, 8217 Scale, EAS, Wegman's Config and No Top) 4 List Price:
$1490.00
 Add to cart
to see price
with instant rebate.

M23-021R Magellan 2300 HS, Multi-Interface, FirstStrike, QRG, RSS, DLC Top, Std Counter Mount, No Cable or Power supply. RoHS. 4 $596.60
Retail $1535.00
Save 61%
M23-031R Magellan 2300 HS, Multi-Interface, FirstStrike, QRG, RSS, Tin Oxide Top, Std Counter Mount, No Cable or Power supply. RoHS. 4 $522.90
Retail $1335.00
Save 60%
MG23-031 Magellan 2300 HS, Horizontal Scanner (Multi Interface, Tin Oxide, STD Counter Mount, No Cable and No Power supply) 4 List Price:
$1335.00
 Add to cart
to see price
with instant rebate.

M2311-20110-0308B Magellan 2300 HS, Horizontal Scanner (IBM 46XX, 9B, POT, 15, EAS, US CONFIG, Power supply, LLT and No Mount) 4 List Price:
$1835.00
 Add to cart
to see price
with instant rebate.

M230B-00112-01000R Magellan 2300 HS, Horizontal Scanner (RS-232, LLT, US Power supply, HS1250 Fill Kit and No Cable) 4 $666.80
Retail $1665.00
Save 59%
M230B-00112-06040R Magellan 2300 HS, Horizontal Scanner (USB LLT, Power supply, HS1250 Mount/Fill, USB 8-0732-04 RoHS) 4 $676.80
Retail $1690.00
Save 59%
M230B-00111-03020R Magellan 2300 HS, Horizontal Scanner (Enhanced, US Power supply, 46XX Cable and STD Counter Mount) 12 $653.00
Retail $1680.00
Save 61%
M230D-00101-00000R Magellan 2300 HS, Horizontal Scanner (Multi Interface, Tin Oxide Glass, No Cable and No Power supply) 4 $524.50
Retail $1335.00
Save 60%
M230B-00101-00000R Magellan 2300 HS, Horizontal Scanner (Multi Interface, Sapphire Glass and STD Counter MT) 15 List Price:
$1635.00
 Add to cart
to see price
with instant rebate.

M230B-00111-05040R Magellan 2300 HS, Horizontal Scanner (Enhanced with EAS, LLT Top, Power supply, Counter Mount STD. and RS-232 CA) 4 List Price:
$1685.00
 Add to cart
to see price
with instant rebate.

M230B-00111-06040R Magellan 2300 HS, Horizontal Scanner (Enhanced with EAS, LLT Top, US Power supply and USB Keyboard Cable) 4 List Price:
$1680.00
 Add to cart
to see price
with instant rebate.

M231C-20101-06040R Magellan 2300 HS, Horizontal Scanner (Enhanced with EAS, DLC Top, STD Counter MT and USB) 4 List Price:
$1625.00
 Add to cart
to see price
with instant rebate.

77001-00111-0104A Magellan 2300 HS, Multi I/F, Sapphire Glass, STD Mount, RS-232 PC DB-9 4.5m (15') Cable with US Power supply. (Formerly listed as Part# 77001-00111-0104) 0 Call for Details
77001-00112-0104A Magellan 2300 HS, Multi I/F, Sapphire Glass, HS1250 Mount, RS-232 PC DB-9 4.5m (15') Cable with US Power supply. (Formerly listed as Part# 77001-00112-0104.) 0 Call for Details
77003-00111-0302 Magellan 2300 HS, Multi I/F, Tin Oxide Glass, STD Mount, IBM Port 9B 4.5m (15') Cable with US Power supply 0 Call for Details
MGL23-031 Magellan 2300 HS, Multi I/F, Tin Oxide Glass, STD Mount, No Cable or Power supply 0 Call for Details
M2303-00111-0302 Magellan 2300 HS, Horizontal Scanner, 46XX, TO, N, US, US, Standard, 4P and N. 0 Call for Details
M2301-00111-0504R Magellan 2300 HS, Horizontal Scanner, Sapphire Glass, Power supply, Counter MNT. STD. and RS-232 Cable, Single Line 0 Call for Details
M2301-00112-0604A Magellan 2300 HS, Horizontal Scanner (USB LLT and Power supply) 0 Call for Details
M2301-00112-0604AR Magellan 2300 HS, Horizontal Scanner (USB LLT, Power supply, HS1250 Mount/Fill, USB 8-0732-04 and RoHS) 0 Call for Details
M23-011 This part is replaced by M23-011R.
Magellan 2300 HS, Horizontal Scanner (Sapphire Top STD, Counter Mount, No Cable and No Power supply) 		0 Call for Details
M2302-00101-0403A Magellan 2300 HS, Horizontal Scanner (DLC, Standard Mount, IBM USB POT, Cable 8-0525-03 RSS and No Power supply) 0 Call for Details
M2302-00111-0104A Magellan 2300 HS, Horizontal Scanner (RS-232, Part#, DLC, N, US, US, STD, 9P and A) 0 Call for Details
M2302-00511-0604 Magellan 2300 HS, Horizontal Scanner (DLC, USB/Keyboard wedge, US Power supply, Counter Mount and Cable-#8052504) 0 Call for Details
M2360-21100-0404BR Magellan 2300 HS, Horizontal Scanner (Mettler, 8218 Scale, No to P and EAS Interlock) 0 Call for Details
M2303-00111-0104AR Magellan 2300 HS, Horizontal Scanner (RS-232, Part#, TO, N, US, US, STD, 9P and A) 0 Call for Details
View 34 More Configurations

Datalogic Magellan 2300 HS Details

Mechanical

Length

  • 6.0” / 15.2 cm
Width
  • 6.0” / 15.2 cm
Depth
  • 3.83” / 9.7 cm
Weight
  • 2.5 lbs. / 1.1 kg

Optical

Scan lines

  • 18
Rate
  • 6,000 RPM
Scan Lines/Sec.
  • 1,800
Depth-of-field
  • 6.0” / 15.3 cm

Environmental

Temperature rating

  • Operating: 50° to 104° F / 10° to 40° C
  • Storage/transport: -40° to 158° F / -40° to 70° C

Humidity

  • Operating: 5 to 95% NC
  • Storage/transport: 5 to 95% NC

Electrical

AC Power requirements

  • 90-265 VAC, 47-63 Hz
  • 4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)

Decoding Capability

The Magellan 2300 HS autodiscriminates between all of the following supported symbologies

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Reduced Space Symbology (RSS-14 expanded and stacked)
  • EAN 8, 13
  • JAN 8, 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Code 39 (with full ASCII)
  • Code 128
  • Code 93
  • I 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar/NW7
  • MSI/Plessey

Communications

Host

  • RS232, IBM 46XX, IBM USB, USB Keyboard

Other

  • Powered RS232 auxiliary port

Safety and Regulatory

Electrical

  • EN60 950 (TÜV Europe)
  • PSE-Mark (Japan); UL 60950 (USA)
  • CSA 60950 (Canada)

Emissions

  • CISPR22-B (World)
  • FCC part 15 Class B (USA)
  • VCCI-B (Japan)
  • EN 55022-B (Europe)
  • NOM (Mexico)

Laser Safety

  • CDRH Class IIa (USA/Canada)
  • EN 60825-1 Class 1(Europe)
  • IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation – do not stare into beam)
  • IEC 60825 Class 1 (Europe)

Other

EAS compatibility

  • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from Checkpoint® Systems
  • Good read acknowledgement with Sensormatic®

The Datalogic Magellan 2300 HS is also known as the Data Logic Magellan 2300 HS .
