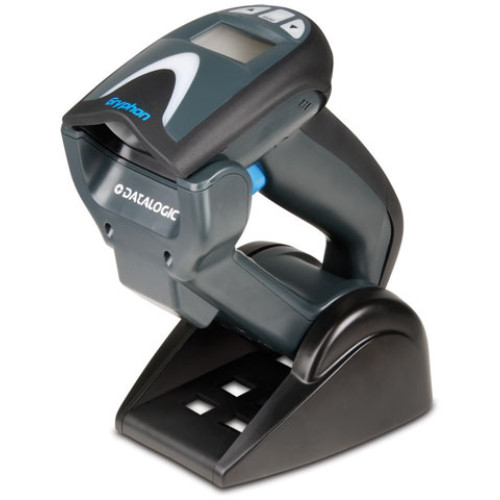

Photo of Datalogic Gryphon I: GM 4100
Datalogic logo

Datalogic Gryphon I: GM 4100 Scanner

Datalogic's Gryphon I: GM 4100 linear imager features a new, patented 2-position cradle that provides multiple solutions to answer different functional and reduced space requirements. It provides hands-free reading capabilities and a scan-while-charging feature to ensure constant up-time for increased productivity. Gryphon I: GM 4100 Batch Mode capability allows thousands of codes to be stored in memory. This feature combined with a long lasting 50K scans per charge Lithium-Ion battery allows unlimited mobility and reliable data collection when out-of-range from the base station. Featuring Datalogic's exclusive patented �Green Spot' for good read feedback directly on the code, it helps to improve productivity especially in noisy environments. When using the product with the cradle at a 45-degree position, the Green Spot can work as an aiming system remaining on to aid in positioning the code for quick and intuitive reading. Standard multi-interface capabilities (GM4130) provide host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation while IBM interface models (GM4110) provide connectivity via IBM 46XX, USB and RS-232 emulation. The Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
Questions?
1-888-875-7170
We respond to every email

Connectivity

Scanner Capability

Form Factor

Scanner Type

Color

Scan Pattern

Included Cables ?

Communication Type ?

Ruggedness

Gryphon I: GM 4100 Options
Part # DescriptionAvailabilityPriceOrder
GM4100-BK-910 Gryphon I: GM 4100, SCANNER ONLY, Linear Imager, 910 MHz. Color: Black. Cables and accessories must be purchased separately. For a full kit purchase (Part# GM4130-BK-910K1). Ships Free Today $200.37
Retail $374
Save 46%
GM4100-WH-910 Gryphon I: GM 4100, SCANNER ONLY, Linear Imager, 910 MHz. Color: White. Cables and accessories must be purchased separately. For a full kit purchase (Part# GM4130-WH-910K1).
Ships Free in 3-5 Days
$200.37
Retail $374
Save 46%
GM4130-BK-910K1 Gryphon I GD4100 Series: GD4130, USB kit, 910 MHz. Includes base unit and USB cable. Power is provided by USB cable - for increased range and faster charging see (Part# 90ACC1893). Color: Black Ships Free Today $356.55
Retail $652
Save 45%
GM4130-WH-910K1 Gryphon I: GM 4100, USB kit, 910 MHz. Includes base unit and USB cable. Power is provided by USB cable - for increased range and faster charging see (Part# 90ACC1893). Color: White. Ships Free Today $356.55
Retail $652
Save 45%
GM4130-BK-910K2 Gryphon I: GM 4100, RS-232 Serial kit, 910 MHz. Includes base unit, serial cable and power supply. Color: Black. Ships Free Today $367.71
Retail $673
Save 45%
DTLGM4130-UB-USK1 Gryphon I GM4100, USB interface kit, 910 MHz. Includes base unit and USB cable. Power is provided by USB cable - for increased range and faster charging see (Part# 90ACC1893). Color: Black Ships Free Today $347.29
Retail $652
Save 46%
GM4100-BK-433 Gryphon I: GM 4100, SCANNER ONLY, 433 MHz. Color: Black. Cables and accessories must be purchased separately. For Non-US Use Only. See Replacement Call for Details
GM4130-WH-910K2 Gryphon I: GM 4100, RS-232 Serial kit, 910 MHz. Includes base unit, serial cable and power supply. Color: White. Check Availability Call for Details
GM4130-WH-433K2 Gryphon I: GM 4100, RS-232 Serial kit, 433 MHz. Includes base unit, serial cable and power supply. Color: White. For Non-US Use Only. Check Availability Call for Details
GM4130-BK-433K2 Gryphon I: GM 4100, RS-232 Serial kit, 433 MHz. Includes base unit, serial cable and power supply. Color: Black. For Non-US Use Only. Check Availability Call for Details
GM4100-WH-433 Gryphon I: GM 4100, SCANNER ONLY, 433 MHz. Color: White. Cables and accessories must be purchased separately. For Non-US Use Only. Check Availability Call for Details
GM4100-BK-D910 Gryphon I: GM 4100, SCANNER ONLY, Linear Imager, 910 MHz, Display. Color: Black. Cables and accessories must be purchased separately. Check Availability Call for Details
GM4100-BK-D433 Gryphon I: GM 4100, SCANNER ONLY, 433 MHz, Display. Color: Black. Cables and accessories must be purchased separately. For Non-US Use Only. Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
STD-AUTO-G040-BK Auto Stand (Black) for the GD4130 Ships Free Today $28.14
Retail $31
BC4030-BK-910 Base/Charger for the GM4100. Multiple interface, 910 MHz, cables and power supply not included. Color: Black Ships Free Today $148.69
Retail $262
Save 43%
BC4030-WH-910 Base/Charger for the GM4100. Multiple interface, 910 MHz, cables and power supply not included. Color: White
Ships Free in 3-5 Days
$148.69
Retail $262
Save 43%
BC4010-WH-910 Base/Charger for the GM4100. Multiple interface/IBM, 910 MHz, cables and power supply not included. Color: White
Ships Free in 3-5 Days
$146.78
Retail $271
Save 45%
BC4010-BK-910 Base/Charger for the GM4100. Multiple interface/IBM, 910 MHz, cables and power supply not included. Color: Black
Ships Free in 3-5 Days
$146.78
Retail $271
Save 45%
90A052086 Cable, (12 feet, RS-232, 9 Pin, STR, EXTERNAL POWER SUPPLY or POT) for the Gryphon
Ships Free in 3-5 Days
$21.12
Protect Your Product
Datalogic Service Contract - 3 year (Q-GM41-3)
Gryphon I GM4100, Ease of Care Overnight Replacement Comprehensive
Ships in 3-5 Days
$49.00
+ Add to Quote
Datalogic Service Contract - 3 year (W-GM41-3)
Gryphon I GM4100, Ease of Care 2 Days Comprehensive
Ships in 3-5 Days
$29.00
+ Add to Quote

Datalogic Gryphon I: GM 4100 Details

The Gryphon family represents the premium line of Datalogic ADC's general purpose handheld data collection products. The Gryphon GM4100 cordless linear imaging readers offer the richest feature set among general purpose product offerings.
Extremely versatile and durable, the Gryphon GM4100 cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity. Mobile communications also eliminate the restraints caused by cabled devices, providing a safer and more efficient environment for employees.

Narrow band radio communications with Datalogic's STAR Cordless System is the key to increased productivity and flexibility in the workplace. The GM4100 reader series offer scalable solutions from simple point-to-point applications to networking capabilities for complex installations. An optional display with a 3-button keypad provides battery status, radio coverage indicator and enables operator interaction with the host system.

Datalogic's new, patented 2-position cradle provides multiple solutions to answer different functional and reduced space requirements. It provides hands-free reading capabilities and a scan-while-charging feature to ensure constant up-time for increased productivity.

GM4100 Batch Mode capability allows thousands of codes to be stored in memory. This feature combined with a long lasting 50K scans per charge Lithium-Ion battery allows unlimited mobility and reliable data collection when out-of-range from the base station.

Standard multi-interface capabilities (GM4130) provide host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation while IBM interface models (GM4110) provide connectivity via IBM 46XX, USB and RS-232 emulation.

Features
  • Fastest speed-to-read: 325 reads/second
  • Radio frequencies available in 433 MHz or 910 MHz
  • Radio Range (open air) up to 30.0 m / 98.4 ft for 433 MHz, up to 15.0 m / 49.2 ft for 910 MHz

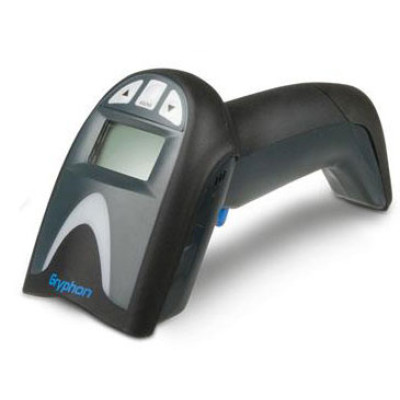

  • Optional display with 3-Key keypad
  • Point-to-point and multi-point transmission
  • Datalogic's patented 2-position cradle with Scan-While-Charging capability
  • Datalogic's patented ?~Green Spot' technology for good-read feedback
  • Optional Counterfeit Detection
  • USB Certified Kits Available
The Datalogic Gryphon I: GM 4100 is also known as the Data Logic Gryphon I: GM 4100 .
