- VisualSetup Software Tool included in the package
- Intuitive aiming
- Image capture
- Omnidirectional scanning
- Sunrise 2005 Compliant
- Autodiscrimination of linear and 2D codes
- Multi-standard interface: USB, RS-232, Wedge AT IBM
- Support most popular 1D, 2D, Stacked and Postal codes
General Description

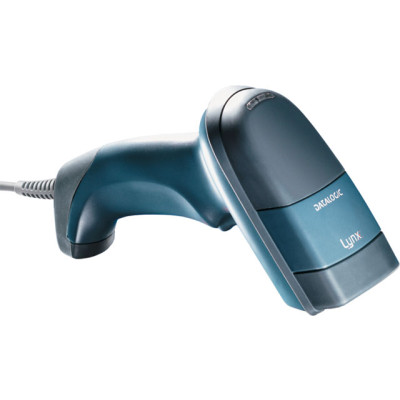

The latest addition to the Datalogic line is the Lynx, available
in two models for standard and high resolution codes. The Lynx
family performs omnidirectional reading on a wide range of
symbologies from the most common 1D and 2D codes to stacked and
postal codes, improving productivity and efficiency in any
application. In fact, with the Lynx the user captures the whole
image of the object to be identified no matter how it is
orientated, thus avoiding any alignment constraint between the
reader and the symbol to be read. Furthermore, the Lynx can be used
for image-based applications like signature capture and OCR. The
captured image can be processed on board or downloaded in different
formats (.bmp, .jpg, .tif) for image processing on the host side.
Also, the new image capture function allows complete image
management. Up to 4 acquisition options allow image manipulation:
zoom (from 20% to 200%), contrast, brightness (?100%) and
windowing. Aiming at the image to be captured is easy and intuitive
thanks to the double-click trigger for Point & Read, and to the
"five dot pointer" that marks the four corners and center of the
reading area. All models are equipped with a multistandard
interface for connection to the host via USB (COM and wedge
emulation), RS232 or Wedge emulation interface. Finally, the
VisualSetup software tool included in the Lynx package allows easy
configuration of all the parameters to personalize the reader for
any application as well as a quick view of the downloaded
images.
Features
Omni directional scanning
Support most popular 1D, 2D, Stacked and Postal codes
Autodiscrimination of linear and 2D codes
Image capture
Intuitive aiming
Multi-standard interface: USB, RS232, Wedge AT IBM
VisualSetup Software Tool included in the package
Sunrise 2005 Compliant
Specifications
Electrical Characteristics
Power Supply: 10 to 30 VDC
Consumption: 182mA @12V (stand-by)
300 mA@12V (typical)
360 mA@10V (peak current)
Performance
Aiming: Visible laser diode @ 650 nm
Max. Resolution: Linear: 4 mils ; Datamatrix 6.6 mils (Standard
Resolution)
Linear: 2 mils; datamatrix: 4 mils (High Resolution)
Reading Field: 21.8° (H) x 16.7° (V) (Standard Resolution), 20°
(H) x 15° (V) (High Resolution)
Print Contrast Value (min.): PCS=23%
Reading Angle: Skew ?40° (Standard Resolution), ?60° (High
Resolution); Pitch ?35° (Standard Resolution), ?50° (High
Resolution) Tilt 360°
Sensor: 640 X 480 element, 2D CMOS array
Laser Classification: Class 2 (IEC 825-1 and CDRH)
Bar codes: 1D: Interleaved 2 of 5, Code39, Code128, EAN 128,
Code93, UPC/EAN/JAN, Codabar. 2D:PDF417, DataMatrix, QR
Postal Codes:: POSTNET, PLANET, Japan Post, Australian Post,
KIX Code, Royal Mail Code (RM4SCC)
Image And Signature Capture: 640 x 480 VGA (8 bit gray scale),
320 x 240 CIF (8 bit gray scale)
Interfaces: RS232, Wedge AT IBM; USB
Mechanical Characteristics
Dimensions: 203 x 117.2 x 68.9 mm
Weight: 265 g (without cable)
Environment
Ambient Light Immunity: 0 to 100,000 lux
Operating Temperature: 0 to 50 °C
Storage Temperature: -20 to 70 °C
Humidity: 0 to 95% non condensing
Drop Resistance: 1.8 m multiple drops
