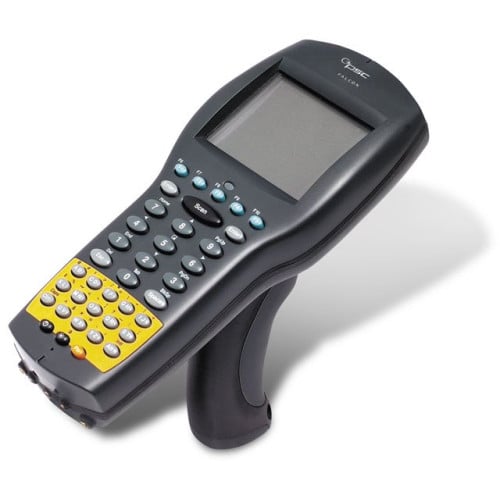

Datalogic Falcon 345 Mobile Computer
Part #: 345-1101-015 | SKU: DAT26027

The Falcon 345 is the latest member of the growing family of feature-rich Falcon Industrial Data Collection Terminals from PSC. Engineered for fast accurate customizable real-time automatic data collection to solve the needs of businesses in their quest for greater efficiency productivity and profitability. The Falcon 345 was designed for easy integration in the supply chain systems of companies involved in logistics manufacturing retailing warehousing and distribution. At the heart of the Falcon 345 Portable Data Terminal is a powerful 32 bit 486 class processor running at 33MHz with 8MB of RAM and 2MB of Flash ROM. This flexible architecture also supports an internal PCMCIA Type II PC card for additional memory or wireless LAN connectivity. Because the Falcon 345 use a standard operating system DOS 6.22 you can run applications previously developed for other Falcon terminals and other DOS terminals. You can also use popular PC development tools like PSC's Universal Program Generator (UPG) or RF SDK to create custom applications for your data collection needs.

Datalogic Falcon 345 Mobile Computer

Part Details: Falcon 345 Wireless Portable Data Terminal (with Cisco Radio, 25-Key Keypad and Standard Laser)

Additional Information

Manufacturer Datalogic
Model Name Falcon 345
Operating System DOS
RAM Memory 8 MB
Scanner Type Laser
Style Gun

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • JAN-8
    • JAN-13
    • EAN Add-ons
    • Code 128
    • Interleaved 2 of 5
    • Code 39
    • Standard 2 of 5
    • Code 39 Full ASCII
    • Matrix 2 of 5
    • Code 93
    • MSI/PLESSEY
    • Code 11
    • Codabar
    • ISBN Conversion
    • Label Codes 4/5
    • Ames

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 345
  • Product Name: Falcon 345 Portable Data Terminal
  • Product Line: Falcon

Physical Characteristics

  • Height: 1.6"
  • Width: 3.4"
  • Length: 7.8"
  • Weight (Approximate): 1.08 lb

Other

  • Certifications & Standards:
    • Electrical:
    • CE
    • Emissions:
    • FCC Part 15 - Class A
    • Laser Classification:
    • CDRH Class II
    • IEC 60825 Class 2
  • Additional Information:
    • RF Card
    • IR Communication Ports:
    • Communication with Falcon IR dock
    • Supports IR portable printer
    • IrDA compatible
    • Speaker:
    • Programmable for volume, duration and pitch
    • 84 dB @ 24"

Display & Graphics

  • Display Screen Type: LCD
  • Number of Lines: 16
  • Number of Characters: 26
  • Screen Resolution: 128 x 160

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b

Keyboard/Keypad

  • Keyboard Type: Numeric
  • Number of Keys: 25

Memory

  • Flash Memory: 2 MB
  • Standard Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: DOS

I/O Expansions

  • Expansion Slot Type: PC Card Type II

Processor & Chipset

  • Processor Speed: 33 MHz
Extended Details
