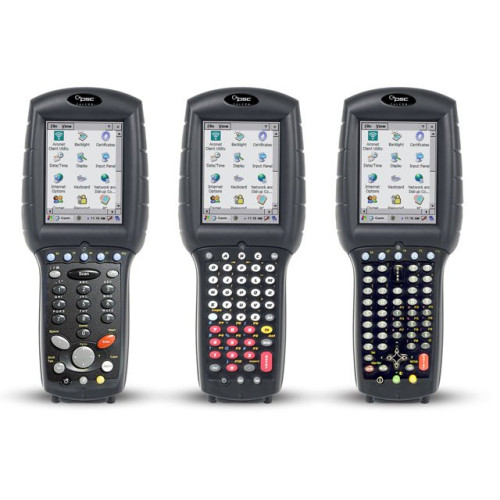

Datalogic Falcon 4420 Mobile Computer
Part #: 4420-11221 | SKU: DAT15222

The Falcon 4420 features the Intel XScale PXA255 400MHz processor and the Microsoft Windows CE.NET or Windows Mobile operating systems, providing you with the power and flexibility to deploy sophisticated mobile applications in your enterprise. The Intel XScale processor provides you with the highest performing mobile processor available today along with advanced power management capabilities for extended battery life.

Datalogic Falcon 4420 Mobile Computer

Part Details: Falcon 4420 Wireless Color Portable Data Terminal (Cisco, 64MB RAM, 64MB Flash, 52-Key Keypad and Standard Laser)

Additional Information

Display Resolution 240 x 320
IP Rating IP54
Manufacturer Datalogic
Model Name Falcon 4420
Operating System Windows CE .NET
RAM Memory 64 MB
Scanner Type Laser
Style Gun

Technical Information

  • Operating System: Windows CE .NET
  • Processor: Intel XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • Cisco Leap
    • Cisco Peap
    • EAP-TLS+ Microsoft PEAP
    • EAP-FAST
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • EAN-13
    • EAN-8
    • Interleaved 2 of 5
    • MSI/PLESSEY
    • Pharmacode 39
    • Standard 2 of 5
    • Trioptic
    • UPC-A
    • UPC-E
    • UPC/EAN Extensions
    • Code 32
    • Code 16K
    • Code 39 Full ASCII
    • EAN-UCC Composite
    • RSS-Limited
    • RSS-14
    • Matrix 2 of 5

General Information

  • Manufacturer: PSC Inc.
  • Product Line: Falcon
  • Product Name: Falcon 4420 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Active Matrix TFT LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: PC Card Type I/II
  • Keyboard: 52 Key Alphanumeric Integrated
  • Battery Capacity: 2000 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 7.2" (183mm) x 3.4" (86mm) x 8.9" (226mm)
  • Weight: 19.4 oz

Agency Approvals

  • Agency Approvals:
    • EN60950
    • UL60950
    • CSA60950
    • IATA/UN
    • FCC Part 15C
    • EN55022
    • VCCI
    • ICES-003
    • CNS 13438
    • AS/NZS 3548
    • CDRH Class II
    • IEC 60825-1 Class 2

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • 15kV Air Discharge
    • 8kV Contact Discharge
  • Drop Spec: 5' To Concrete

Other

  • Package Contents:
    • Falcon 4420 Mobile Computer
    • Battery
    • Falcon Management Utility
    • Falcon Desktop Utility Software

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Datalogic Falcon 4420 Mobile Computer

  • Datalogic 4410 & 4420 Accessory
    Part #: 4420-USB-STARTER | SKU: 26901

    Falcon 4420 USB Starter Kit. Includes everything you need to run your Falcon 4420: charging/communications cradle and USB cable. For units with color displays only.
  • Datalogic 4410 & 4420 Accessory
    Part #: 95ACC1161 | SKU: 53599

    Belt (for Falcon Holster/Soft Case)
    MSRP: $40.00 Price: $33.66
  • Datalogic 4410 & 4420 Accessory
    Part #: 94ACC1387 | SKU: 127490

    FALCON X3 HOLSTER
    MSRP: $76.00 Price: $58.38
  • Datalogic 4410 & 4420 Spare Parts
    Part #: 95ACC1030 | SKU: 76951

    Kit (ACC, RAM Mount, 2.5 Inch Arm, 1.5 Inch Ball)
    MSRP: $117.00 Price: $89.86
  • Global Technology Systems Datalogic Replacement Batteries Battery
    Part #: H4420-LI | SKU: 46062

    The H4420-Li is a direct replacement battery for Datalogic Falcon 4420 series scanners. 2400 mAh, Li-Ion, 3.7 Volts 12 Month Warranty. OEM Part Number: BTRY-11-0023.
    MSRP: $54.68 Price: $43.62
