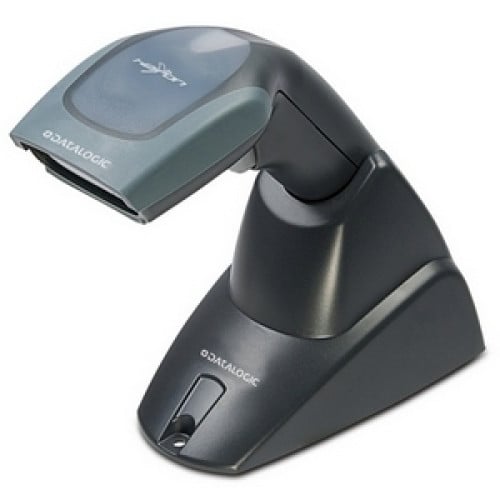

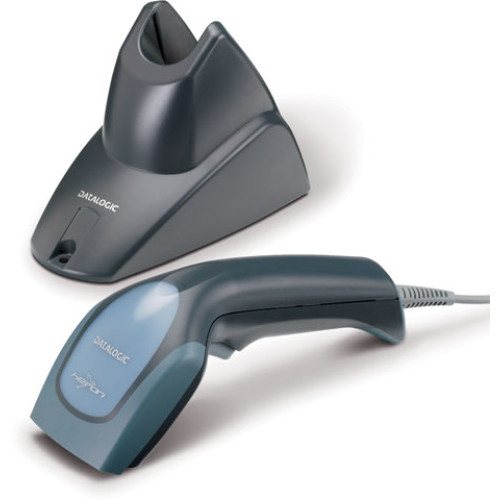

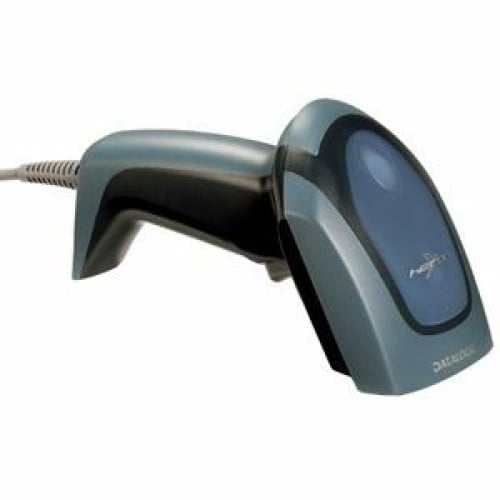

901801013 - Datalogic Heron Series Bar code Scanner

Designed for small retail POS applications the Heron Series delivers high performance to fulfill the needs at the POS. Based on the "Instinctive Reading Distance" concept (from near contact to over 20cm) the Heron Series provides direct visual feedback to the user letting them know the quality of every scan.

Part # Description Availability Price Order
901801013 Heron, D130, Kit, Linear Imager, RS-232/USB/Keyboard wedge/Wand Multi-Interface, Black (Kit inc. Imager and USB cable)
Information:   |  Specifications  |  Datalogic's Heron Series page  |
Accessories:   |  Accessories/Options  |  Datalogic Heron Series service contract  |

901801013 Details

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 256 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • Industrial 2 of 5
    • Code 39 (plus Code 32 Cip 39)
    • EAN/UPC
    • EAN-128
    • Code 128
    • Code 93
    • Codabar
    • Telepen
    • Plessey
    • Code 49
    • Code MSI
    • Code Delta IBM
    • Code 11
    • Code 16K
    • ISBN/ISSN
    • ISBT 128
    • RSS Variants
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Code 39 (plus Code 32 Cip 39)
    • EAN/UPC
    • EAN-128
    • Code 128
    • Code 93
    • Codabar
    • Telepen
    • Plessey
    • Code 49
    • Code MSI
    • Code Delta IBM
    • Code 11
    • Code 16K
    • ISBN/ISSN
    • ISBT 128
    • RSS Variants
    • Interleaved 2 of 5
  • Maximum Scan Resolution: 4 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: D130
  • Product Name: Heron D130 Barcode Reader
  • Product Line: Heron

Physical Characteristics

  • Color: Black
  • Weight (Approximate): 5.65 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards: RoHS Compliance

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
90ACC1874 Datalogic Hands-free stand for Heron Ships Free Today $20.45
Retail $26
Save 21%
TSP-US-SC-3 Barcodes True Support Contract 3-year, $48 per year for 3 years, billed annually. True Support contract 3-year- Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading Ships Free Today $48.00
Q-HRN-3 Datalogic Service Contract - 3 year, Heron, Ease of Care Overnight Replacement Comprehensive Ships Free Today $20.00

The Datalogic 901801013 is also known as Data Logic DTL-901801013 .
