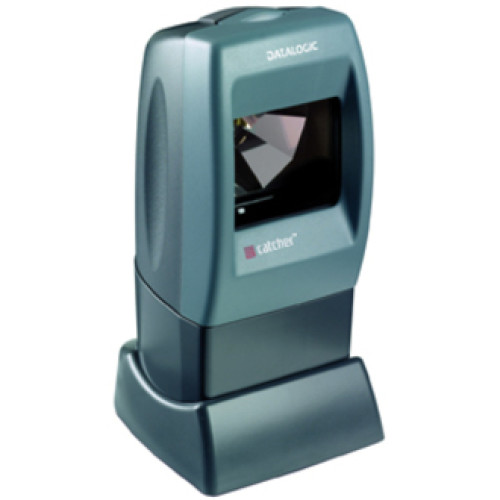

Datalogic Catcher D531 Barcode Scanner
Part #: 902311000 | SKU: DAT24613

The Datalogic Catcher D531 guarantees outstanding reading performance in distribution and retail applications thanks to its state-of-the-art optics and electronics. The omni-directional reading pattern of 20 lines and 1,500 scans per second assure the highest "First Pass" decoding rate, an important feature in applications that require immediate and intuitive reading. The Catcher D531 has architecture that offers unique functions to the market. The advanced technology used for decoding increases the reading performance by making it easy to read damaged or poorly printed codes. The Data Editing and Data Formatting modes allow the code to be completely formatted before the information is sent to the host. In addition, thanks to the flash memory, the reader can be updated on the field, providing it with new functions and allowing it to read new symbologies.

Datalogic Catcher D531 Barcode Scanner

Part Details: Catcher D531, Catcher Presentation Scanner (D531, RS-232, USB and Wedge)

Additional Information

Manufacturer Datalogic
Model Name Catcher D531

Technical Information

  • Form Factor: Presentation Scanner
  • Barcode Dimension: 1D
  • Symbologies Supported:
    • Interleaved 2 of 5
    • Code 39
    • Code 128
    • EAN/UPC
    • EAN-128
    • Code 11
    • Code 93
    • RSS
  • Scanner Type: Laser
  • Scan Rate: 1500 scans/sec
  • Interface Options:
    • USB
    • Keyboard Wedge
    • RS-232
  • Interface Connectivity: Corded
  • Scan Pattern: Single Line
  • Input Voltage: 5 V DC
  • Battery Capacity: 350 mAh

General Information

  • Manufacturer: Datalogic S.p.A
  • Product Line: Catcher
  • Product Name: Catcher D531 Barcode Scanner

Physical Characteristics

  • Dimensions: 150mm (5.91") x 85mm (3.35")
  • Weight: 340 g - w/o cable

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 0 to 95% Non-condensing

Agency Approvals

  • Agency Approvals: RoHS Compliance

Warranty

  • Manufacturer Warranty: 2 Year(s)
