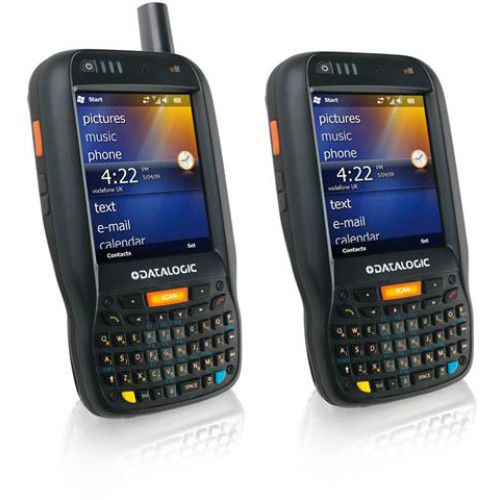

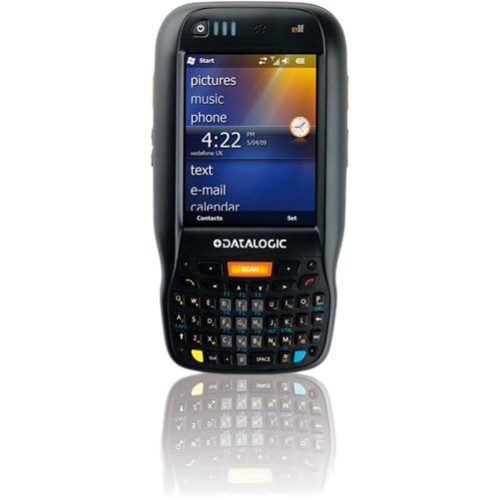

Datalogic Elf Mobile Computer
Part #: 944300032 | SKU: DAT156695

Capitalizing on Datalogic's legendary ergonomics, the Elf PDA packs unprecedented features into a compact form factor built for single handed use. Use of an accelerometer eliminates awkward presentation of on screen data and a unique guitar pick stylus provides for intuitive touch screen navigation. Both a 1D laser scanner and 2D bar code imager enable a wide array of bar codes seen across diverse enterprises. Both have Datalogic’s patented 'Green Spot' good-read technology to improve user efficiency.

Datalogic Elf Mobile Computer

Part Details: Elf, Bluetooth, V2.0, 802.11a/b/g, 2D, Windows CE 6.0,46 key QWERTY

Additional Information

Manufacturer Datalogic
Model Name Elf

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported:
    • UPC A
    • UPC E
    • EAN 8
    • EAN 13
    • Interleaved 2of 5
    • Code 39
    • Code 39 Full ASCII
    • Codabar
    • Code 128
    • EAN 128
    • Code 93
    • MSI
    • PDF417
    • Micro PDF
    • DataMatrix
    • QR
    • GS1 Databar
    • Aztec
    • Maxicode
    • POSTNET
    • PLANET
    • Japan Post
    • Australia Post
    • KIX Code
    • Royal Mail RM4SCC
    • USPS 4CB
    • UPU FICS

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Name: elf Handheld Terminal
  • Product Line: elf

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 1.7"
  • Weight (Approximate): 15.52 oz

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • Cellular Data Connectivity Technology:
    • HSDPA
    • UMTS

Memory

  • Flash Memory: 256 MB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital High Capacity (SDHC)

Battery Information

  • Battery Capacity: 5000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Display & Graphics

  • Display Screen Type: LCD
  • Display Color: Color
  • Screen Resolution: 480 x 640

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 624 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows CE 6.0

Keyboard/Keypad

  • Keyboard Layout: QWERTY
Extended Details

Recommended Accessories for Model: Datalogic Elf Mobile Computer

  • Datalogic Elf Power Device
    Part #: 94ACC1381 | SKU: 102470

    Power supply for single slot dock, regional plugs included
    MSRP: $59.00 Price: $45.97
    In Stock
  • Datalogic Elf Spare Parts
    Part #: 94ACC1379 | SKU: 87004

    Holster (Includes Belt Clip) for the Elf
    MSRP: $33.00 Price: $29.52
  • Datalogic Elf Spare Parts
    Part #: 94ACC1372 | SKU: 100559

    Datalogic 94ACC1372 Single Slot PDA Cradle - Wired - PDA - Charging Capability - Proprietary Interface
  • Datalogic Elf Spare Parts
    Part #: 94ACC1382 | SKU: 100561

    Datalogic 94ACC1382 Guitar Style Stylus with Cord - 5 Pack
  • Datalogic Elf Accessory
    Part #: 94A151130 | SKU: 100556

    Datalogic 94A151130 Powered Mobile Dock - Wired - PDA - Charging Capability
