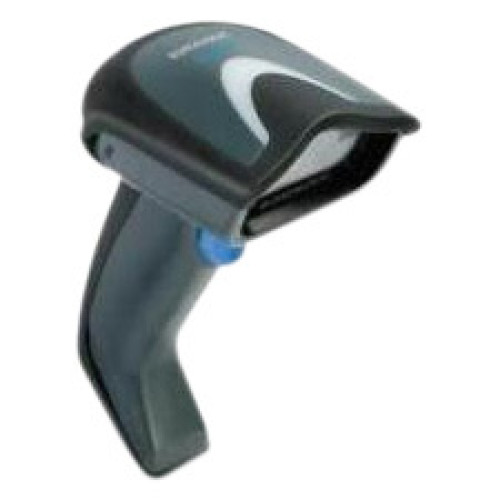

GBT4100-HC - Datalogic GBT4100-HC Bar code Scanner

The Datalogic GBT4100-HC healthcare reader with disinfectant-ready housing features a batch mode capability allows more than 1200 bar codes to be stored in the memory. Combined with a 33,000 scans per charge Lithium-Ion battery, these two features create unlimited mobility and reliable data collection when out-of-range. Datalogic's exclusive patented 'Green Spot' for good-read feedback helps to improve productivity in noisy environments or in situations where silence is required. When using the GBT4100-HC with the cradle at a 45 degree position, the Green Spot can work as an aiming system to aid in positioning the bar code for quick and intuitive reading. Standard multi-interface capabilities include USB, RS-232, Keyboard Wedge and Wand Emulation for the GBT4130 models. IBM interface models include IBM 46XX, USB and RS-232 Emulation for the GBT4110 models. The Datalogic Aladdin configurator provides user-friendly features that simplify the start-up procedure.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
GBT4100-HC GBT4100-HC, SCANNER ONLY, Disinfectant-ready Health care Housing, Linear Imager. Color: White. Interface cable, base station, and power supply sold separately.
Ships Free in 3-5 Days
$233.53
Retail $417
Save 43%
Information:   |  Specifications  |  Datalogic's GBT4100-HC page  |
Accessories:   |  Accessories/Options  |  Datalogic GBT4100-HC service contract  |

GBT4100-HC Details

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 325 scan/s
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates all standard 1D codes including GS1 DataBar linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 2.30" - 7"@5 mil
    • 1.40" - 11.70"@7.50 mil
    • 0.80" - 17.70"@10 mil
    • 1.20" - 23.40"@13 mil
    • 1.20" - 31.20"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GBT4100
  • Product Name: Gryphon GBT4100 Handheld Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Weight (Approximate): 7.94 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • China RoHS
    • RoHS

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Radio Frequency: Yes

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
BC4030-HC-BT Datalogic GBT4100-HC Accessories, Charging/communications base unit for GBT4100-Health care Bluetooth scanner
Ships Free in 3-5 Days
$164.97
Retail $294
Save 43%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
Q-GBT41-3 Datalogic Gryphon I: GBT 4100, Gryphon I GBT4100, Ease of Care Overnight Replacement Comprehensive
Ships Free in 3-5 Days
$47.00

The Datalogic GBT4100-HC is also known as Data Logic DTL-GBT4100-HC or GBT4100HC .
