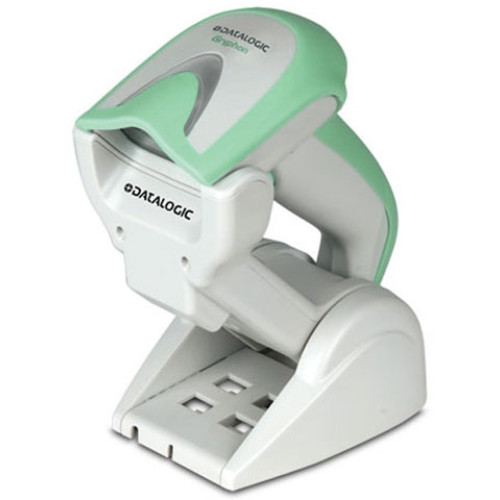

GBT4430-HC-BTK1 - Datalogic GRYPHON I GBT4400-HC 2D Bar code Scanner

Fast, snappy, omnidirectional reading makes the Gryphon GBT4400-HC 2D imager ideal for use in signature capture and document scanning applications. High speed imaging and motion tolerance enables reading of fast moving codes, allowing you to quickly move from one code to the next. Featuring Bluetooth wireless technology, it can transmit data to the host through the base station as well as to any commercial or embedded Bluetooth wireless technology v2.0 compliant device.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
GBT4430-HC-BTK1 GRYPHON I GBT4400-HC 2D, USB Kit, 2D Imager, Cordless, Health care Disinfectant-ready. Includes base station and cables. Ships Free Today $526.56
Retail $973
Save 45%

GBT4430-HC-BTK1 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 7 mil
  • Depth of Field:
    • 1.60" - 7.50"@5 mil - Code 39
    • 0.40" - 11.80"@10 mil - Code 39
    • 0.80" - 6.30"@10 mil - Data Matrix
    • 0 mil - 9.30"@15 mil - Data Matrix
    • 0.60" - 15.70"@13 mil - EAN-13
    • 0.20" - 8.60"@10 mil - PDF417
    • 1.20" - 4.90"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GBT4400
  • Product Name: Gryphon GBT4400 Handheld Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 8.64 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • China RoHS
    • RoHS
  • Package Contents:
    • Gryphon GBT4400 Handheld Barcode Reader
    • Base Station
    • Cable
    • Gryphon GBT4400 Handheld Barcode Reader
    • Base Station
    • Cable

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 3 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

The Datalogic GBT4430-HC-BTK1 is also known as Data Logic DTL-GBT4430HCBTK1 or GBT4430HCBTK1 .
